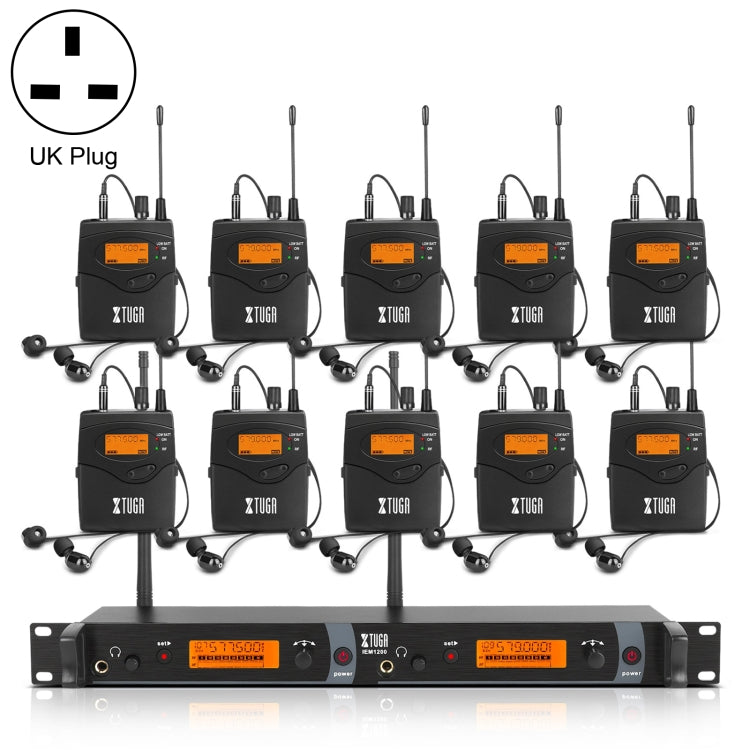

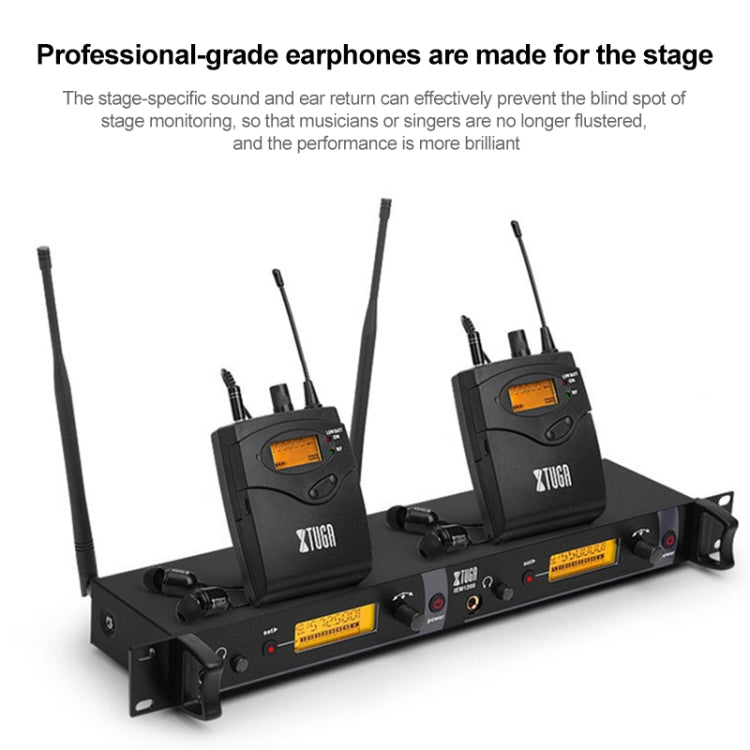

Wireless transmitter and receiver system designed for in-ear monitoring during stage performances. It features UHF wireless technology for high-quality audio transmission.
Product type: Microphone
Brand: XTUGA
Compatibility: XTUGA IEM1200
Material: Metal
Key feature: UHF wireless in-ear monitoring
Color/Variant: UK Plug
Intended use: Stage performances
UHF wireless in-ear monitoring system
Built-in limiter circuit to eliminate distortion at excessive input levels
Sturdy and durable metal panel and body shell

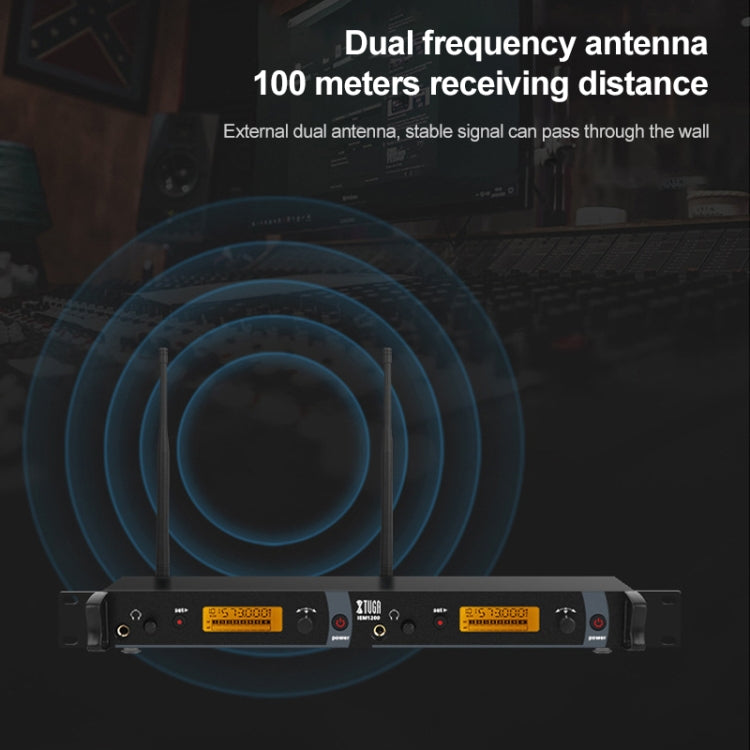

Wireless range: 80 to 100m
Frequency range: 550-580MHz
Improved signal-to-noise ratio for excellent anti-interference ability
Transmitter case specification: Standard 1U Case
Transmitter material: Metal panel and body housing case
Transmitter frequency range: UHF 550-580MHz
Transmitter frequency interval: 25MHz
Transmit output power: 100mW (50 ohms)
Audio input: XLR & 6.3mm duplex outlet
Earphone output: 6.3mm jack, volume adjustable
Headphone load impedance: Greater than or equal to 16 ohms
Voltage current consumption: DC 12V 250mA
Antenna interface: TNC jack (50 ohms)
Transmitter size: 48 x 10.5 x 4.3cm

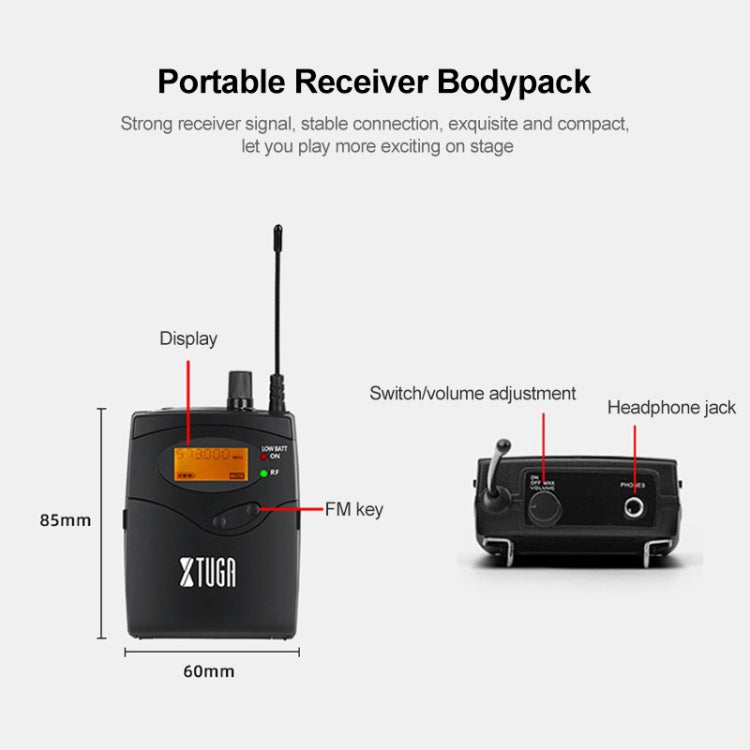

Receiver oscillation mode: PLL synthesized Frequency
Receiver frequency range: UHF 550-580MHz (Corresponding transmitter frequency)
Receiver frequency interval: 25MHz
Receiver operate mode: Manual adjust
Receiver receiving mode: Single tuning
Receiver comprehensive frequency response: 80Hz~15KHz +/-3dB
Receiver output power (30 ohms): 2 x 35mW
Receiver headphone load impedance: Greater than or equal to 16 ohms
Receiver earphone output: 3.5mm jack
Receiver power supply: 2 x AA batteries (not included)
