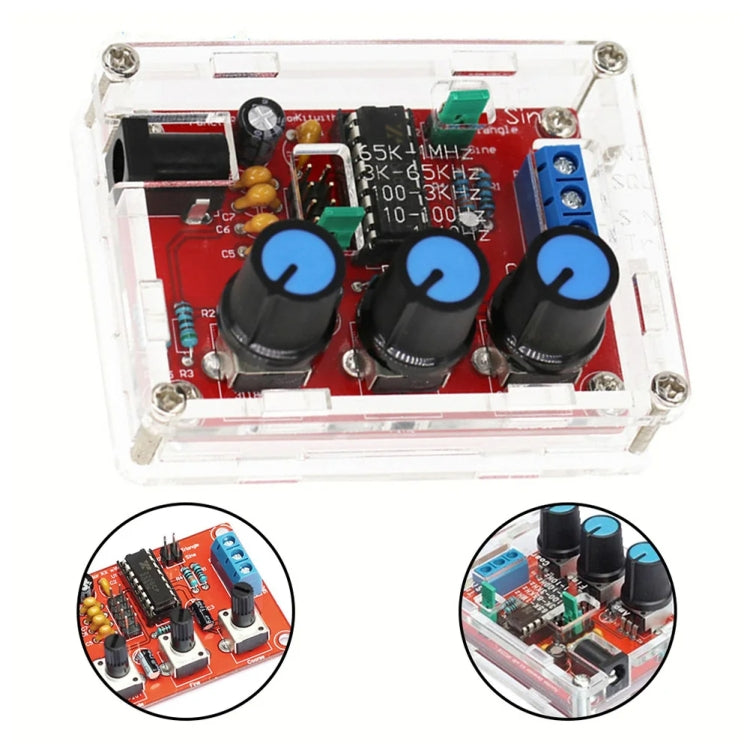

The XR2206 High Precision Signal Generator DIY Kit is designed to generate sine, triangle, and square waves for various DIY projects. It operates within a frequency range of 1Hz to 1MHz and requires a power supply voltage of 9-12VDC.
Product type: Boards & Shields
Compatibility: XR2206 Signal Generator
Power supply voltage: 9-12VDC input
Waveforms: square, sine, and triangle waves
Impedance: about 600 ohms
Frequency: 1Hz-1MHz
Sine wave amplitude: 0-3V (9V DC input)
Sine wave distortion: Less than 1 percent (at 1kHz)
Sine wave flatness: +0.05dB 1Hz-100kHz
Square wave amplitude: 8V (no load 9V DC input)
Square wave rise time: Less than 50ns (at 1kHz)
Square wave fall time: less than 30ns (at 1kHz)
Square wave symmetry: Less than 5 percent (at 1kHz)
Triangle wave amplitude: 0-3V (at 9V DC input)
Triangle wave linearity: Less than 1 percent (up to 100kHz)
