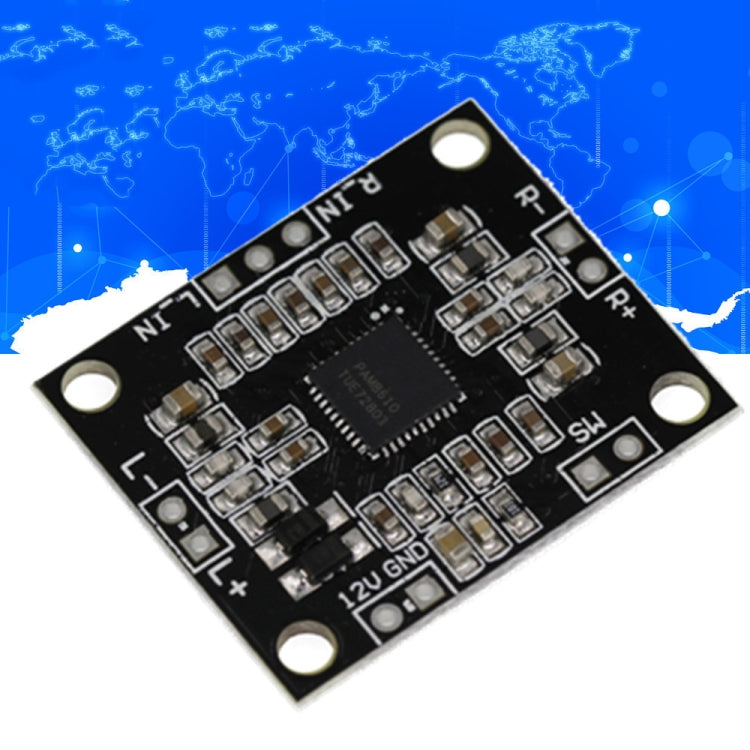

XH-M181 PAM8610 Digital Power Amplifier Board 2x15W Two-channel Amplifier Board
XH-M181 PAM8610 Digital Power Amplifier Board 2x15W Two-channel Amplifier Board
No reviews
Regular price
£9.90
Regular price
Sale price
£9.90
Free Shipping Tracked
Estimated delivery: Dec 2 - Dec 12
Quantity
Couldn't load pickup availability
✓ Your Purchase is Protected
Join 40,000+ happy customers who shop risk-free
Free Worldwide Shipping Tracked
Ships in 1-3 days • Save £8.99
6-Month Guarantee Protected
Manufacturing faults covered
30-Day Easy Returns Risk-Free
Changed your mind? Full refund
Secure Checkout SSL
Your payment info is protected
✓ 40,000+ customers trust us with their purchases
1. The power amplifier board is designed with the official standard circuit, and the chip selection uses the original Class D power amplifier chip.
2. The power amplifier has super power, and can output 10W+10W power under the condition of 12V power supply. The chip does not need a heat sink, and it also has overheating, overcurrent and other protection functions
3. This board has a switch function, short the SW to turn off the power amplifier.
4. Specification model: XH-M181
5. Chip model: PAM8610
6. Working mode: Class D (PWM modulation type)
7. Power supply range: DC 6V~15V (self-protection)
8. Recommended voltage: DC 12V2A
9. Frequency response: 20HZ-15KHZ
10. Channel type: dual channel
11. Static current: 20mA (DC 12V)
12. Signal-to-noise ratio: 90%
13. Recommended speaker: 10~100W
14. Input impedance: 15K
15. Output impedance: 4~8Ω
16. Output power: 10W x 2 (8Ω) 15W x 2 (4Ω)
17. Harmonic distortion: less than 0.1%
