The Waveshare ESP32-S3 7-Inch 800 X 480 Touch Display Development Board is a display module designed for development use. It features a 7-inch capacitive touch screen with a resolution of 800 x 480 pixels.
- Product type: LCD & LED Display Module
- Compatibility: ESP32-S3
- Material: Not specified

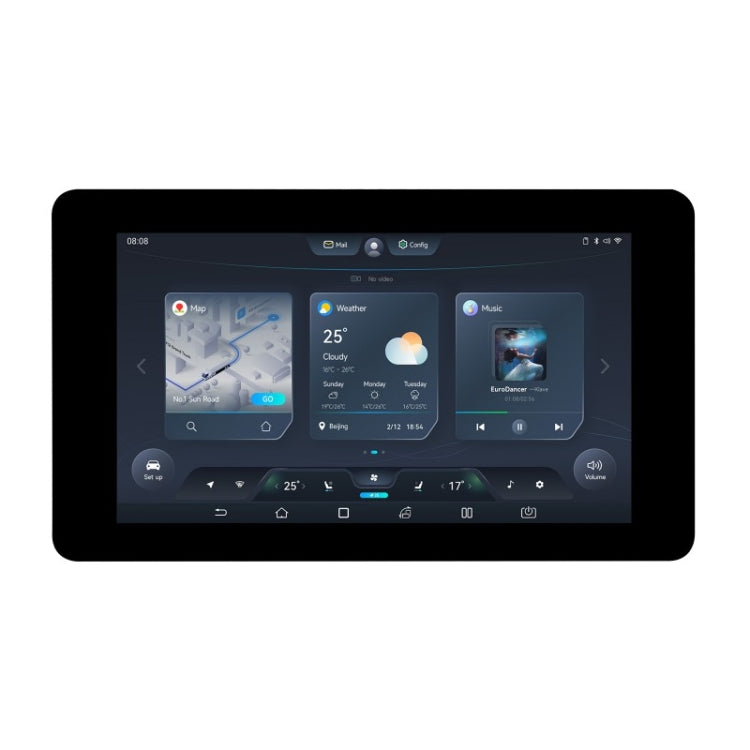

- Key feature: 7-inch capacitive touch screen
- Color/Variant: Not specified
- Intended use: Development use
- Category: Arduino & SCM Supplies
- Processor: Xtensa 32-bit LX7 dual-core, up to 240MHz
- Wi-Fi: 2.4 GHz (802.11 b/g/n)
- Bluetooth: Bluetooth5 (LE), onboard antenna
- Memory: 512KB SRAM, 384KB ROM, 8 MB Flash, 8 MB PSRAM
- Touch: 800×480 resolution, 65K color, 5-point touch, I2C interface

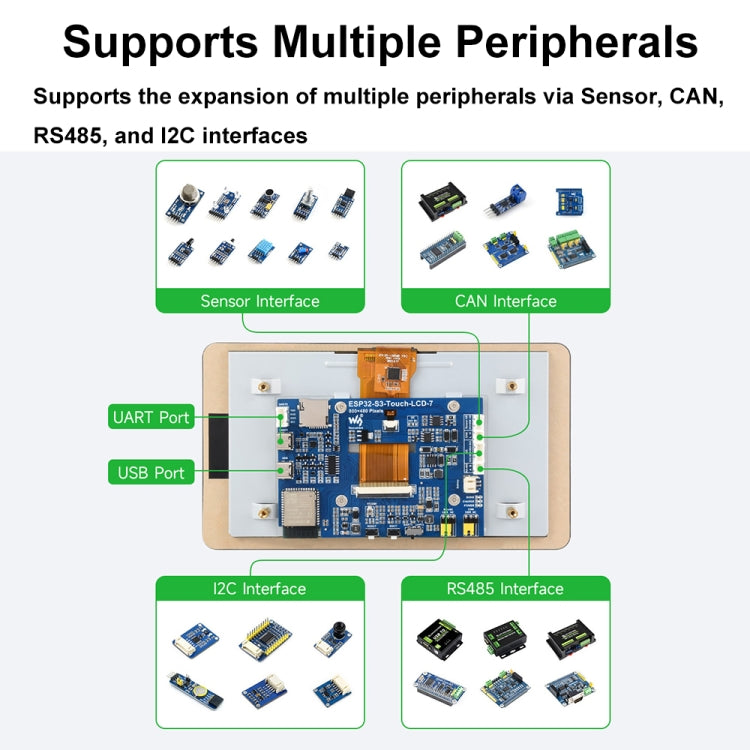

- Connectivity: Onboard CAN, RS485, I2C interface, Micro SD card holder, USB serial port
- Power: Flexible clock, individual module power supply settings
- Application areas: HMI human-machine interface, LVGL GUI development
- Product size: 192.96 x 110.76mm
- Weight: 291g
