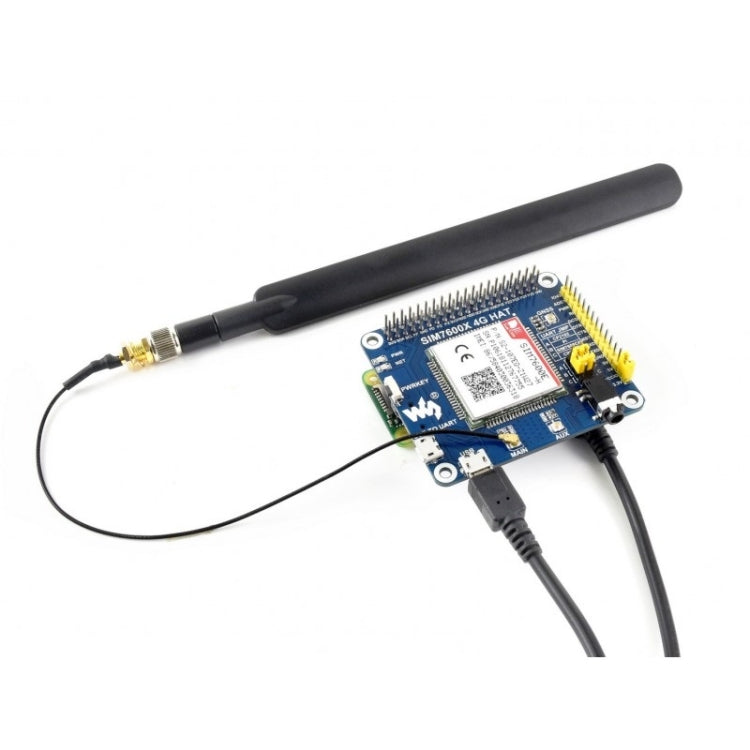

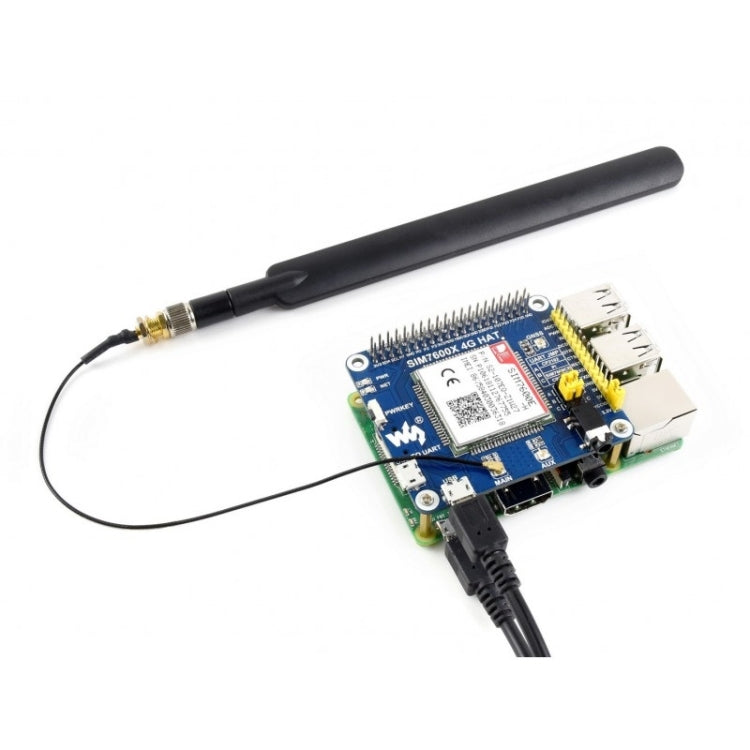

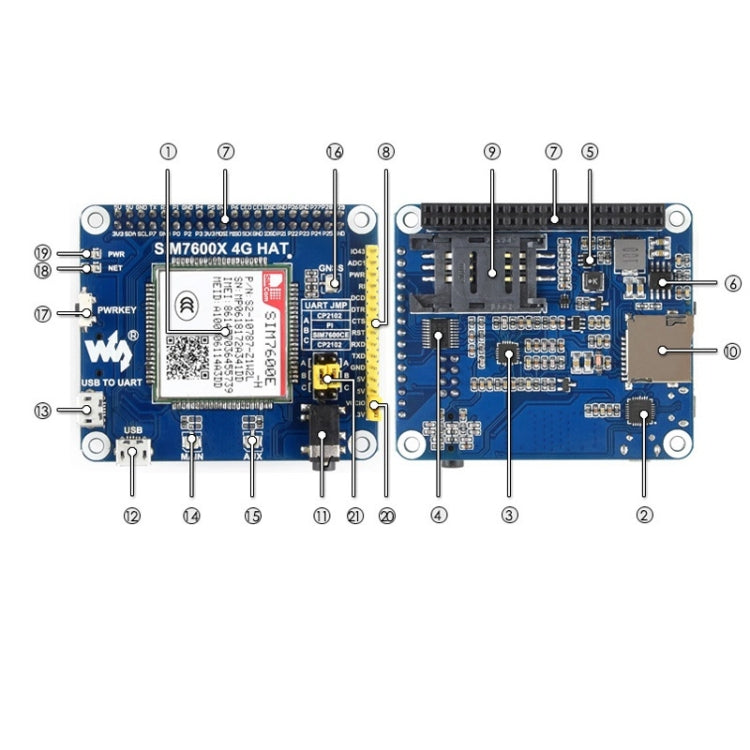

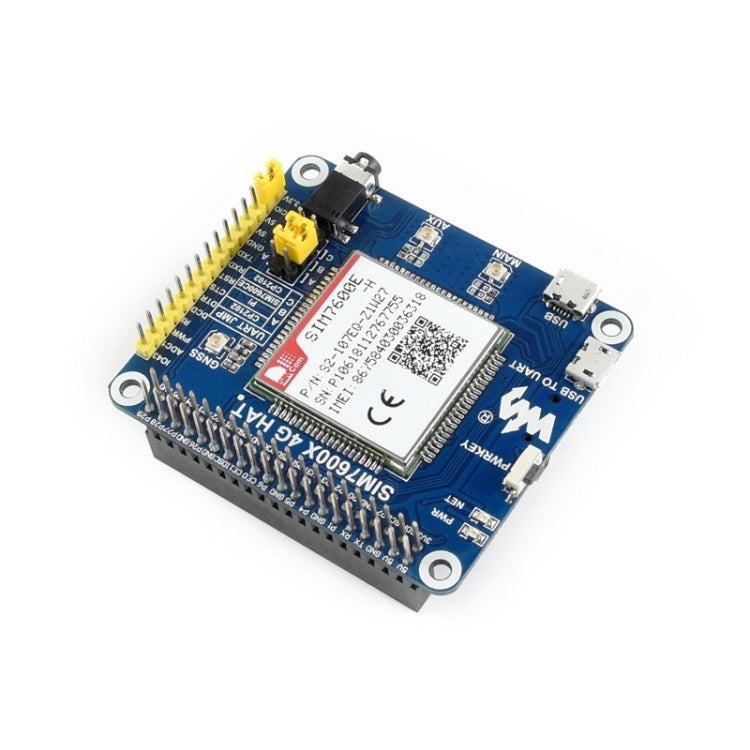

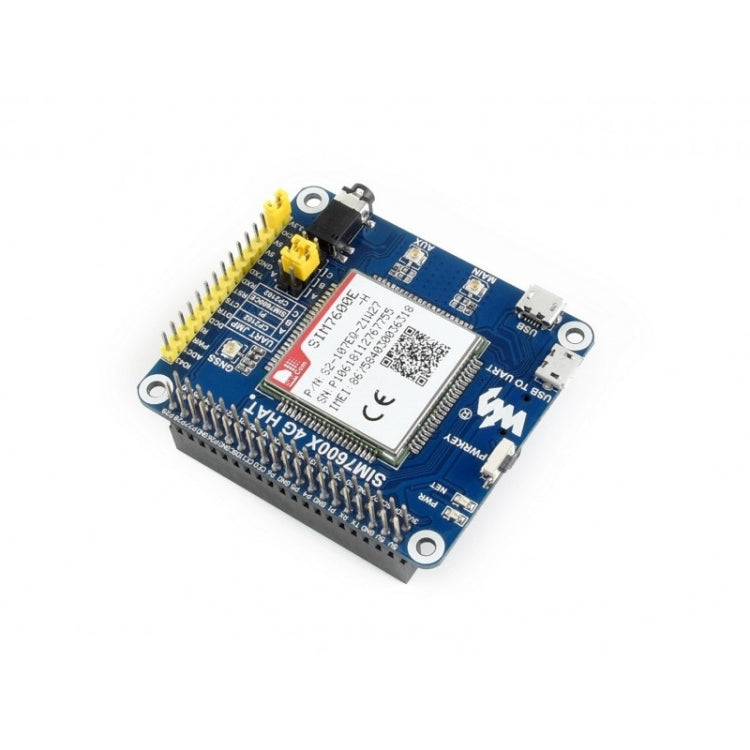

The Waveshare 4G/3G/GNSS HAT is a communication and GNSS positioning module designed for Raspberry Pi. It supports LTE CAT4 with a maximum downlink speed of 150Mbps.
- Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
- Supports dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP

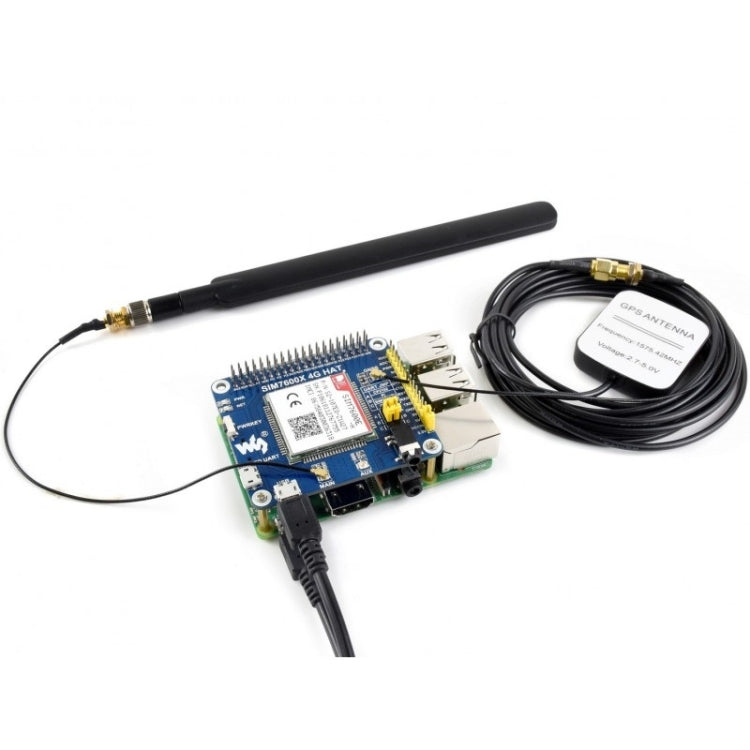

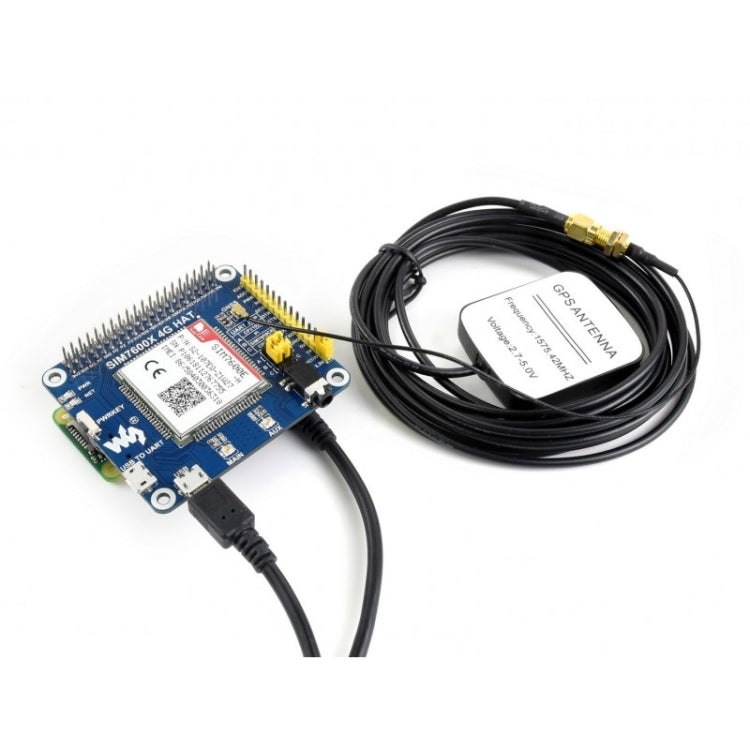

- Supports GPS, BeiDou, Glonass, LBS base station positioning
- Onboard USB interface for testing AT Commands and GPS data
- Onboard CP2102 USB to UART converter for serial debugging
- Breakout UART control pins for connection with Arduino/STM32

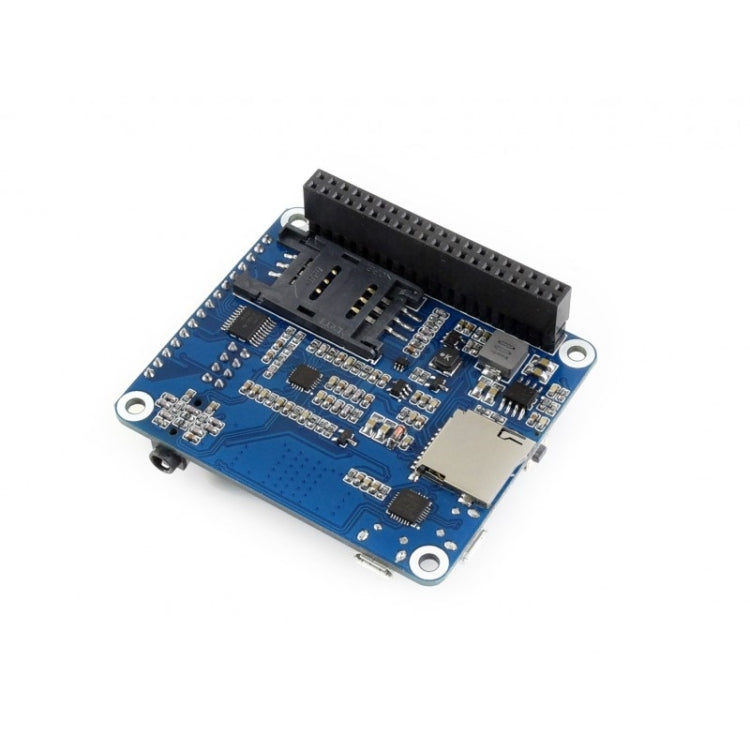

- SIM card slot supports 1.8V/3V SIM cards
- Onboard audio jack and audio decoder for telephone calls
- 2x LED indicators for monitoring status
- Onboard voltage translator configurable to 3.3V or 5V
- Baudrate: 300bps ~ 4Mbps (default: 115200bps)
- Autobauding baudrate: 9600bps ~ 115200bps
- Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
- Supports SIM application toolkit: SAT Class 3, USAT
- Includes development resources and manual for Raspberry Pi/Arduino/STM32
- Operating voltage: 5V/3.3V (configured via jumper)
- Operating temperature: -30°C to 80°C
- Storage temperature: -45°C to 90°C

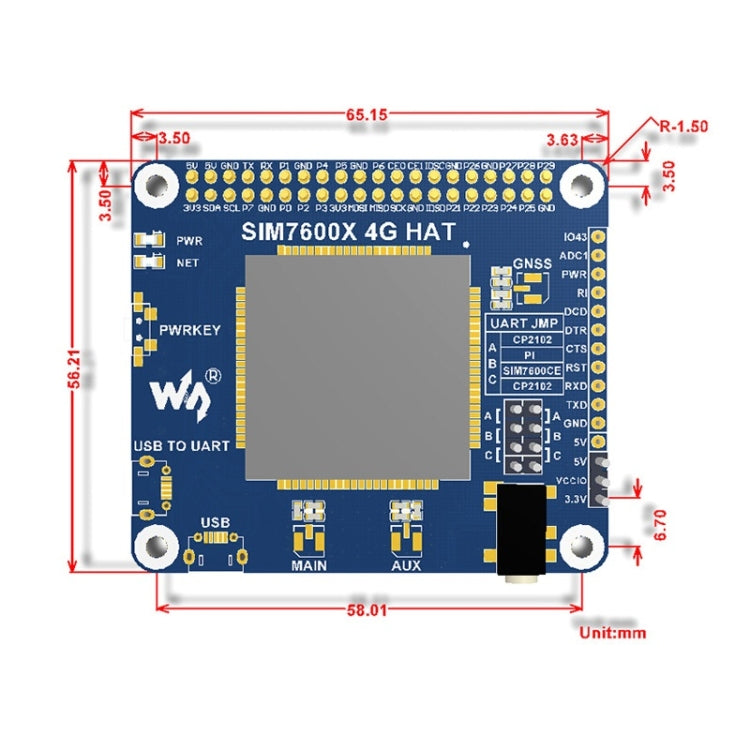

- Dimensions: 56.21mm x 65.15mm
