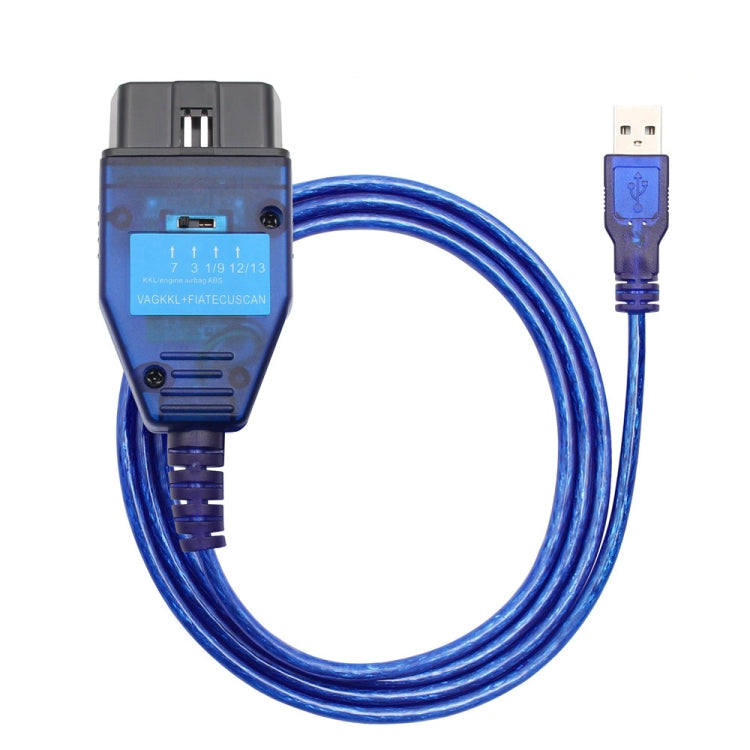

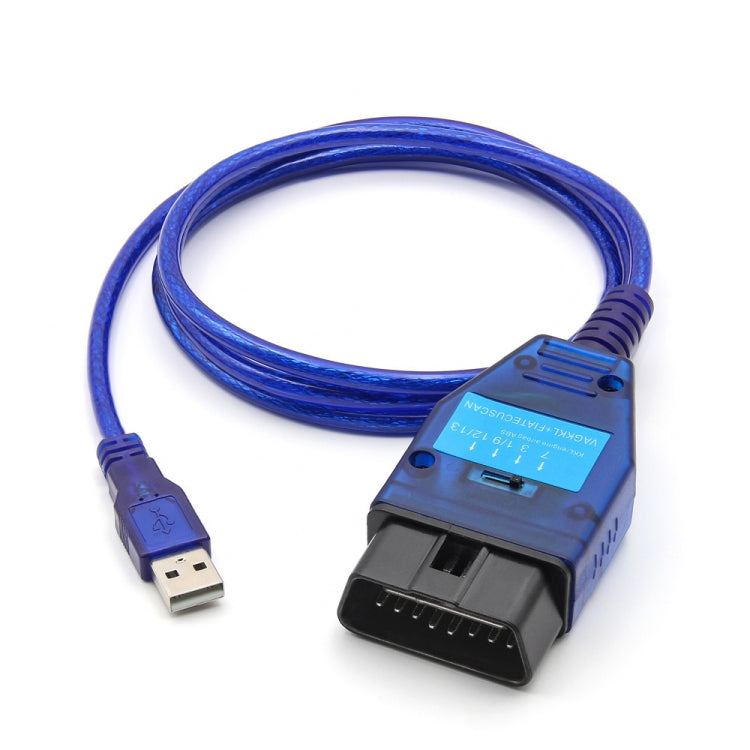

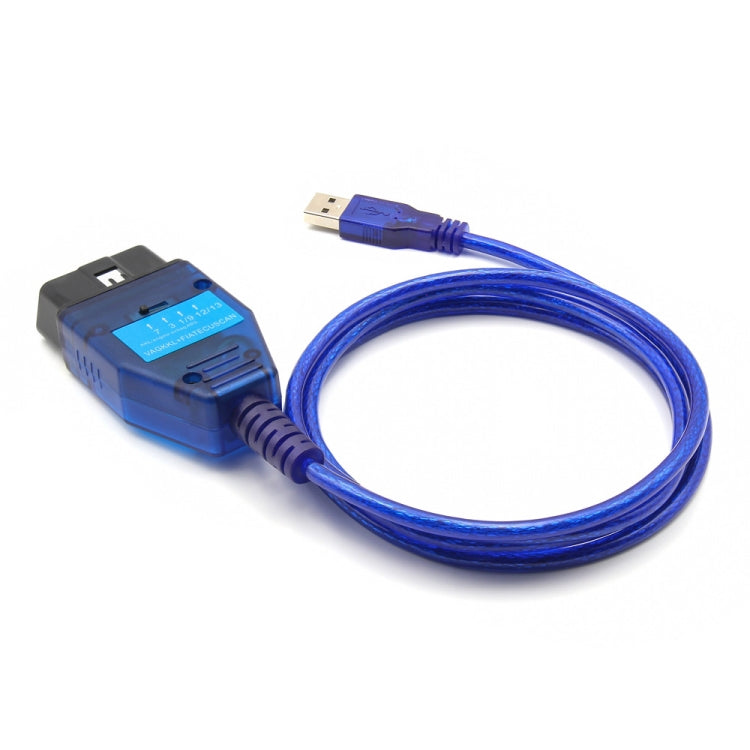

USB Cable KKL FT232RQ ABS Engine Gearbox EPS Car Auto Scanner Scan Tool for Fiat Ecuscan

• Product type: Cables & Connectors
• Compatibility: Fiat Ecuscan
• Material: ABS
• Key feature: Compatible with multiple diagnostic software
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Diagnostic Scan Tools

1. Drivers for Windows XP, Vista & Windows 7
2. Compatible with many diagnostic software packages including: For Fiat ECU Scan, For VAGKKL409.13

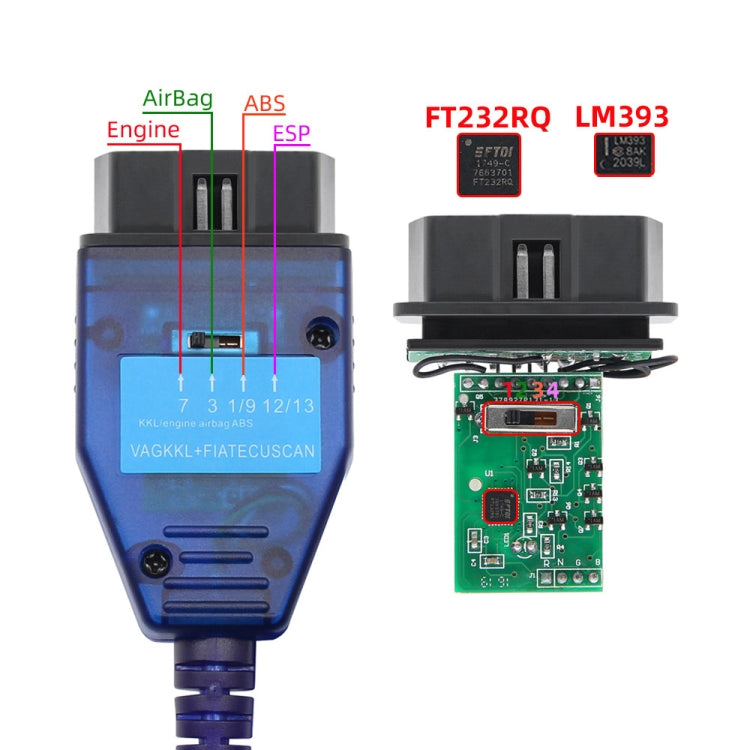

3. Cable adapted to include a 4 way switch to access different ECUs:
Position 1: Engine ECU (read / clear engine faults)
Position 2: For AirBag ECU (read / clear airbag faults)
Position 3: ABS ECU (read / clear brake faults)
Position 4: ESP ECU (read / clear stability faults)
pin 1: ABS
pin 3: Airbag
pin 7: Engine/Gearbox
pin 9: ESP
4. How to use:
Plug in cable to computer / laptop
Install cable drivers (provided on CD)
Make any additional settings which your diagnostic software suggests
Set the switch on the VAG to diagnose the desired ECU
Plug cable into car's OBD connector
Connect using the diagnostic software
5. Package Included: Vag kkl + ECU scan Cable x 1, CD x 1
