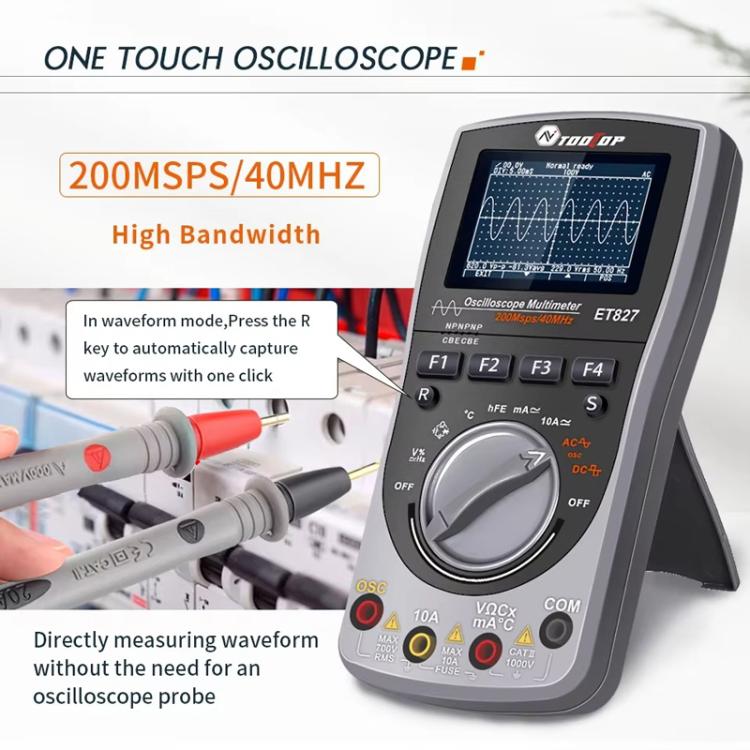

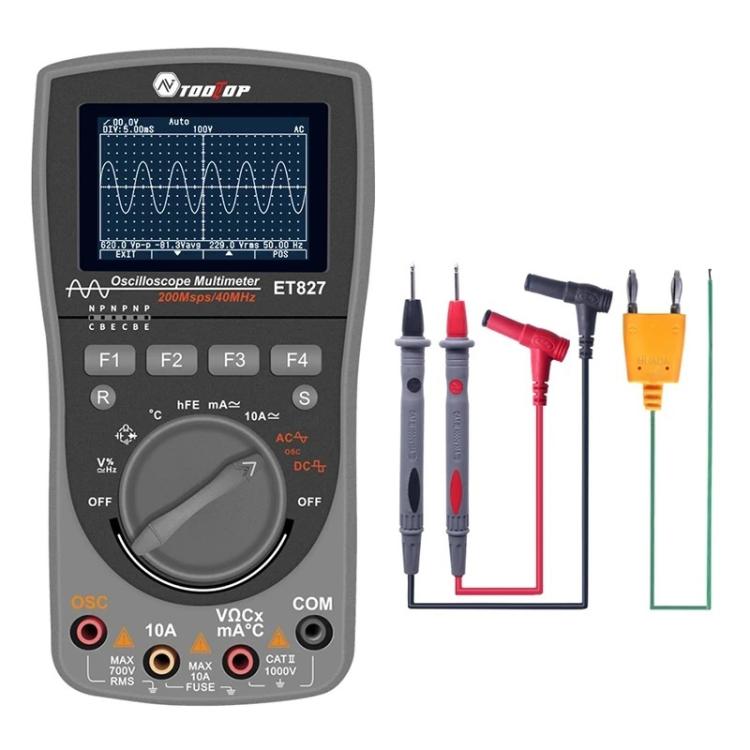

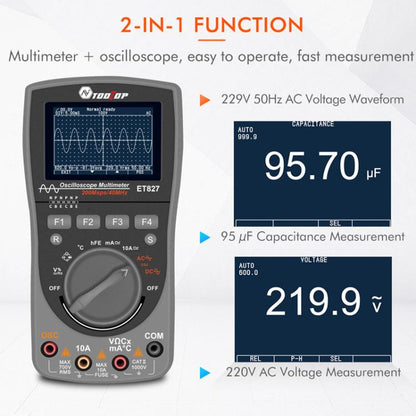

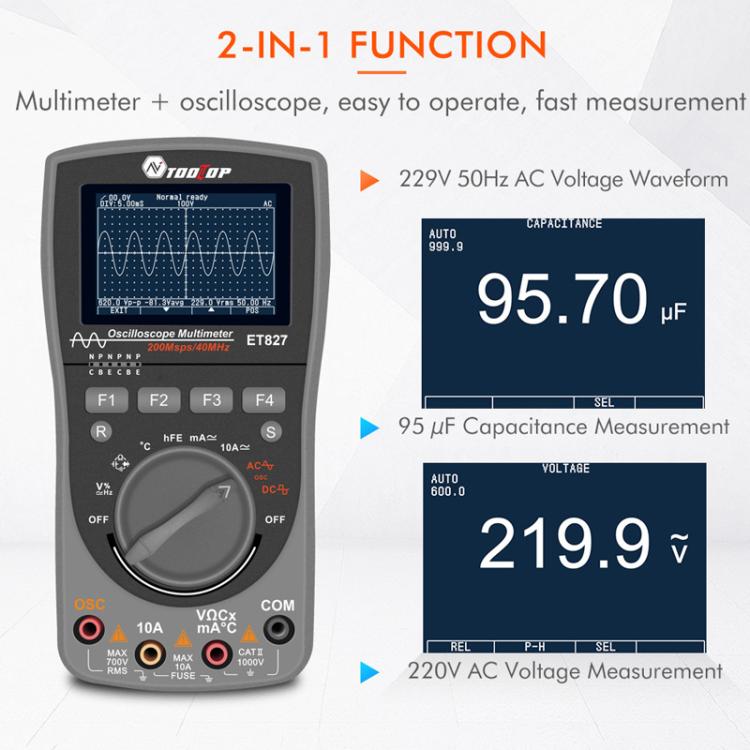

Digital Multimeter and Oscilloscope combination designed for everyday use. It features a 200Msps sampling rate and a variety of measurement functions.
- Product type: Digital Multimeter
- Compatibility: Oscilloscope
- Material: Durable plastic
- Color/Variant: Black
- Key feature: 200Msps sampling rate

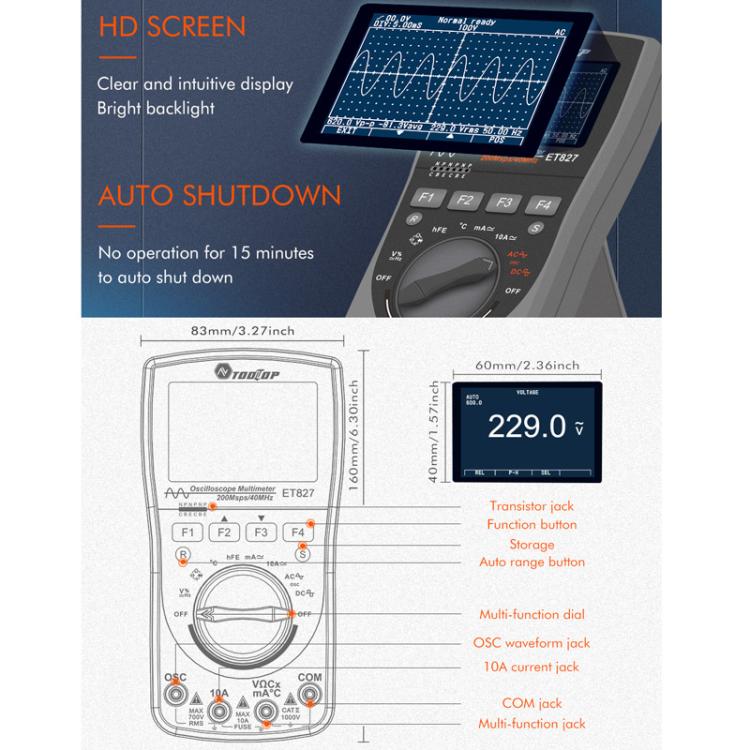

- Display: 240 x 160 pixel LCD
- Backlight: black screen with white backlight
- Impedance: 10 megohm
- Battery: AA battery x 3 (not included)
- Auto power off: no operation within 15 minutes

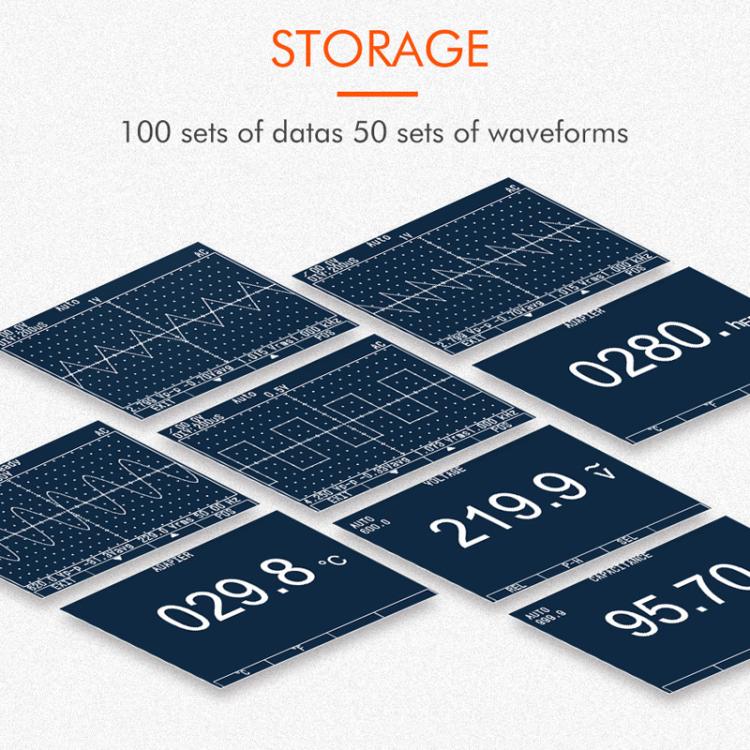

- Storage: 100 sets of data, 50 waveforms
- Operating environment: 0 - 40 degrees Celsius, less than 75%RH
- Storage environment: -10 - 60 degrees Celsius, less than 90%RH
- Display area: about 6 x 4cm
- Dimensions: about 8.3 x 16 x 3.2cm
- Weight: about 210g

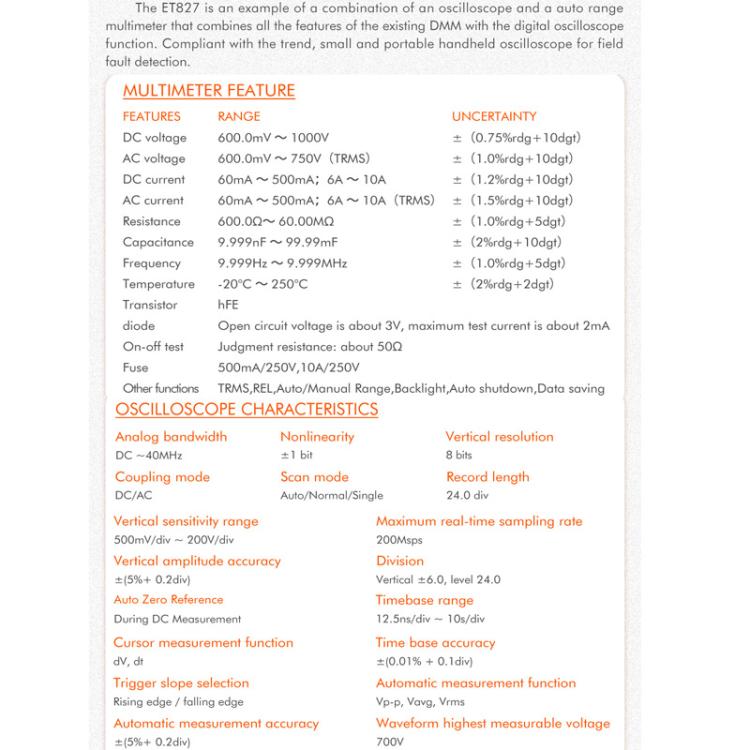

- Analog bandwidth: 40MHz
- Nonlinearity: +/-1 bit
- Vertical resolution: 8 bits

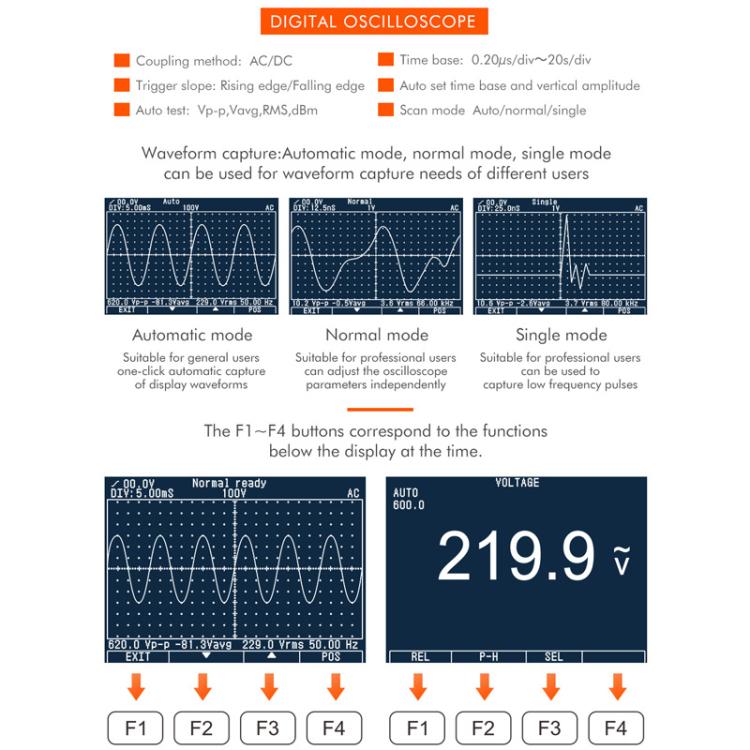

- Coupling mode: AC/DC

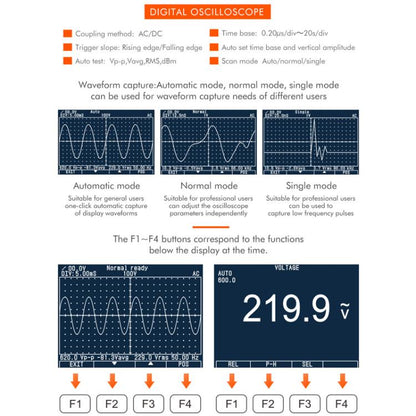

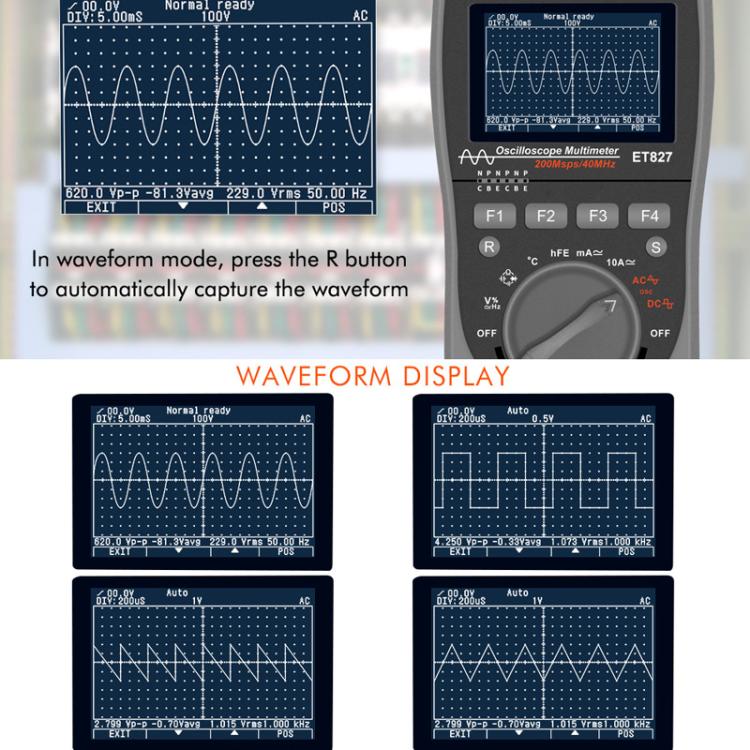

- Sweep mode: auto / normal / single
- Record length: 24.0 div
- Vertical sensitivity range: 500mV/div - 200V/div
- Maximum real-time sampling rate: 200Msps
- Vertical amplitude accuracy: +/-(5%+ 0.2div)
- Scale: vertical +/-6.0, horizontal 24.0
- Automatic zero reference: DC measurement
- Time base range: 12.5ns/div - 10s/div
- Cursor measurement function: dV, dt
- Time base accuracy: +/-(0.01%+0.1div)
- Trigger slope selection: rising edge/falling edge
- Automatic measurement function: peak-to-peak value, average value, effective value
- Automatic measurement accuracy: +/-(5%+0.2div)
- Highest measurable voltage of the waveform: 700V
- DC voltage range: 600mV - 1000V +/-(0.75%rdg+10dgt)
- AC voltage range: 600mV - 750V(TRMS) +/-(1.0%rdg+10dgt)
- DC current range: 60mA - 500mA, 6A - 10A +/-(1.2%rdg+10dgt)
- AC current range: 60mA - 500mA, 6A - 10A(TRMS) +/-(1.5%rdg+10dgt)
- Resistance range: 600.0 ohms - 60.00 megohms +/-(1.0% reading + 5 digits)
- Capacitance range: 9.999nF - 99.99mF +/-(2% reading + 10 digits)
- Frequency range: 9.999Hz - 9.999MHz +/-(1.0% reading + 5 digits)
- Temperature range: -20 degrees Celsius - 250 degrees Celsius +/-(2% reading + 10 digits)
- Transistor: hFE
- Diode: open circuit voltage is 3V, maximum test current is 2mA
- Switch test: judge resistance is about 50 ohms

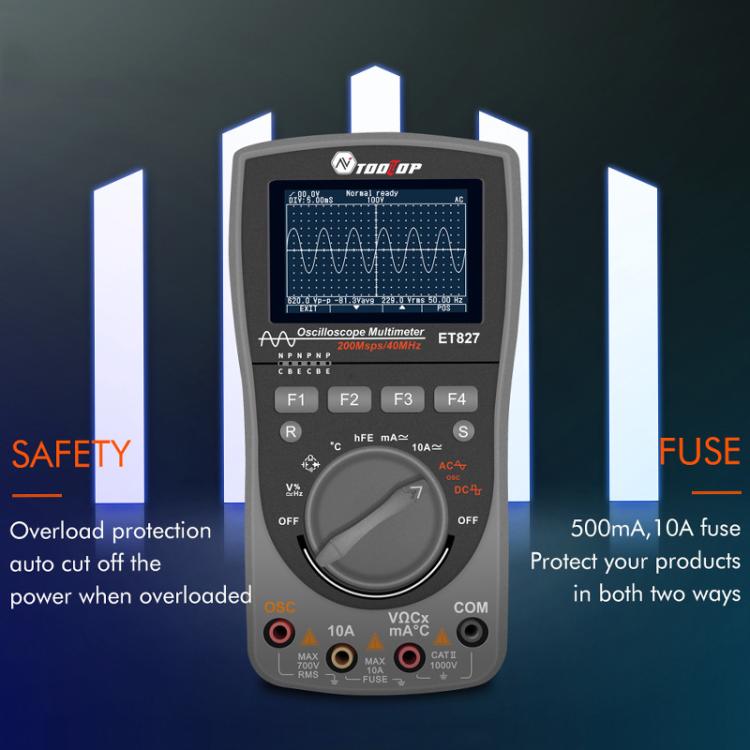

- Fuse: 500mA/250V 10A/250V

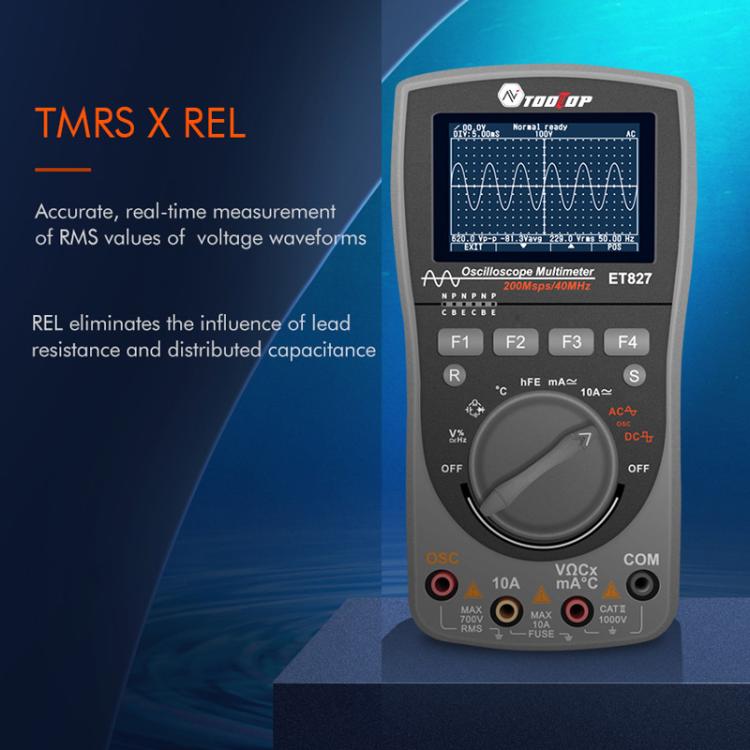

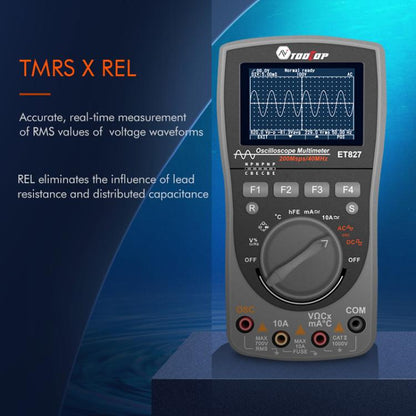

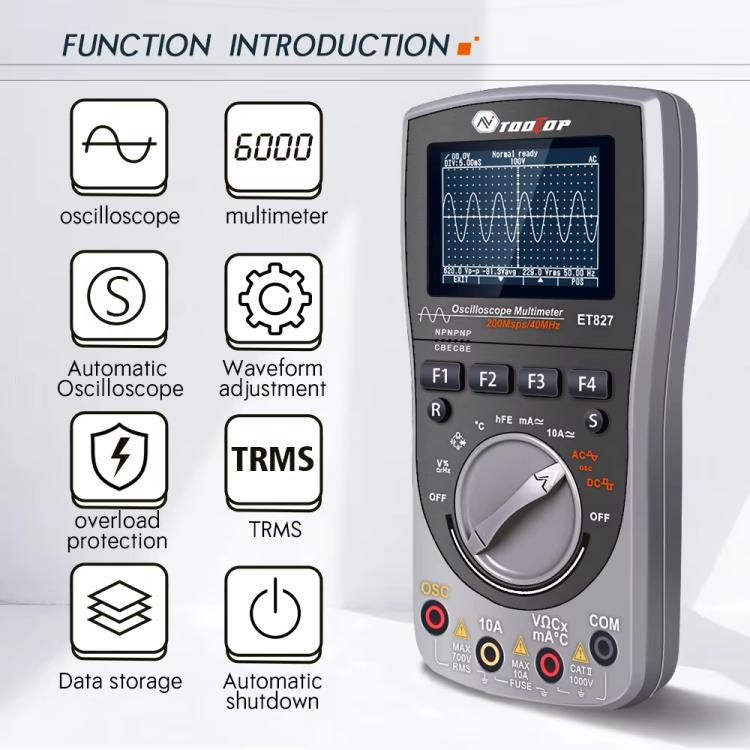

- Other functions: true RMS measurement, relative measurement, automatic/manual range, backlight, automatic shutdown, data storage
