OMCH LJ18A3-8-Z/BX DC NPN 3-Wire Normally Open Sensors Inductive M18 Proximity Switch

• Product type: Switch
• Brand: OMCH
• Compatibility: M18 Proximity Sensor
• Material: Nickel-plated brass
• Key feature: Detects metal objects
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: DIY Parts & Components

1. Output form: DC NPN three-wire normally open
2. Detection distance: about 8mm
3. Detecting object: metal object
4. Current: 300mA
5. Power supply voltage: DC12-24V (6-36V)
6. Weight: about 86.2 g
7. Wire length: about 1.1m
Features:

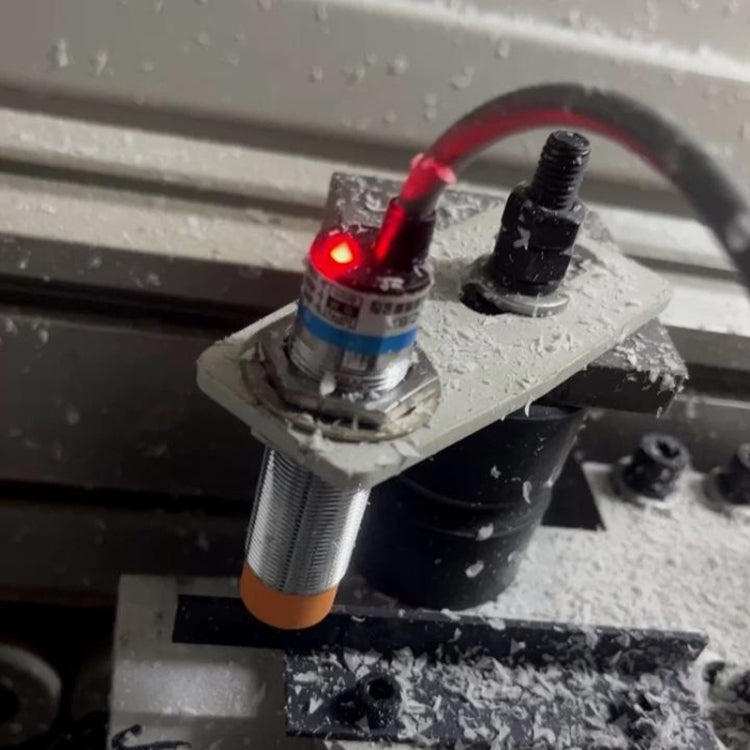

1. Proximity switch detects metal objects, the detection distance is about 8mm (when the proximity switch detects metal objects, the red light at the end will light up)
2. Built-in smart sensor chip on the top of the product, more sensitive to detect metal objects
3. Threaded design, solid and reliable, nickel-plated brass
4. Selection of wire, the standard line length of about 1.1 meters, the application of thicker cable, durable, good conductivity

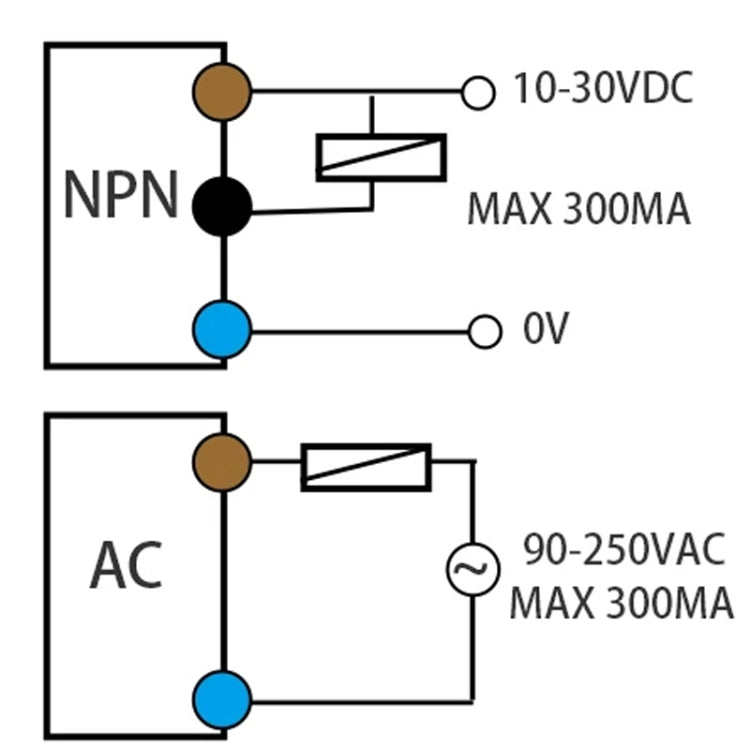

5. NPN: indicates a common positive voltage, negative voltage output; NPN NO: indicates that the normal is normally open, when the object is detected, the black line outputs a negative voltage signal
