Product details

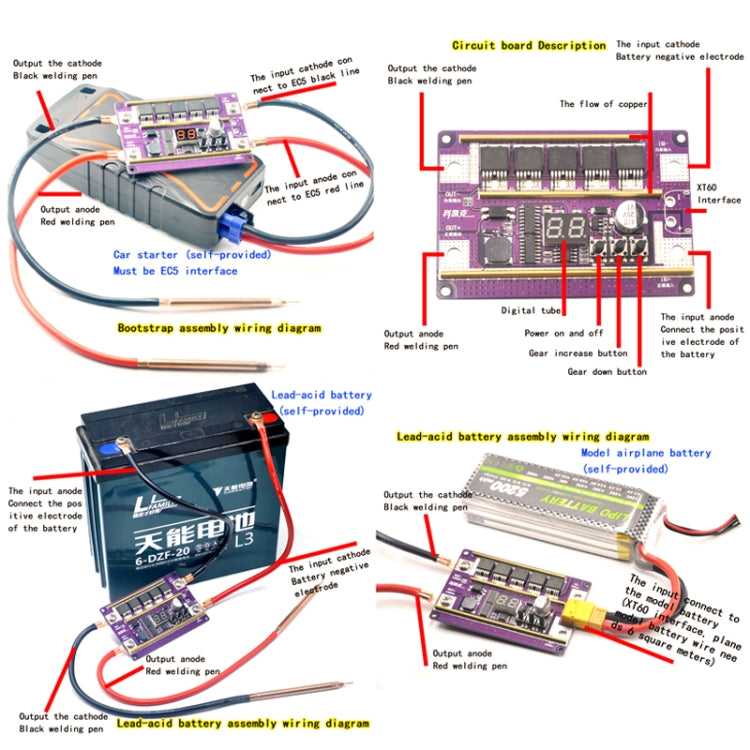

The Lead-Acid Battery Version 12V Digital Display DIY Battery Spot Welding Machine Pen Control is designed for DIY battery projects. It is compatible with 12V lead-acid batteries and features a high-power output design.
- Product type: Others
- Compatibility: 12V lead-acid batteries
- Key feature: High-power output design
- Color/Variant: Main Board
- Category: Soldering Tools & Accessories
- Can spot weld 0.05-0.2 mm nickel plating sheet with 6 square pen
- Can spot weld 0.05-0.3 mm nickel plating sheet with 10 square pen
- 99 adjustable output power
- Welding can achieve thousands of points on nickel/nickel plate
- 5 MOS transistors with current reaching 2390A
- Welding uses high current and high temperature for rapid melting
- Equipped with two copper bars for increased over-current capability
- Supports welding of 0.05-0.3 mm nickel sheet, iron sheet, and stainless steel sheet
- Can be used for spot welding of lithium cylindrical batteries and ni-mh batteries
- Display: digital tube display
- Self-contained power supply: old lead-acid battery 12V20AH-100AH (new battery cannot exceed 45AH)
- 20AH old lead-acid battery lifespan: up to 1 year
- Alternative power supply: 4-5 wear super-faraday capacitors
- Do not use: switching power supply, transformer, charger, water battery, charging treasure, power supply spot welding machine
- Control Board operating voltage: 9-16V
- Control Board operating current: 90-180A
