Product Details

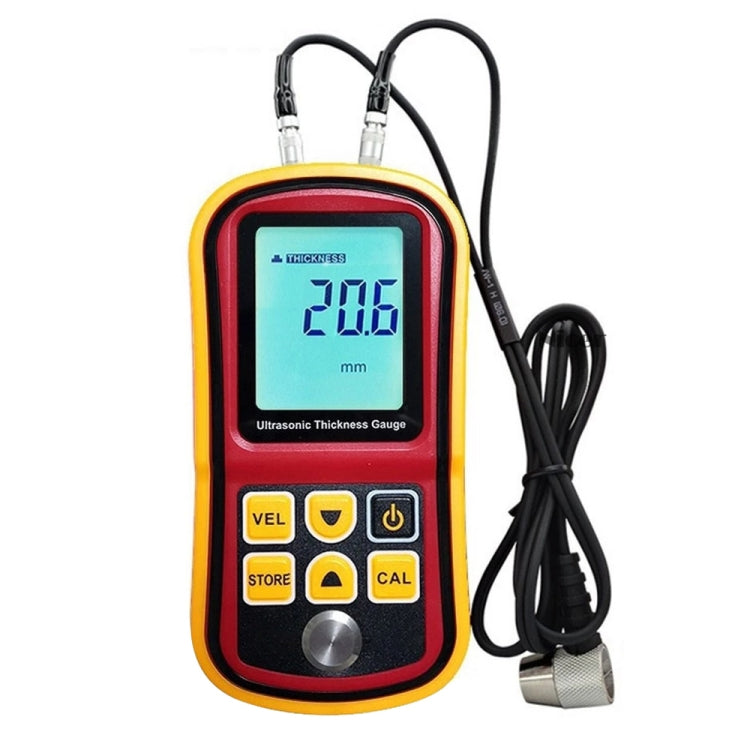

The GM-100 Ultrasonic Thickness Meter Tester Gauge measures the thickness of materials using ultrasonic waves. It is used in various industrial applications to monitor material thickness and sound velocity.
- Measurement range: 1.20 ~ 225.00 mm (0.047 ~ 8.86 inch)
- Ultrasonic wave velocity measurement: 1000 m/s to 9999 m/s

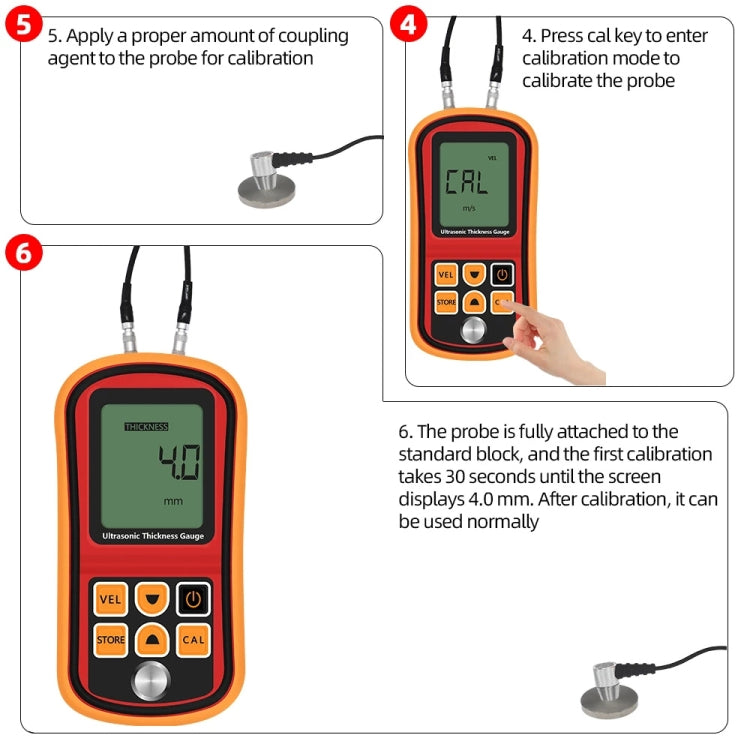

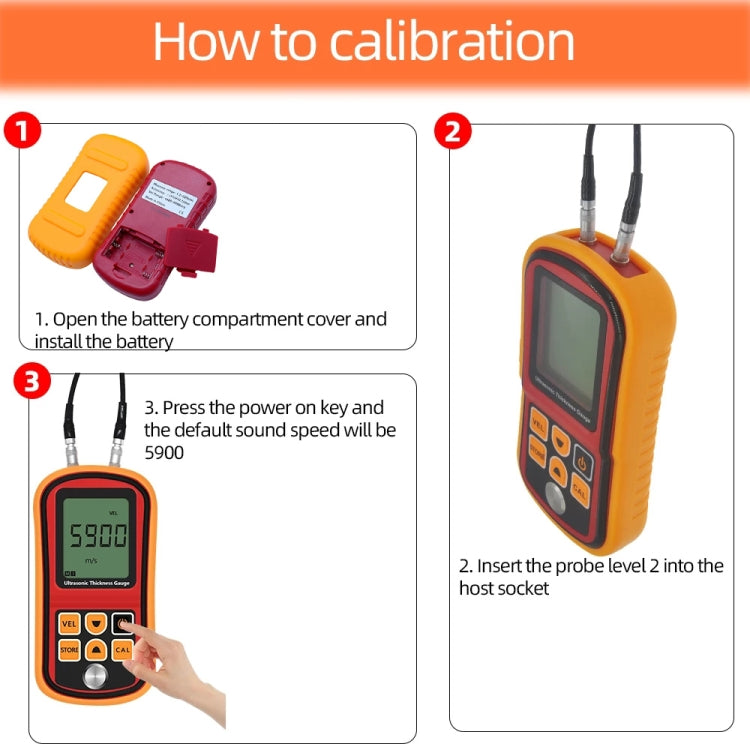

- Auto calibration feature
- Auto linear compensation for precision
- Quick adjustment keys for sound velocity/thickness
- Coupling status indication
- 10 thickness measurement storage and recall function
- Sound velocity measurement with given thickness
- 12 adjustable sound velocities for different materials
- Low battery indication
- Auto power off mode
- Long life keys: more than 10000 uses
- Memory retains settings when power is off
- LCD digital display: 4 digits
- Minimum display unit: 0.1 mm
- Working frequency: 5 MHz
- Minimum limit for tube measurement: 20mm x 3mm (Steel)
- Operating temperature: 0 ~ 40 degrees Celsius
- Power supply: 3 x 1.5 AAA alkaline batteries (not included)
- Size: 150 x 76 x 30 mm
- Note: Couplant not included
