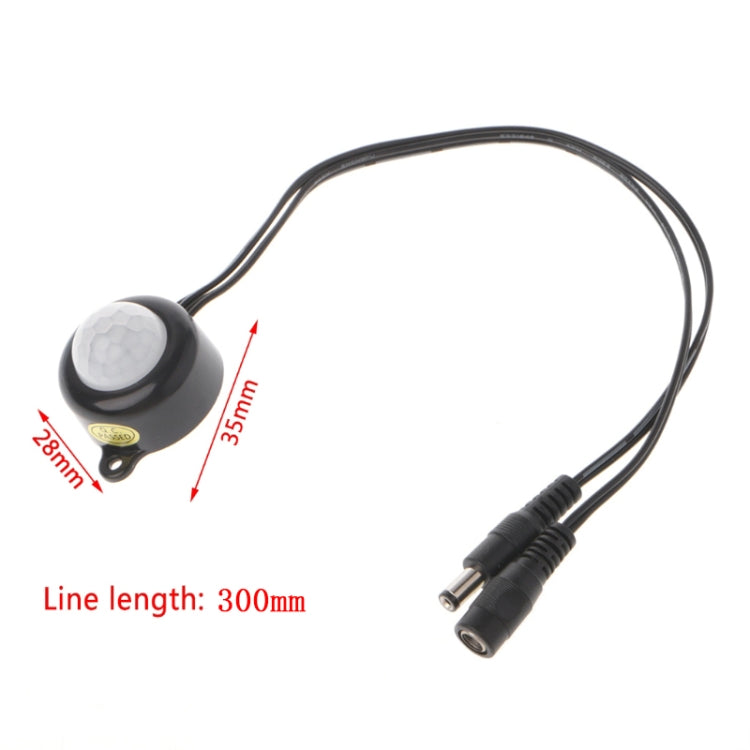

DC 5-24V/5A With Plug for LED Light Bar Human Body Infrared PIR Motion Sensor Switch(White)

The sensor switch is designed for automatic lighting control using infrared motion detection. It activates the load when motion is detected within its sensing range.

• Product type: Sensor LED Lights
• Compatibility: DC 5-24V/5A
• Material: Plastic
• Key feature: Infrared motion detection
• Color/Variant: White
• Intended use: Automatic lighting control
• Model: TDL-2025-B
• Working voltage: 12V
• Output current: 5A
• Time range: 15s (adjustable)
• Working temperature: -15 to 50 degrees Celsius
• Quiescent current: <50μA
• Sensing range: 3-5m
• Induction distance: 5-7m
• Induction angle: 140-degree cone angle
• Interface type: DC interface
• Package includes: 1x switch sensor, 1x tape, 1x screw
