Product details

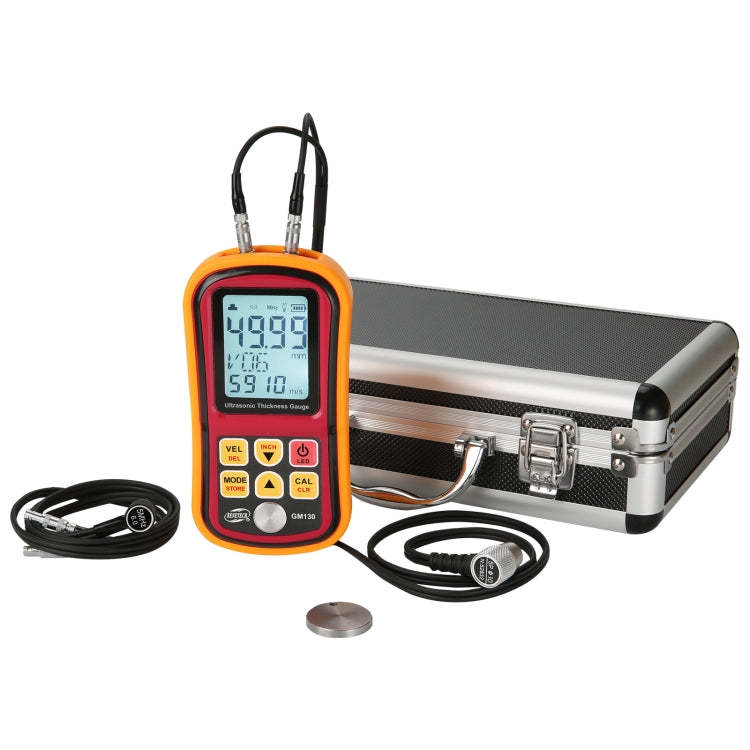

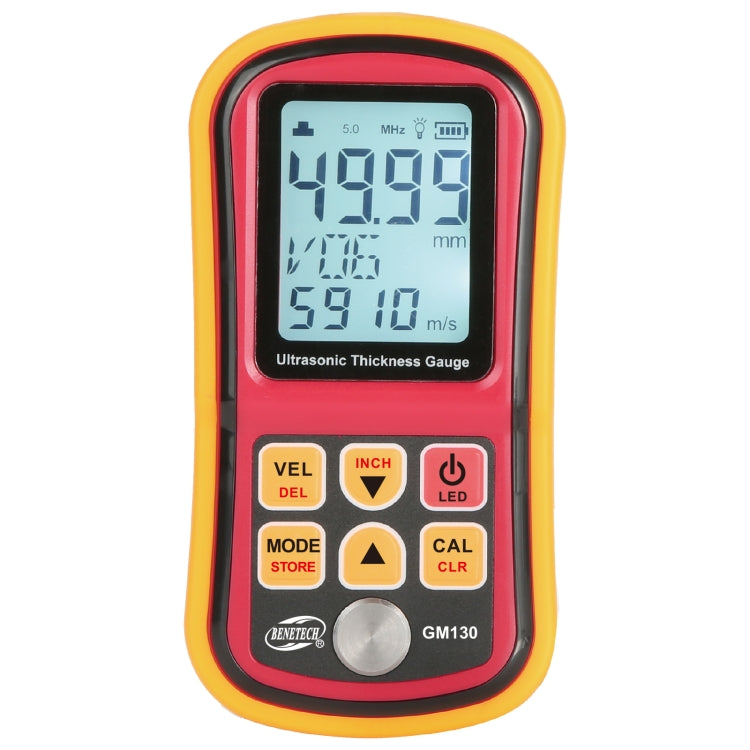

Ultrasonic thickness meter designed for measuring material thickness in industrial applications. It provides precise measurements across a range of materials.
- Product type: Coating Thickness Gauge
- Material: Durable plastic
- Intelligent handheld design
- Measuring range: 1.0~300mm
- Accuracy: +/-(1%H+0.1)mm
- Resolution: 0.01mm (1.00 to 99.99mm), 0.1mm (100 to 300mm)
- Sound Velocity Range: 1000~9999m/s
- Working Frequency: 5MHZ
- Tube Measuring: Diameter 15 x 2.0mm (6mm transducer), Diameter 20 x 3.0mm (10mm transducer)
- Power Supply: 3 x 1.5V AAA Batteries (Not Included)
- Auto calibration
- Sound velocity measurement with a given thickness
- 12 sound velocities for different materials
- Coupling status indication
- Preset 12 thickness measurement data store and recall
- Thickness alarm setup
- Backlight display
- Low battery indication
- Auto power off
- Metric / Imperial selection
- Measuring mode selection
