Product details
1. Applicable to NTSC, PAL, SECAM and CCIR system.
2. Full motion CCTV video at distance up to 7200ft(2400m).

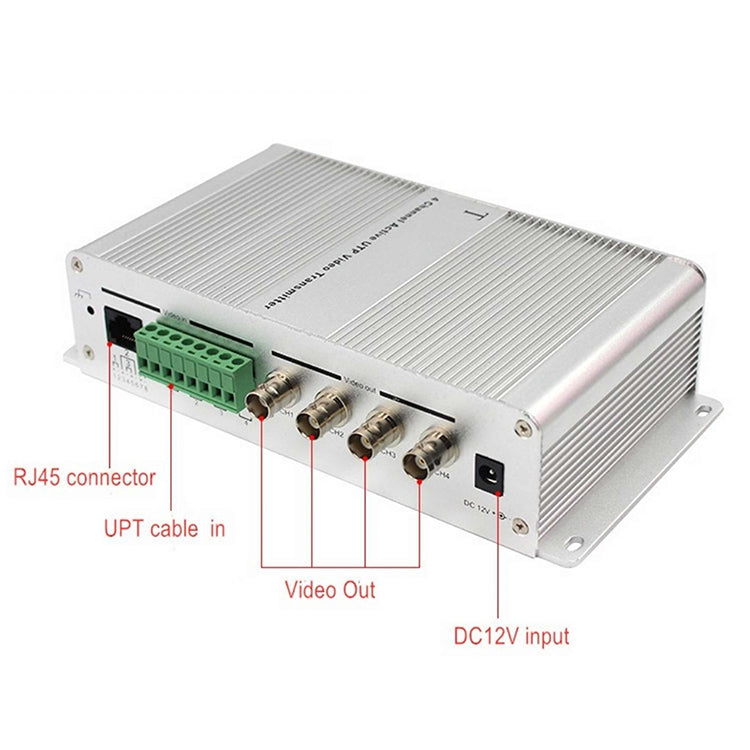

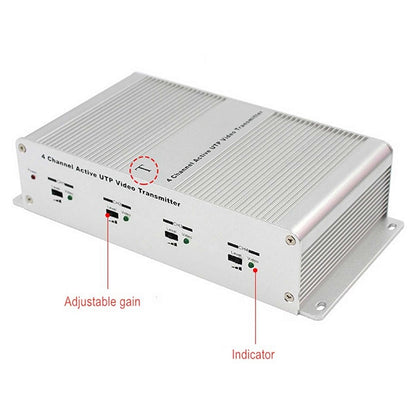

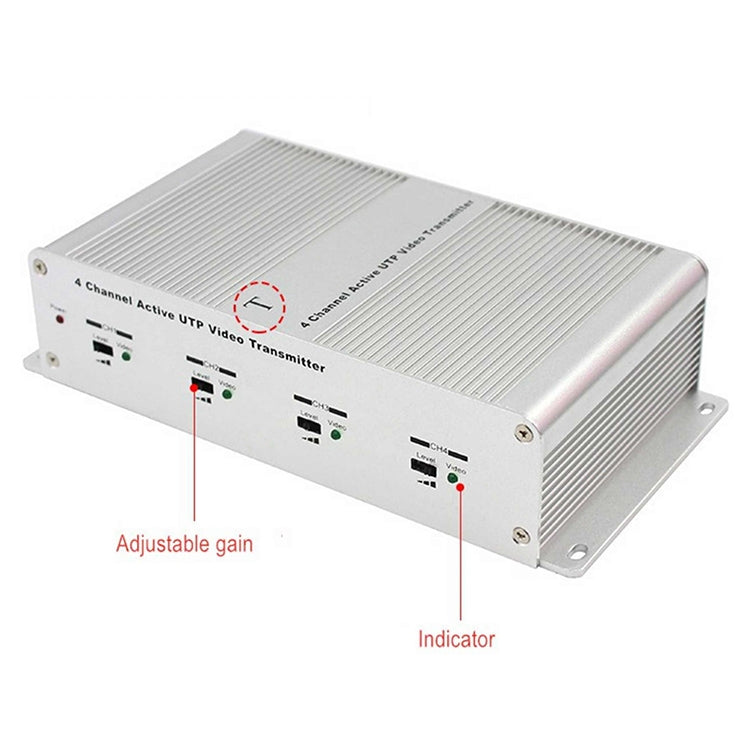

3. 18 pin RJ 45 socket, 8 position green terminal block, 4 BNC port, 4 "brightness"adjustable knob, 4 "sharpness" adjustable knob.
4. Applied for the occasions such as video monitoring and video meeting, can transmit four channels of video signal via 8 core cat-5 unshielded twisted pair wire.
5. Can receive balanced signal to convert it into unbalanced signal, and raise the receive signal with receiving effect well.
Specifications:

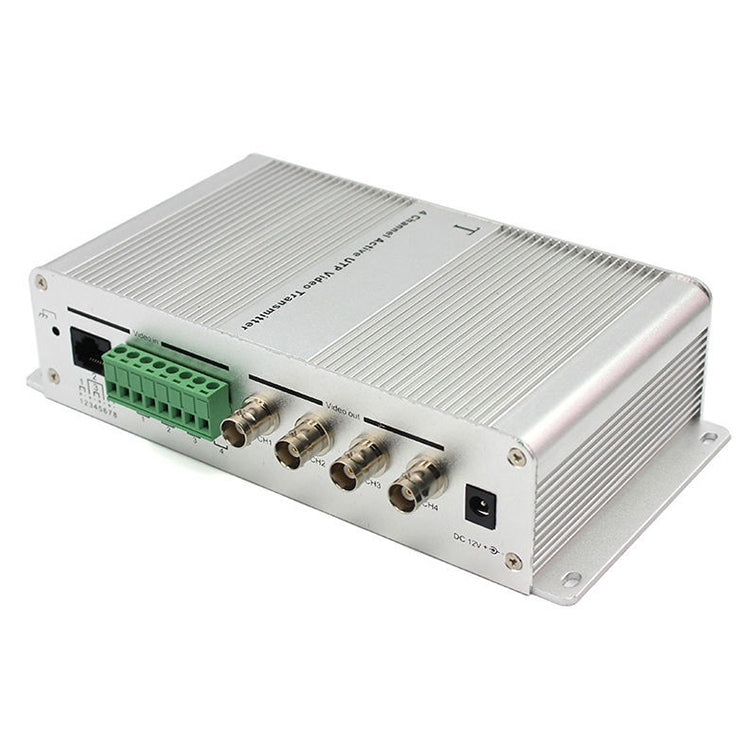

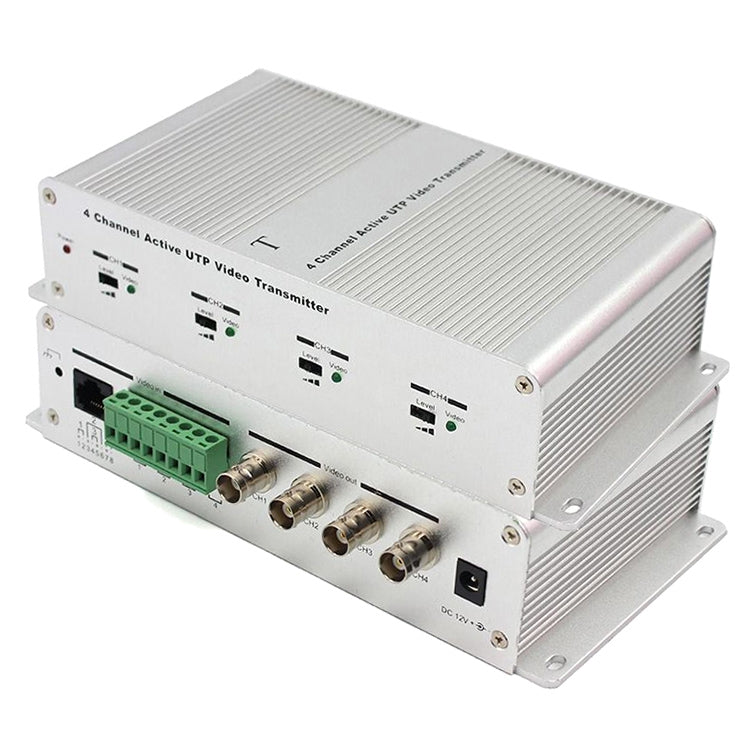

1. Product Name: 4 Channel UTP Video Transmitter
2. Channel: 4
3. Material: Metal
4. Frequency Response: DC-8MHz
5. CMRR: 60db
6. Impendance: BNC Terminal: 75Ohm; Connection Terminal: 100Ohm
7. Working Temperature: -10-70 degree C
8. Voltage: DC 12V
9. Current: Max.200mA
10. Characteristic Impendance: 100+/-20 Ohm
11. DC Loop Resistance: 18Ohm/100m
12. Size: 20 x 7 x 4.3cm
13. Color: Silver Tone
14. Weight: 579g
