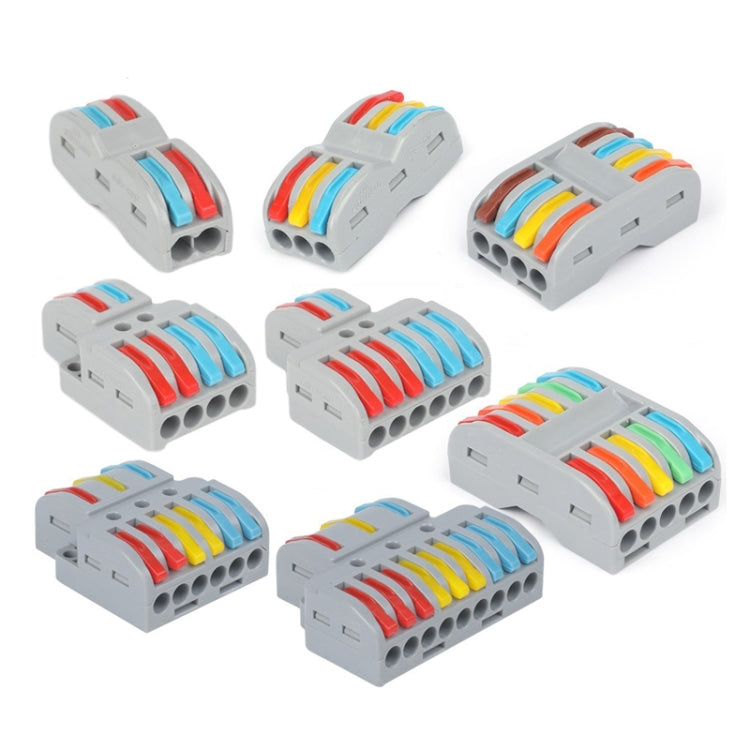

The SPL-93 is a multi-function dismantling wire connection terminal designed for connecting various types of wires. It is suitable for everyday use in consumer electronics.
Product type: Connectors & Terminals
Compatibility: SPL series
Material: PA nylon, stainless steel, electrolytic copper
Key feature: Durable and flame retardant
Color/Variant: Multi-color
Weight: About 3.21g/piece (2 inputs, 2 outputs)
Weight: 4.55g/piece (3 inputs, 3 outputs)
Weight: 9.9g/piece (2 inputs, 4 outputs)
Weight: 10.18g/piece (2 inputs, 6 outputs)
Weight: 12.5g/piece (3 inputs, 6 outputs)
Weight: 18.3g/piece (3 inputs, 9 outputs)
Weight: 13.14g/piece (4 inputs, 4 outputs)
Weight: 15.8g/piece (5 inputs, 5 outputs)

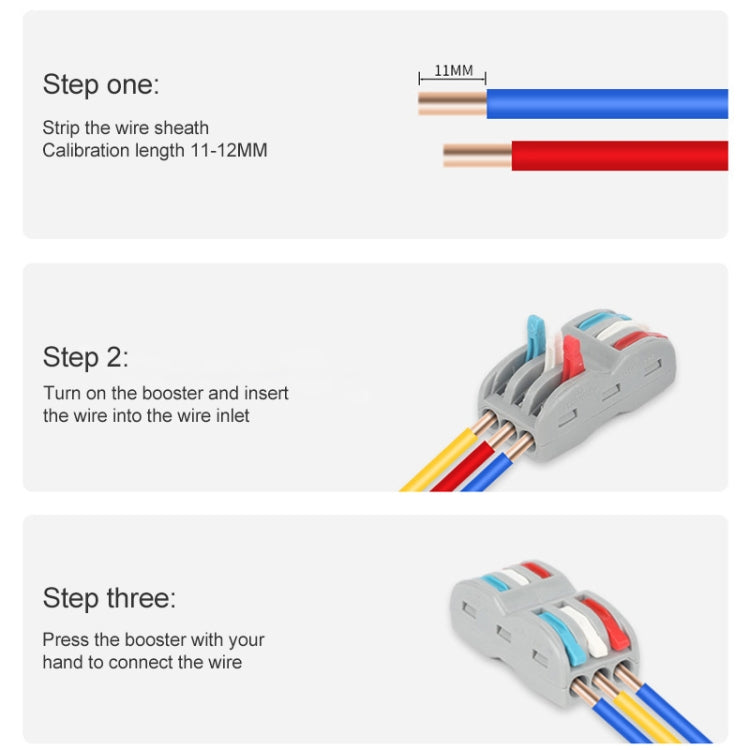

Stripping length: About 11-12mm
Wiring specifications: SPL series and LT-2/LT-3 can connect to 0.4-2.5 square millimeters of multi-strand flexible wire / 0.5-4 square millimeters of single-strand hard wire; LT series can connect to 0.4-4 square millimeters of multi-strand flexible wire / 0.5-6 square millimeters of single-strand hard wire
Rated voltage: 250V (LT-2/LT-3 rated at 250/600V)
Rated current: SPL series 32A, LT series 36A (LT-2/LT-3 rated at 40A)
Features: PA engineering plastic, resistant to color change, deformation, flame retardant insulation, high temperature resistance, durable, easy installation, compatible with hard and flexible wires, strong tightness
