SINOTIMER Small Mechanical Temperature Regulator Control Panel Thermostat, Model: KTS011 is a thermostat designed for temperature regulation. It features mechanical temperature control and is suitable for various applications.
- Product type: Thermostat & Thermometer
- Model: KTS011
- Material: Plastic
- Color: Blue
- Intended use: Temperature regulation
- Compatibility: KTS011
- Widely used in communication, wind power generation, fire-fighting equipment, ships, petrochemical industry, large-scale factories, coastal factories, wharves, water treatment facilities, equipment
- Mini size, simple and convenient installation
- Long service life, good durability
- High switching performance, high sensitivity

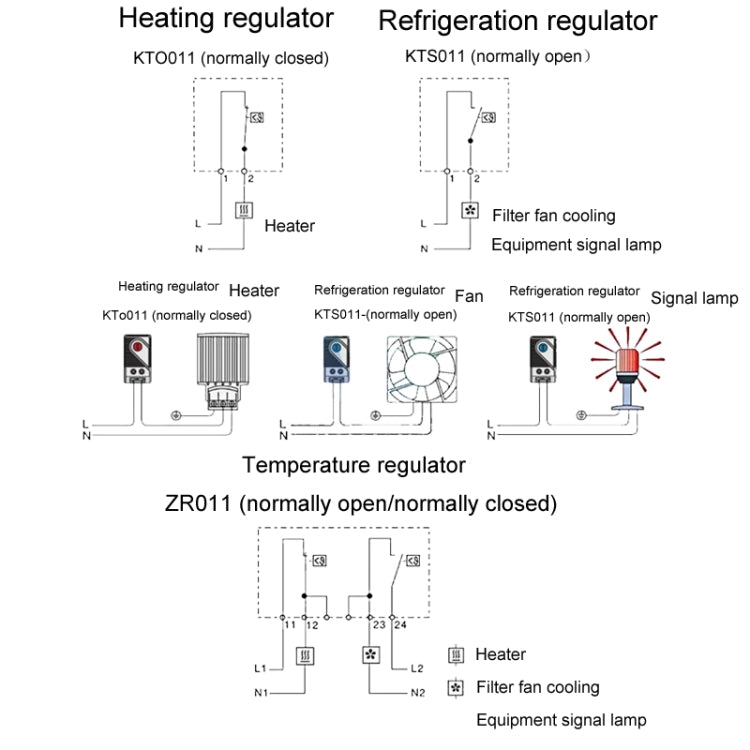

- Function: KTO011 (red, normally closed for heaters), KTS011 (blue, normally open for fans or signaling devices), ZR011 (integrated design for heating and cooling)
- Working principle based on bimetal thermal expansion
- Switching temperature control: +/-7K (+/-4K tolerance)
- Sensing element: temperature-sensitive material
- Contact type: quick action contact
- Contact resistance: less than 10 milliohms
- Service life: more than 100000 cycles
- Switch ratings: AC250V, 10(2)A; AC120V, 15(2)A; DC 30W
- EMC: EN 55014-1-2; EN 61000-3-2; EN 61000-3-3
- Wiring: 2.5 square millimeter wire
- Mounting: 35mm DIN rail
- Shell material: plastic
- Operating/storage temperature: -80 to 80 degrees Celsius
- Protection class: IP20
- Dimensions: KTO011/KTS011: 60 x 33 x 43mm; ZR011: 67 x 50 x 46mm
