Waveshare RM500U-CN 5G HAT Quad Antennas LTE-A Multi Band Module Board for Raspberry Pi
Waveshare RM500U-CN 5G HAT Quad Antennas LTE-A Multi Band Module Board for Raspberry Pi
No reviews
Prix habituel
$300.00
Prix habituel
Prix promotionnel
$300.00
Frais d'expédition calculés à l'étape de paiement.
Free Shipping Tracked
Estimated delivery: Dec 2 - Dec 12
Quantité
Impossible de charger la disponibilité du service de retrait
✓ Your Purchase is Protected
Join 40,000+ happy customers who shop risk-free
Free Worldwide Shipping Tracked
Ships in 1-3 days • Save £8.99
6-Month Guarantee Protected
Manufacturing faults covered
30-Day Easy Returns Risk-Free
Changed your mind? Full refund
Secure Checkout SSL
Your payment info is protected
✓ 40,000+ customers trust us with their purchases
Features
1. Comes with RM500U-CN core module, supports 5G and LTE-A multi network types, supports 5G NSA and SA networking
2. Integrates extensive network protocols, with multi drivers and software support, compatible with different OS including Windows / Linux / Android

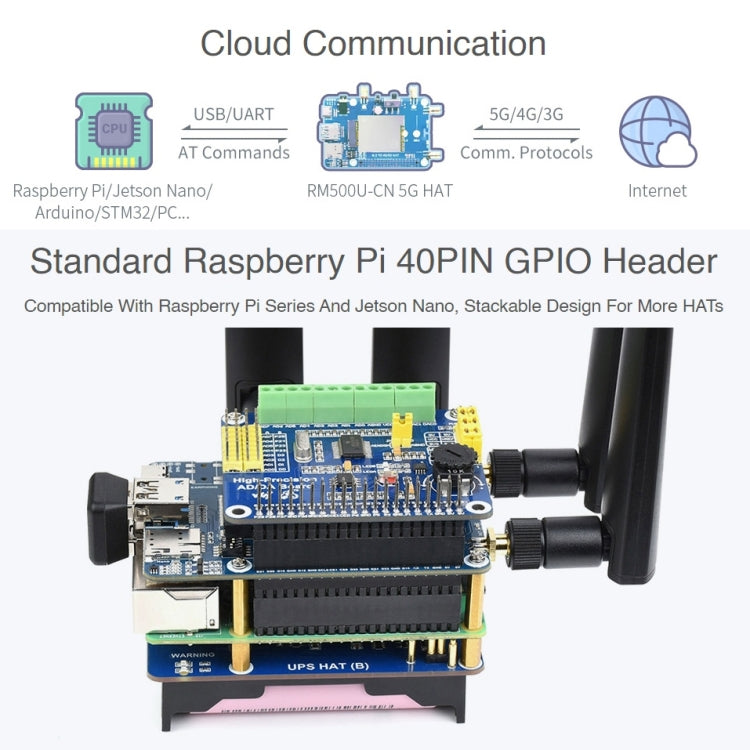

3. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
4. Standard M.2 B KEY slot, compatible with different 5G modules: RM500U-CN / RM500Q-CN / RM500Q-GL series
5. Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
6. Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
7. Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
8. 2x SIM card slot, dual card single standby, switchable via AT command
9. High efficiency power supply circuit, up to 3A output current
Specifications
Frequency band:
1. 5G:
- 5G NR: 3GPP Release 15 NSA/SA operation, Sub-6 GHz
- 5G NR NSA: n41, n78, n79
- 5G NR SA: n1, n28, n41, n77, n78, n79
- Downlink: 4 x 4 MIMO n1, n41, n77, n78, n79
2. LTE:
- LTE Category: Downlink Cat 12, uplink Cat 13
- LTE-FDD: B1, B2, B3, B5, B7, B8, B20, B28
- LTE-TDD: B34, B38, B39, B40, B41
- Downlink 2 x 2 MIMO: B1, B2, B3, B5, B7, B8, B20, B28, B34, B38, B39, B40, B41
3. UMTS: WCDMA: B1, B2, B5, B8
Data rate:
1. 5G SA Sub-6: Downlink 2 Gbps; uplink 1 Gbps
2. 5G NSA Sub-6: Downlink 2.2 Gbps; uplink 575 Mbps
3. LTE: Downlink 600 Mbps; uplink 150 Mbps
4. UMTS: Downlink 42.2 Mbps; uplink 11 Mbps
Other:
1. Operating temperature: -30 degree C ~ +75 degree C
2. Extension temperature: -40 degree C ~ +85 degree C

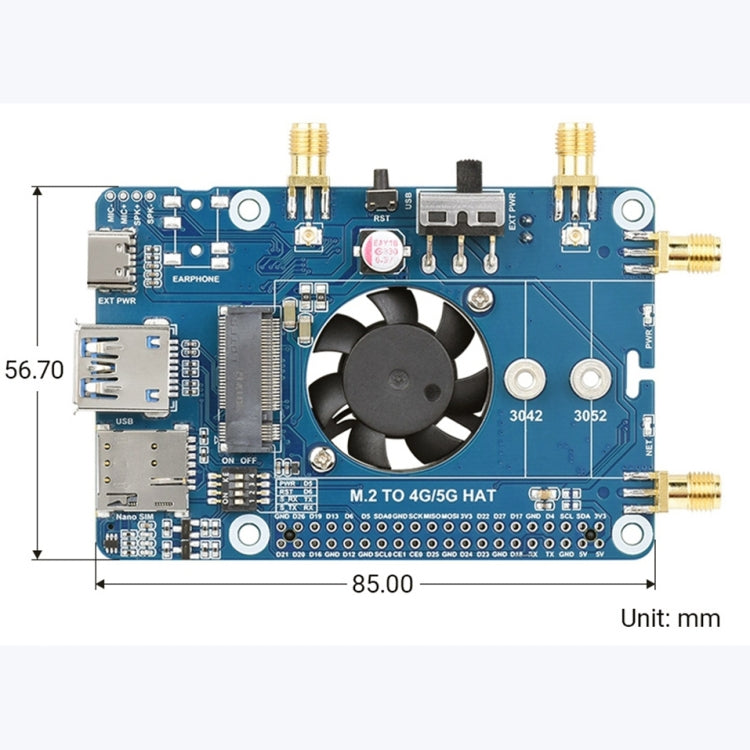

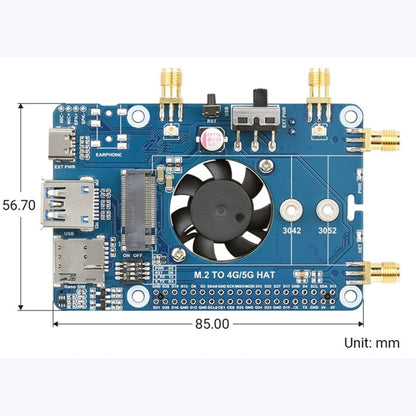

3. Module dimensions: 30.0 x 52.0 x 2.3 (mm)
4. Module weight: 8.9 (g)
Package List
1. M.2 TO 4G/5G HAT x 1
2. RM500U-CN x 1
3. Antenna 4pcs x 1
4. IPEX adapter cable 4pcs x 1
5. 2*20PIN pin header x 1
6. 5V 3A Type-C power adapter x 1
7. Dual plug USB3.0 cable x 1
8. USB3.0 adapter x 1
9. USB2.0 adapter x 1
10. SMA protective cap 4pcs x 1
11. Screws pack x 1
