Product details
1. Screen: 2.4-inch (320*240 resolution) true color TFT screen
2. Operating temperature: 0-60°C (32-140°F)
3. Storage temperature: 40-70°C (-40-185°F)
4. External power supply: Powered by a battery, 12V or 24V
5. Operating voltage: 9V-30V
6. Measurement voltage: 0.1-100V
7. Resistance measurement range: 1 ohm to 200k ohm
8. Active current measurement range: 0 to 18A
9. Continuous current: 18A (MAX)

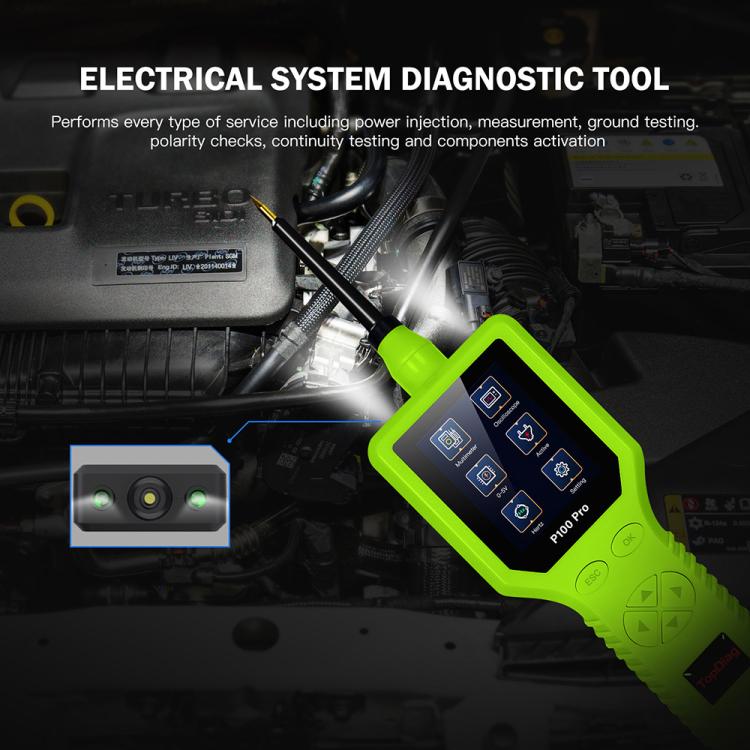

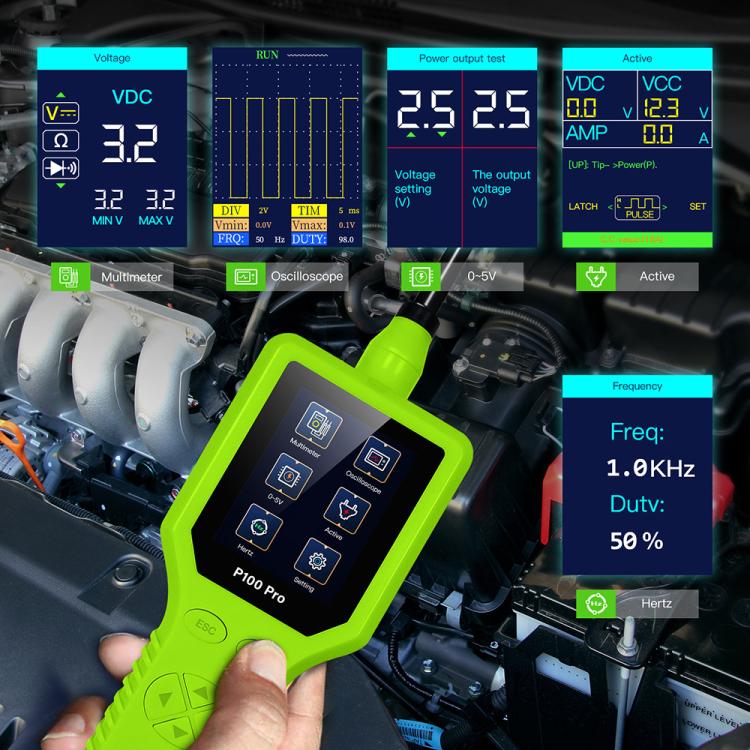

10. Performs various types of services, including power injection, measurement, ground testing, polarity checking, continuity testing, and component activation

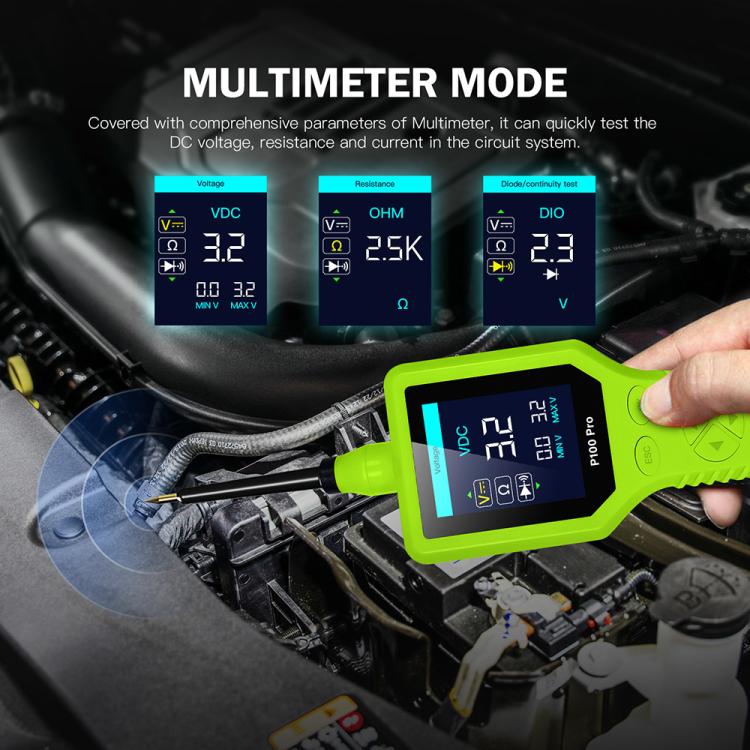

11. Multimeter mode covers all multimeter parameters and can quickly test DC voltage, resistance, and current in circuit systems.
12. Component activation generates an "activation" signal for components such as lights, motors, and other in-vehicle electronics.

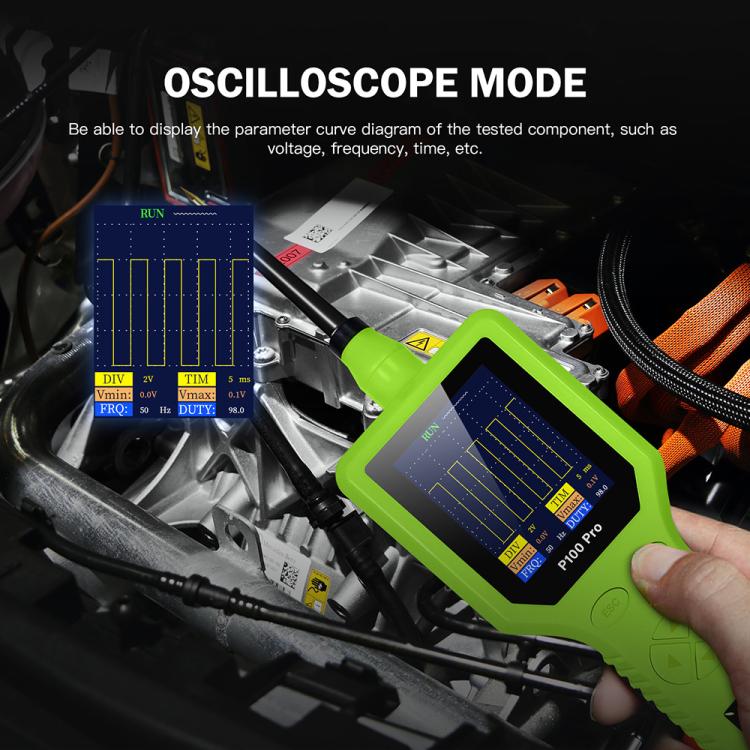

13. Oscilloscope mode displays a graph of the tested component's parameters, such as voltage, frequency, and time.

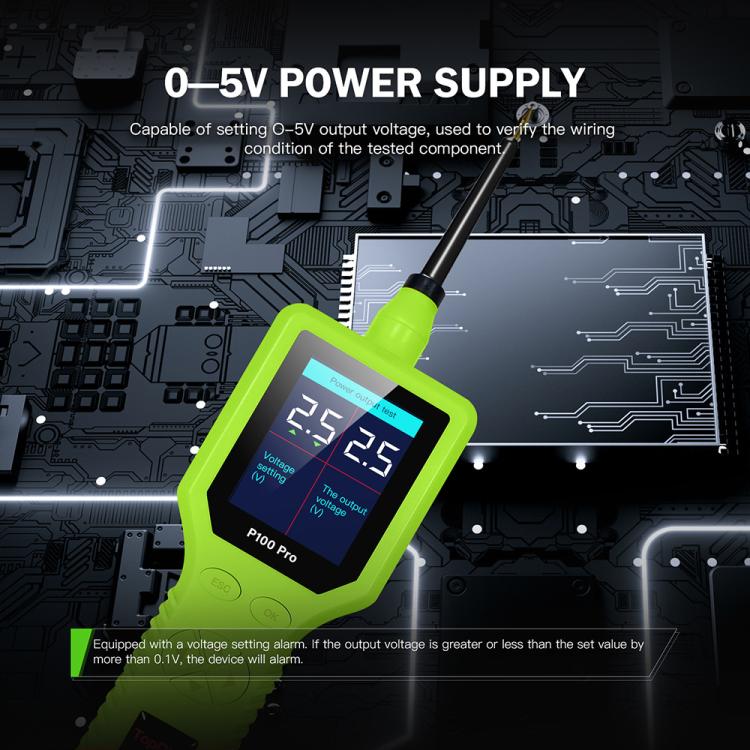

14. A 0-5V output voltage setting is available for verifying the wiring of the tested component.
15. Multiple language support: English, German, Spanish, French, Italian, Portuguese, Russian, Polish, Simplified Chinese, Vietnamese, Thai, Indonesian, Filipino, Malay, Arabic, Korean, Traditional Chinese, and Japanese.
16. The P100 Pro features powerful operating modes that support all vehicle electrical systems and is designed for diagnosing circuit problems in cars, trucks, SUVs, motorcycles, boats, excavators, trailers, and more.
