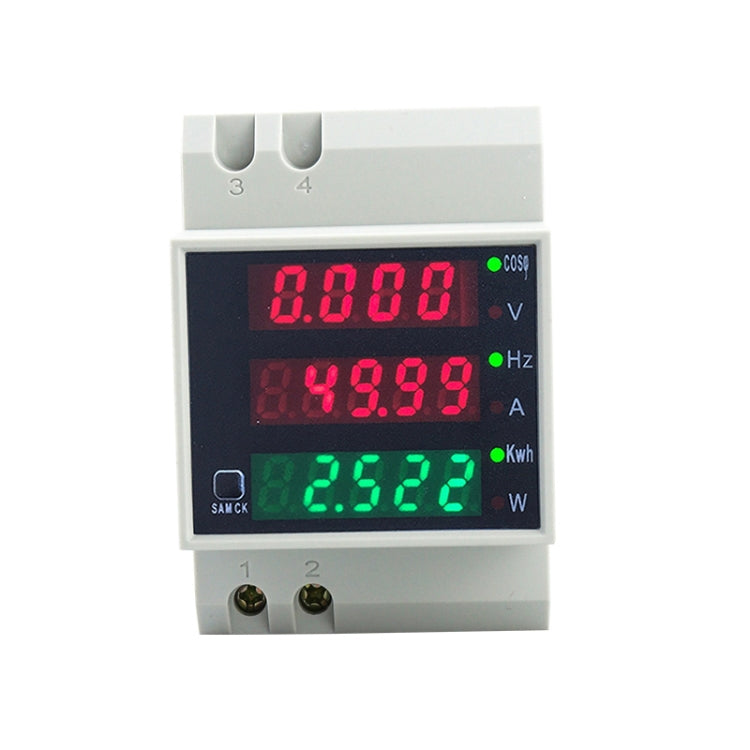

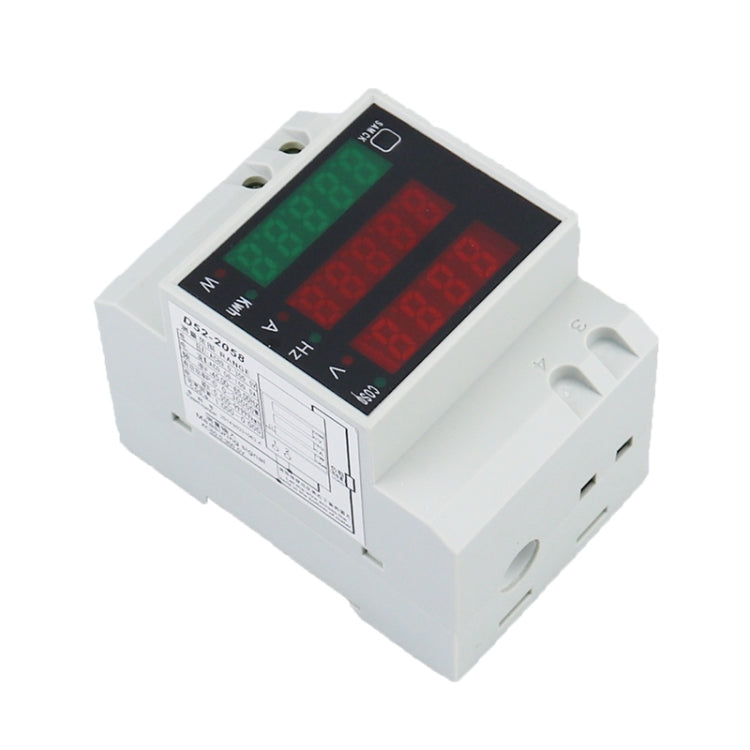

D52-2058 Wattmeter Din rail Volt Current Meter, Specification: AC80-300V Built-in CT

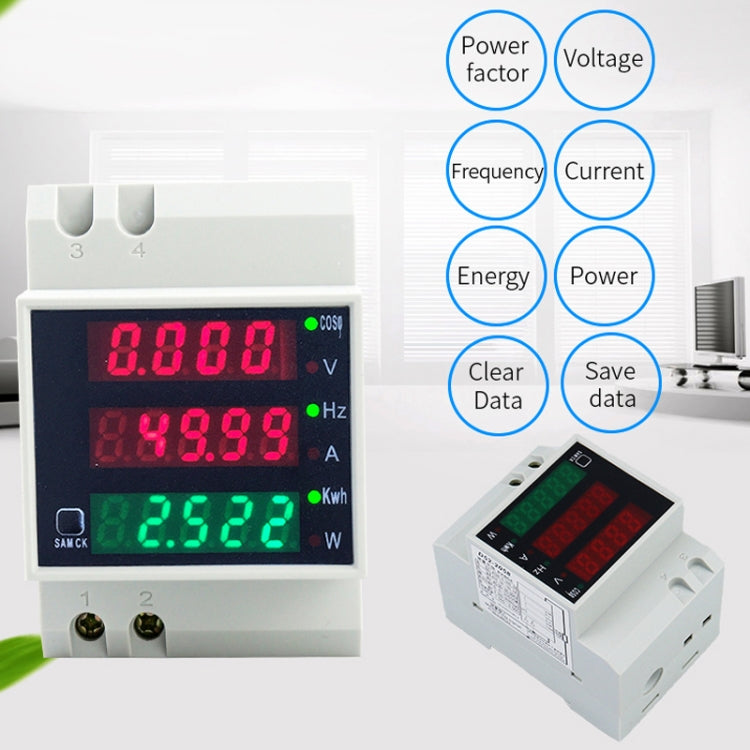

The D52-2058 Wattmeter is a digital display multi-function meter designed for electrical measurements. It measures AC voltage, AC current, power factor, active power, frequency, and electrical energy.

• Product type: Current & Voltage Tester
• Compatibility: AC80-300V
• Measurement accuracy: 1% +/- 2 words

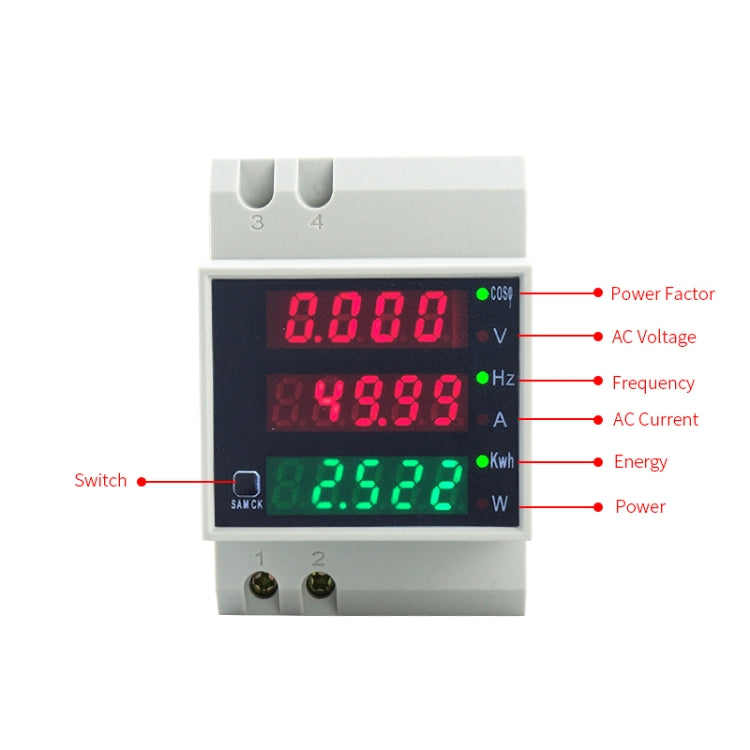

• Display: 4-digit red 0.31-inch LED digital tube for voltage, 5-digit red 0.31-inch LED digital tube for current and frequency, 5-digit green 0.31-inch LED for active power and electrical energy
• Measurement range: AC voltage: AC80.0-300.0V, AC200.0-450.0V; AC current: AC0-100.0A
• Current display resolution: 0.01A (current < 100A), 0.1A (current ≥ 100A)
• Active power range: 0.0-30000W (AC80.0-300.0V), 0.0-45000W (AC200.0-450.0V)
• Electric energy range: 0.000-99999kwh, decimal point automatic conversion
• Power frequency: 45.00-65.00HZ
• Power factor range: 1.000-0.000
• Measurement speed: about 2 times per second
• Weight: 145g

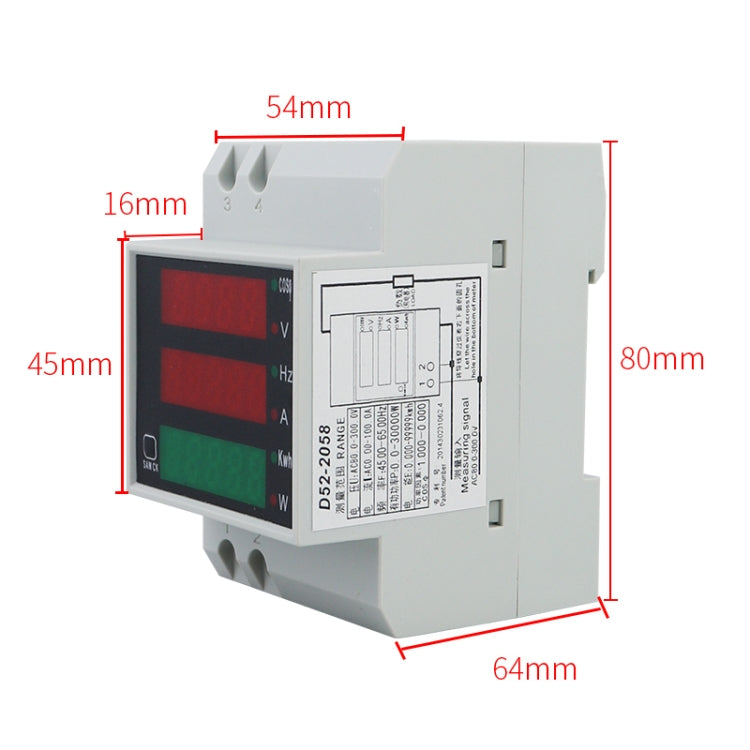

• Installation width: occupies the 3P air switch position (DZ47/C45)
• Installation method: track type
