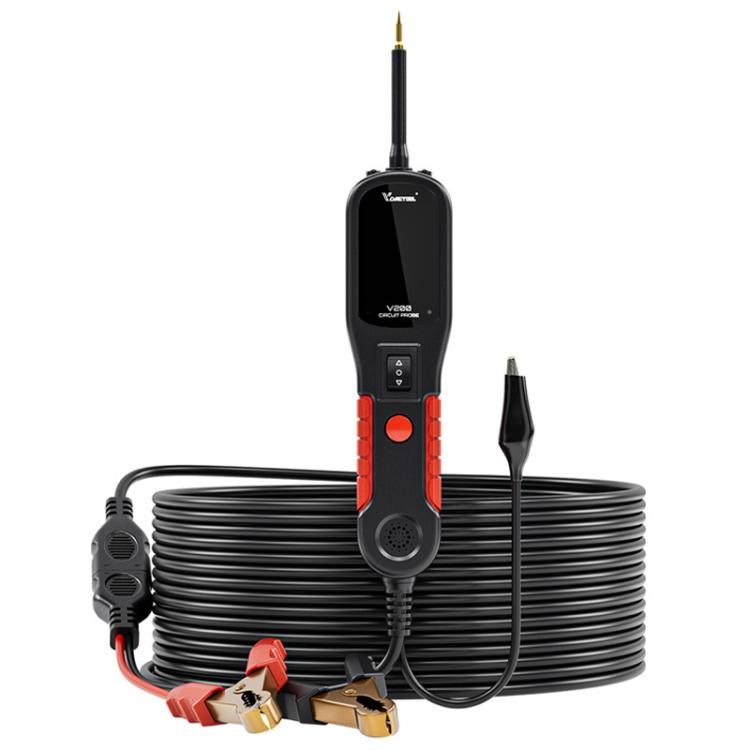

VDIAGTOOL 6-42V Automotive Circuit Tester(V200 Red)

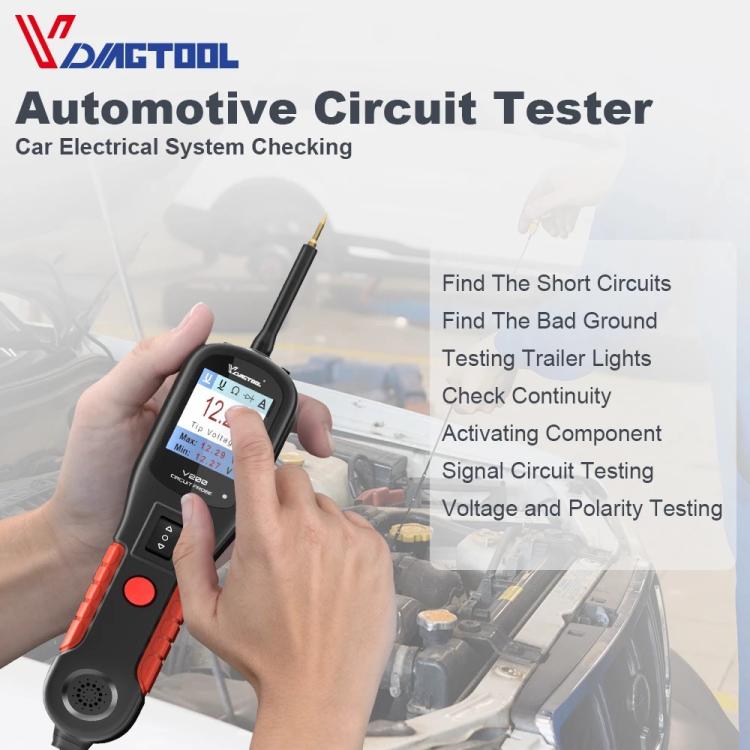

VDIAGTOOL 6-42V Automotive Circuit Tester is an electronic testing device designed for automotive circuits. It performs voltage, resistance, and diode tests for circuit diagnostics.

• Product type: Electronic Test
• Compatibility: Automotive circuits
• Material: Not specified
• Key feature: Multi-language options
• Color/Variant: V200 Red
• Intended use: Everyday use
• Category: Diagnostic Scan Tools

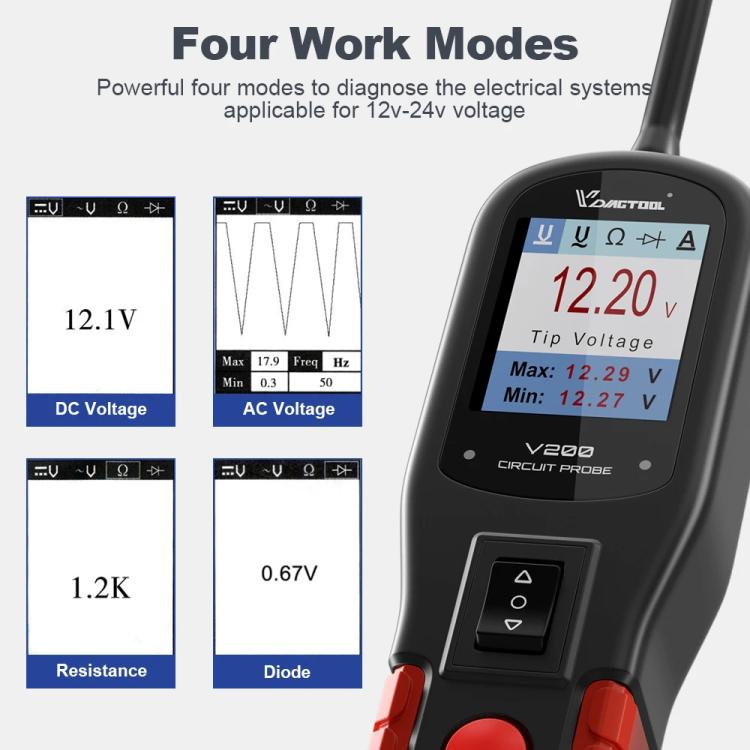

• AC voltage detection: MAX/MIN voltage, power frequency, and duty cycle
• DC voltage detection: Voltage value of the circuit under test
• Resistance test mode: Detects resistance between probe and auxiliary ground
• Diode test mode: Tests diode operation and conductivity

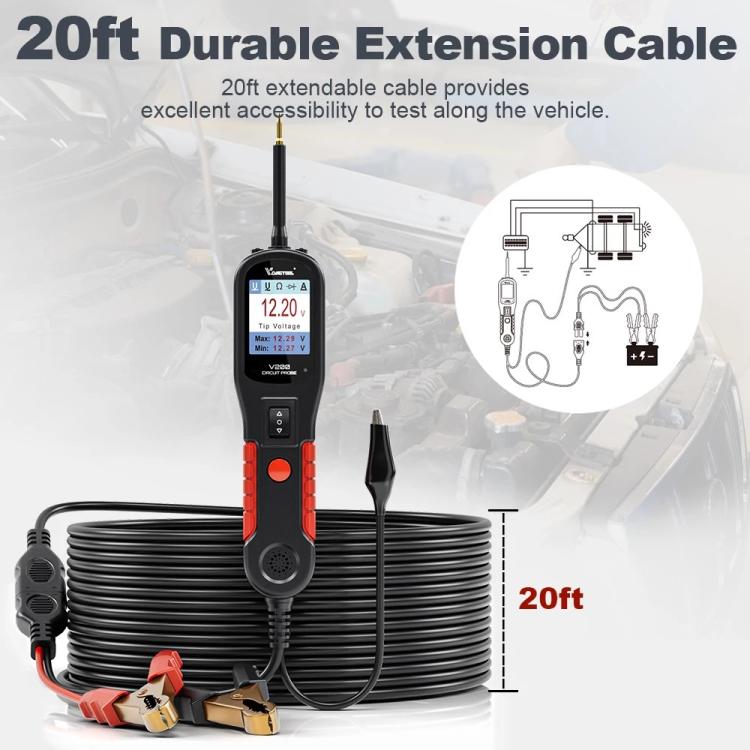

• Detection cable length: 6m
• Current overload protection: Automatically disconnects protection circuit
• Multi-language options: English, German, Spanish, French, Italian, Russian, Portuguese
• Display: TFT color display (160 x 128 dpi)
• External power supply: 12 or 24V from vehicle battery
• Dimensions: 28x47x178 mm
• Weight: 1.2 kg

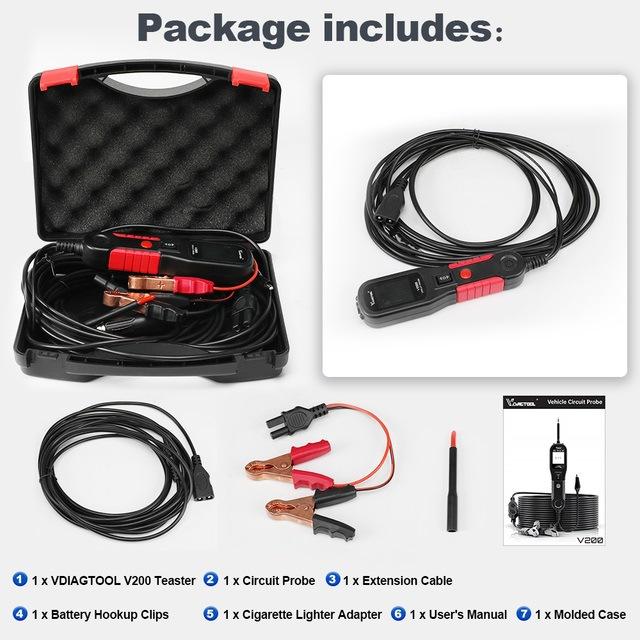

• Packing list: V200 circuit tester, probe tip, 20ft extension cable, battery connection clip, cigarette lighter adapter, user manual, box
