DC12V 1CH RF Remote Control Switch / 10A Relay / 433MHZ Switch Receiver

DC12V 1CH RF Remote Control Switch is a relay switch designed for controlling various electrical loads. It operates at a frequency of 433MHz and can handle up to 10A of current.

• Output relay switching capability: controls loads up to 250V
• Requires a 12V power supply
• Circuit board dimensions: 35x30x17mm
• User-adjustable operating modes: self-locking, interlocking, inching, and time-delay
• Learning pairing with any remote controller at 433MHz
• Operating voltage: DC 12V (3V/6V/9V/24V available on request)
• Quiescent current: ≤ 10mA
• Operating temperature: -40°C to +80°C
• Receiver sensitivity: ≥ -95dB
• Operating frequency: 315MHz, 433.92MHz (other frequencies available on request)
• Output current: ≤ 10A
• Output mode: contact output (AC and DC controllable)

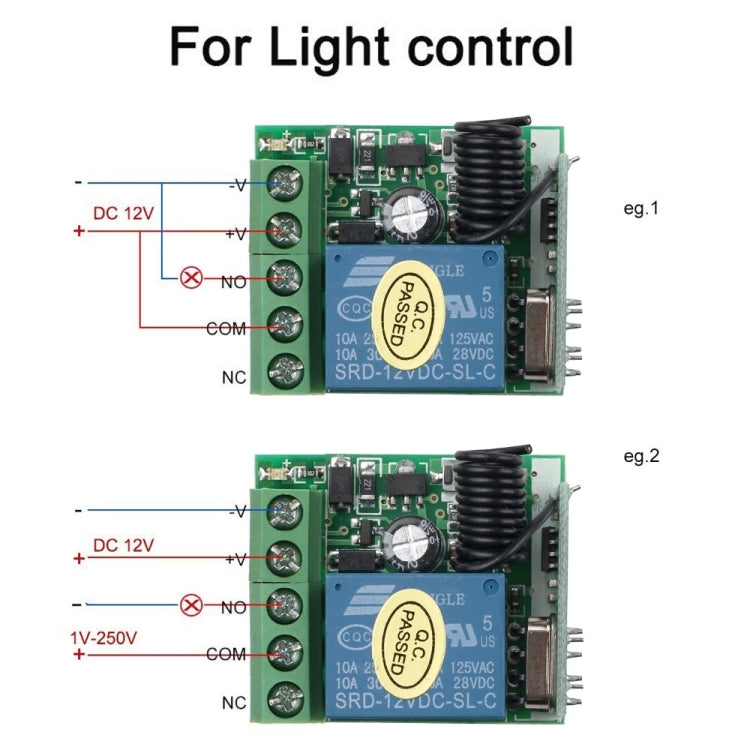

• Applications: garage door control, lighting control, remote curtain control, access control systems, motor control systems
• Learning methods: inching, self-locking, interlocking, and various delay settings
• Precautions for safe operation and maintenance
