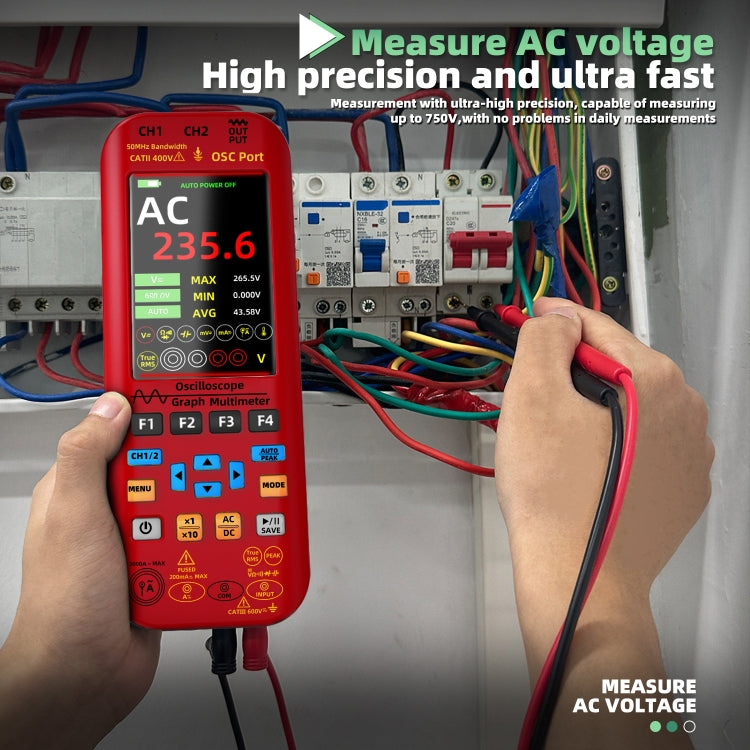

Multimeter: 1. Measurement range: - DC voltage (V): 1000V - DC voltage (mV): 200mV - AC voltage (V): 750V - AC voltage (mV): 200mV - DC/AC current (mA): 200mA - AC current (A): 2000A (flexible coil required) - Resistance: 200mOhm - Capacitance: 99.999mF - Temperature: -20-1000 degrees Celsius / -4-1832 degrees Fahrenheit 2. Resolution: - DC/AC voltage (V): 0.001V - DC voltage (mV): 0.01mV - AC voltage (mV): 0.001mV - DC/AC current (mA): 0.01mA - AC current (A): 0.1A - Resistance: 0.001 mOhm - Capacitance: 0.001F - Temperature: 1 degree Celsius / Fahrenheit 3. Functions: diode, on-off, true RMS, screen backlight, low battery indication, automatic shutdown 4. Battery capacity: 5000mAh lithium battery (built-in)
Oscilloscope: 1. Bandwidth: 50MHΖ 2. Sampling mode: real-time sampling 3. Real-time sampling rate: 250MSa / s 4. Number of channels: 2, dual-channel DC, AC 5. Display mode: YT, Xy, scrolling 6. Waveform output type: sine wave, square wave, triangle wave, half wave, full wave, 7. sawtooth wave, DC 8. Frequency range: 0ΗΖ-2ΜΗΖ 9. Output channel: 1 10. Output amplitude: 0.1V-3.0V 11. Minimum resolution: 1Hz 12. Square wave duty cycle: 1%-99%1
Features: 1. Support Chinese and English bilingual display 2. 3.98-inch TFT large colour display 3. Dual-channel 50Hz bandwidth, single-channel signal source, isolated channels are independent of each other to avoid interference between them, more accurate signal detection 4. Dual-mode (oscilloscope/multimeter) display, switch modes at will to improve work efficiency 5. Save at any time to view at any time, not afraid of missing important information, support for 36 saved records 6. Intelligent anti-burning, overload does not burn the table 7. One-key waveform screenshot save, save the picture can be viewed in the oscilloscope, can also be exported to the computer, convenient to the acquisition of the signal for secondary analysis
Packing list: - Dual-channel oscilloscope multimeter - 10X oscilloscope probe - Oscilloscope accessories - Meter pen - Red and black crocodile clip probe - Storage bag - Instructions - Charging cable
