Product Details

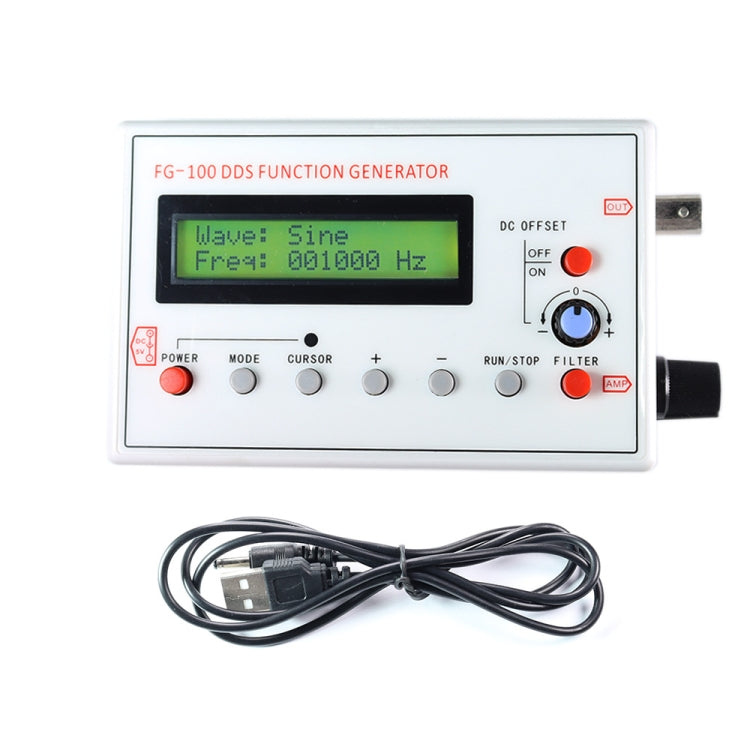

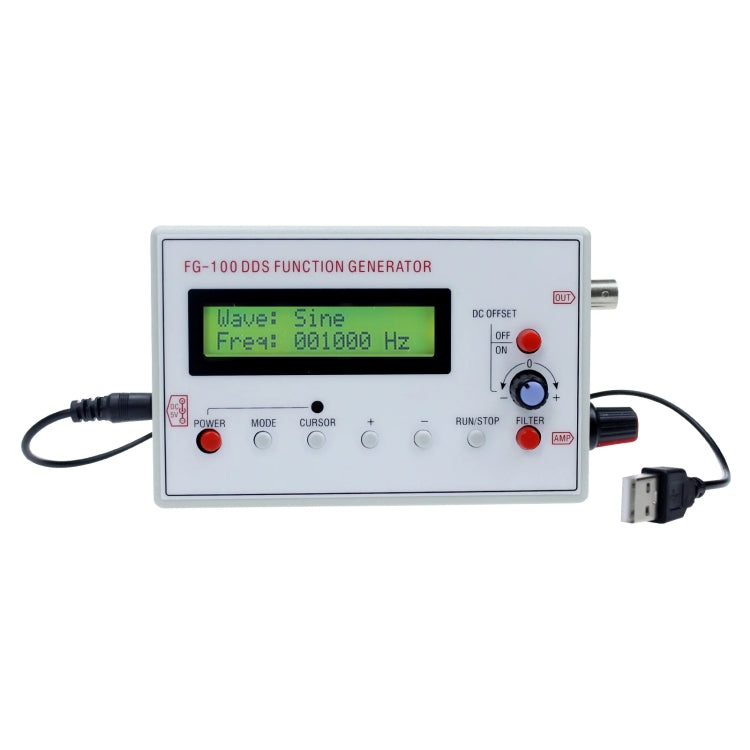

The FG-100 is a DDS function signal generator and frequency counter designed for testing and debugging electronic circuits. It features a compact design and can be powered by an adapter or a lithium battery.
- Product type: Other Tester Tool
- Compatibility: FG-100
- Color: White
- Frequency range: sine wave 1Hz-500kHz, other waveforms 1Hz-20kHz
- Resolution: 1Hz
- Output waveform: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, noise wave, electrocardiogram
- Sine wave distortion: less than 1% below 1kHz, less than 0.5% at 1kHz and above
- Output amplitude: maximum +/-10V (P-P)
- Output impedance: 50 ohms
- DC offset: maximum +/-10V, with shutdown function
- Filter: can be turned on and off for sine and pulse waveform output
- Power supply: DC3.5-10V, recommended DC5V for adapter, 3.7V lithium battery for battery power
- Overall dimensions: 125x80x32 mm
- Weight (including accessories): about 0.2 kg
