Product Details

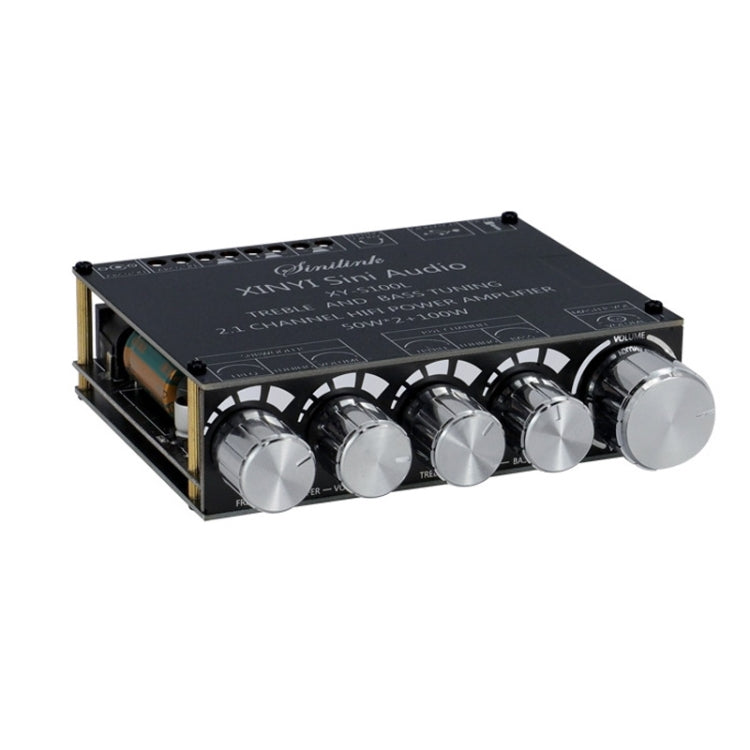

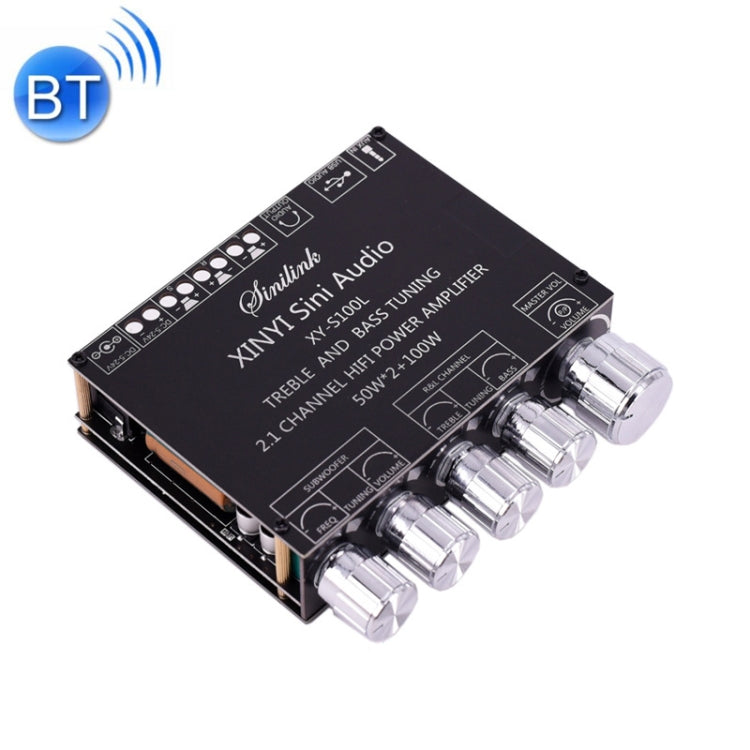

The XINYI XY-S100L Sini Audio Channel 2.1 Bluetooth Power Board Module is an amplifier board designed for audio applications. It supports Bluetooth 5.0 and features multiple audio input options.
- Audio channel: 2.1 channel
- Bluetooth version: 5.0

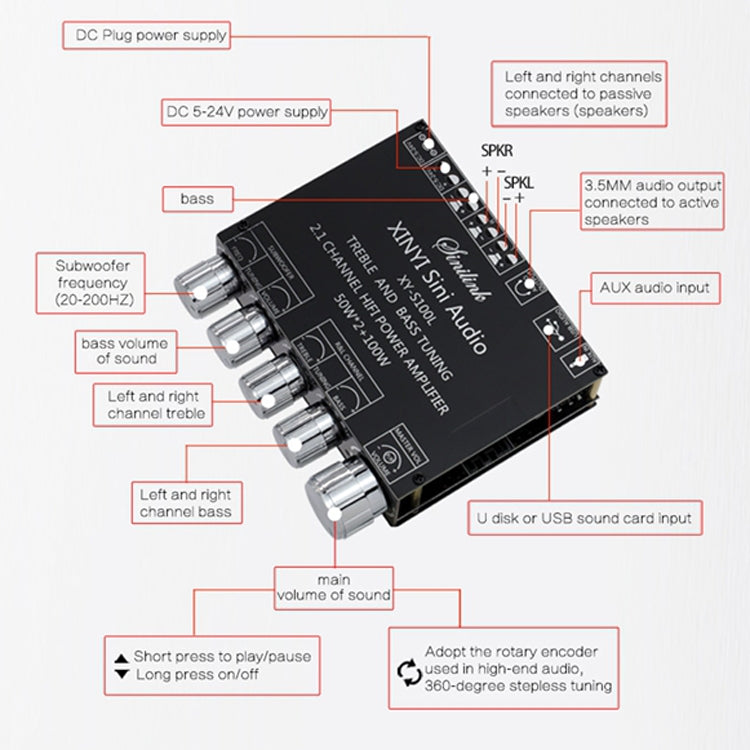

- Audio input: Bluetooth, AUX, U disk, USB sound card
- Audio output: Left and right channel, subwoofer, 3.5mm interface stereo output
- Volume adjustment: Encoder knob adjustment
- Frequency range: 20Hz-30KHz
- Signal to noise ratio: 92dB
- Output power: 50W x 2 (left and right channels), 100W (subwoofer)
- Left and right channel speakers: 10-100W /4-8 ohm
- Subwoofer: 20-200W /4-8 ohm
- Protection mechanism: Static electricity, overcurrent, overheating, short circuit protection
- Adapter power supply: Above DC 5-26V/10A
- Function: Support Sinilink APP control
- Size: About 9.5 x 8.8 x 2.5cm
- Weight: About 156g

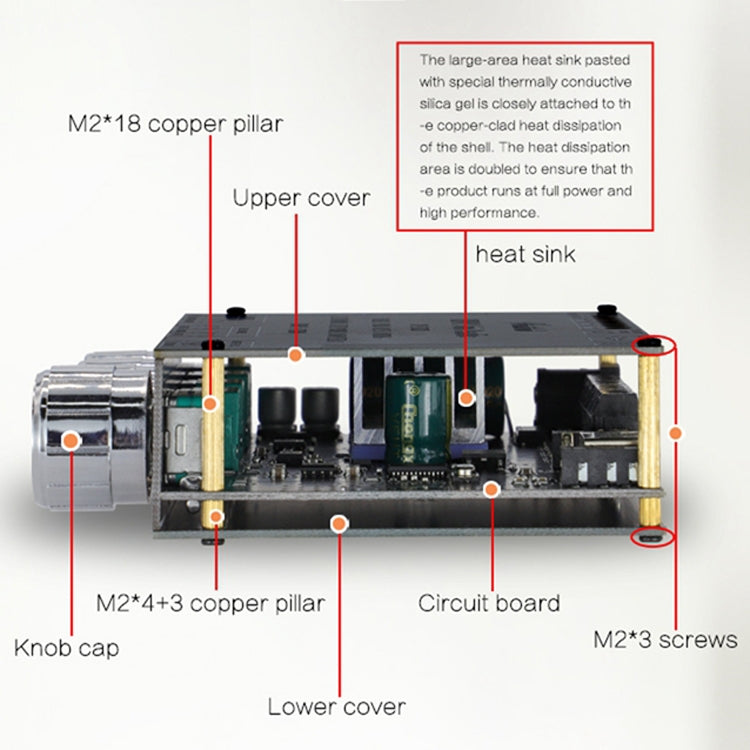

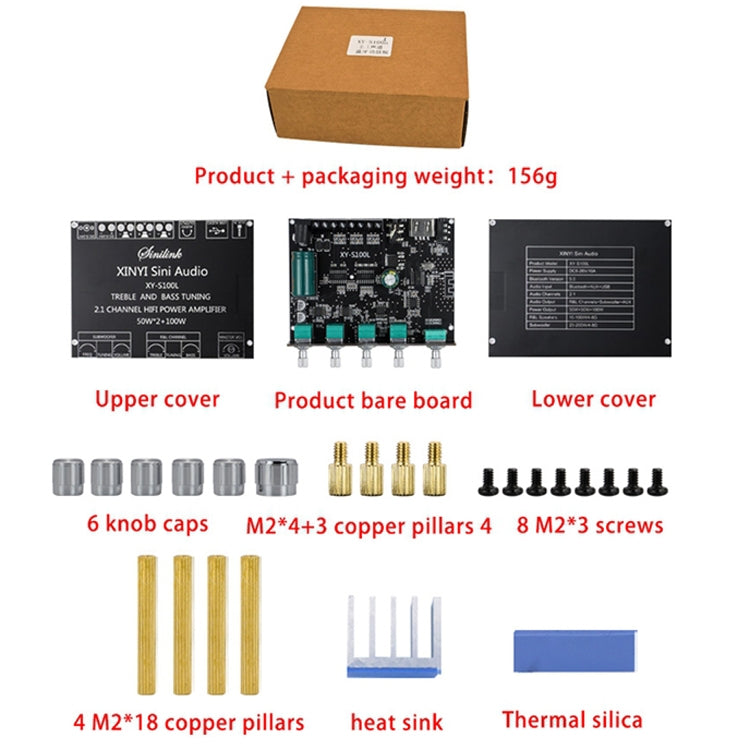

- Packing list: Upper cover x 1, Bare board x 1, Lower cover x 1, Knob cap x 6, M2x4+3 copper pillar x 4, M2x3 screw x 8, M2x18 copper pillar x 4, Heat sink x 1, Thermally conductive silicone paste x 1
