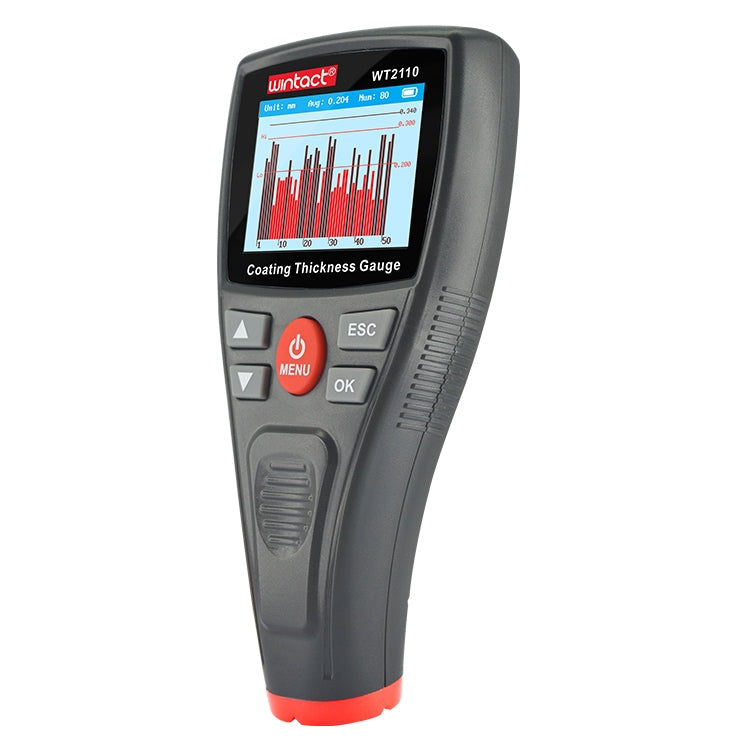

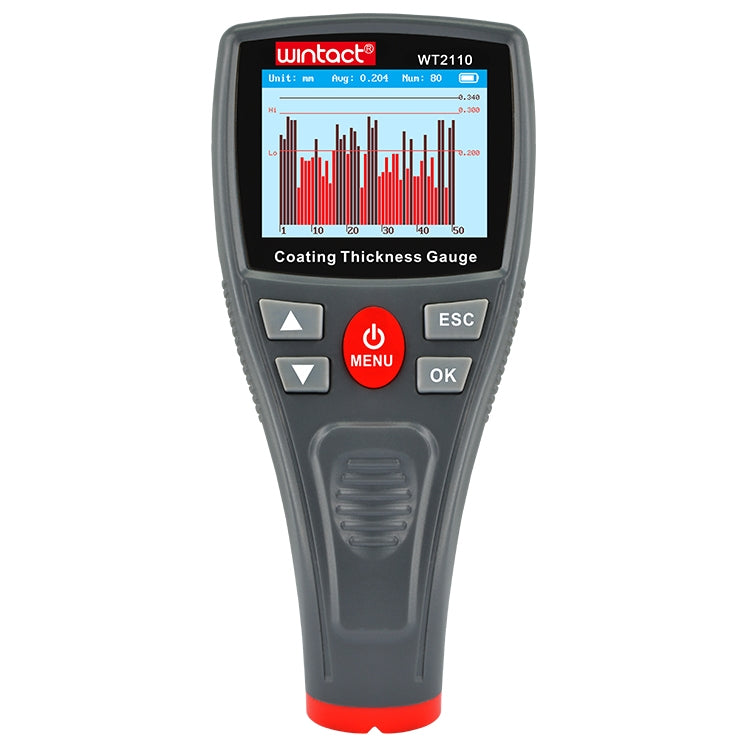

Wintact WT2110 Color Screen Display Coating Thickness Gauge

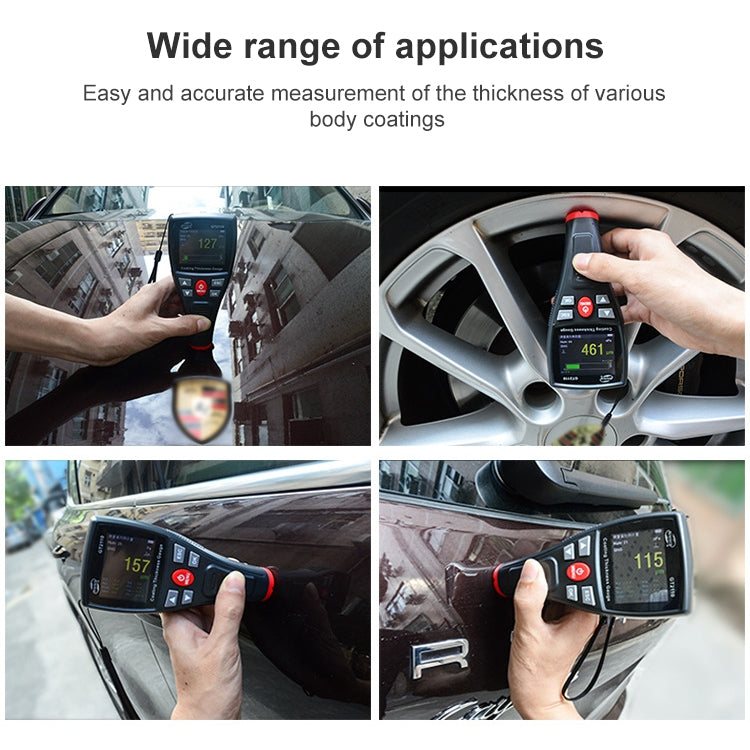

The Wintact WT2110 is a coating thickness gauge designed to measure the thickness of coatings on various metal substrates. It provides accurate, non-destructive measurements suitable for everyday use in multiple testing fields.

• Product type: Coating Thickness Gauge
• Compatibility: Magnetic and non-magnetic metal substrates
• Material: Durable plastic
• Key feature: High-definition color screen display
• Measurement methods: Single measurement and continuous measurement
• Calibration modes: Basic calibration, offset calibration, zero calibration
• Units: Metric/English
• Storage function: Yes

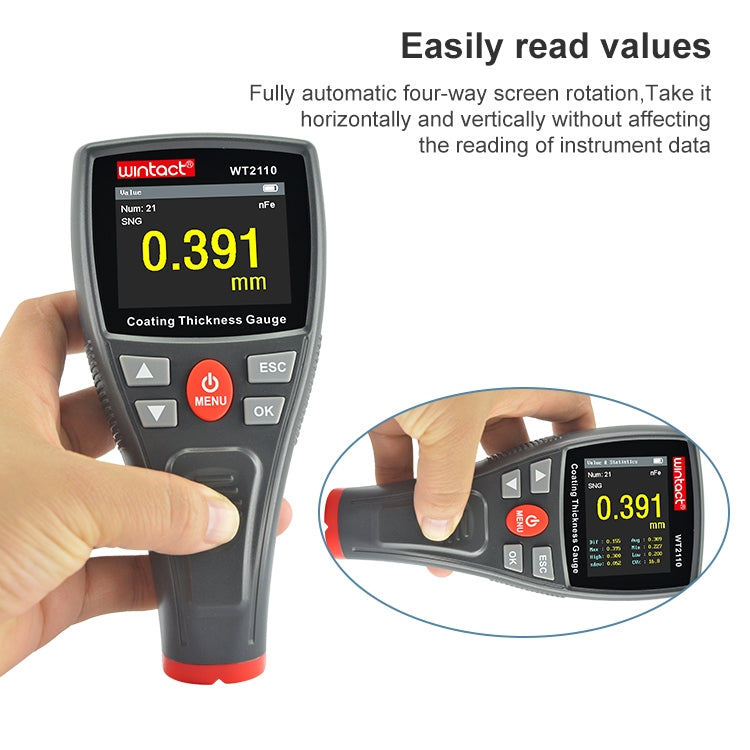

• Screen rotation: Yes
• Charging protection: Yes
• Multi-interface display: Yes
• Screen brightness selection: Yes
• Measuring range: 0-1500um/0-1.5mm/0-59mil
• Lower limit diameter of magnetic metal substrate: 12mm
• Lower limit thickness of magnetic metal substrate: 0.5mm
• Lower limit radius of curvature of magnetic convex substrate: 2mm
• Lower limit radius of curvature of magnetic concave substrate: 11mm
• Lower limit diameter of non-magnetic metal substrate: 50mm
• Lower limit thickness of non-magnetic metal substrate: 0.5mm

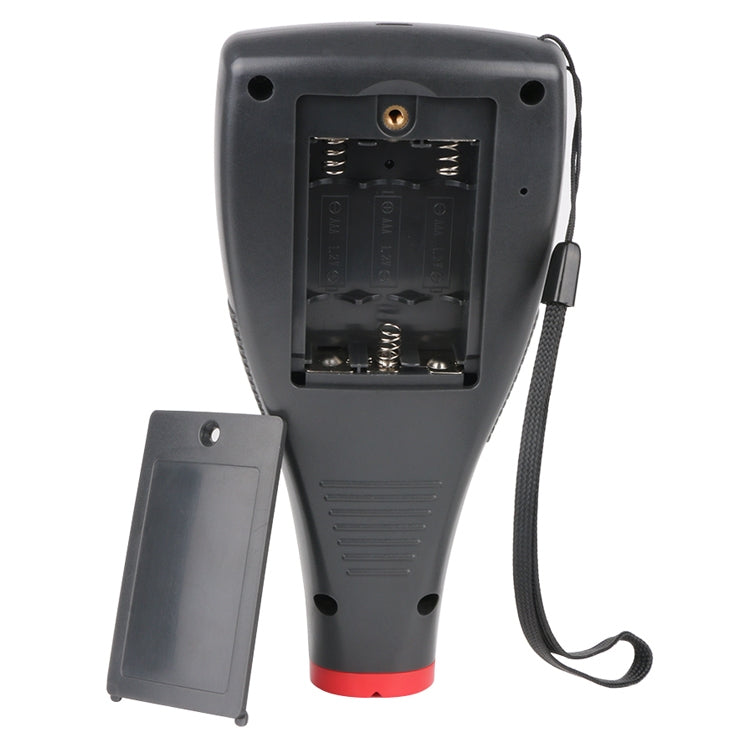

• Power supply: 3 x 1.2V Ni-MH battery or 5V 1A power adapter
• Weight: 132g
• Dimensions: 150 x 65 x 30mm
