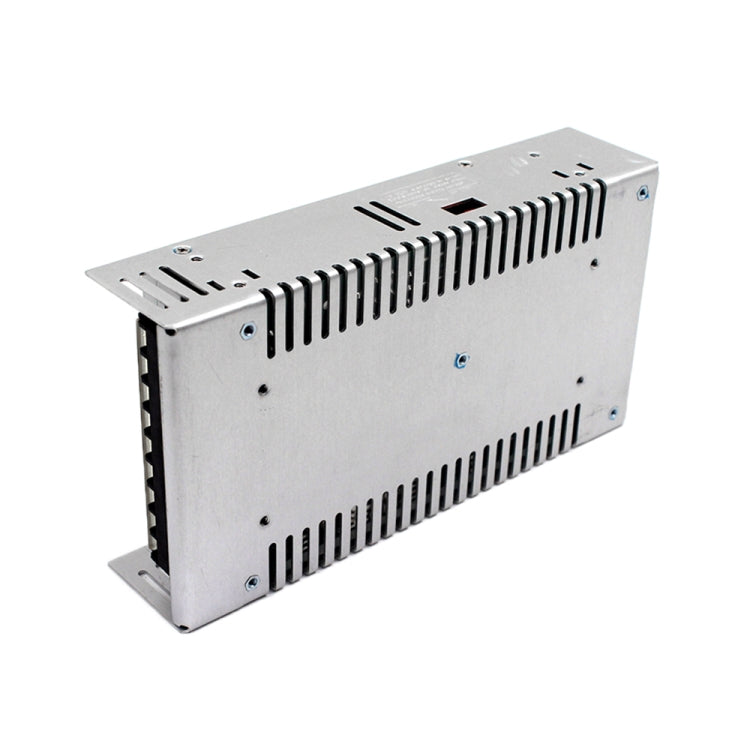

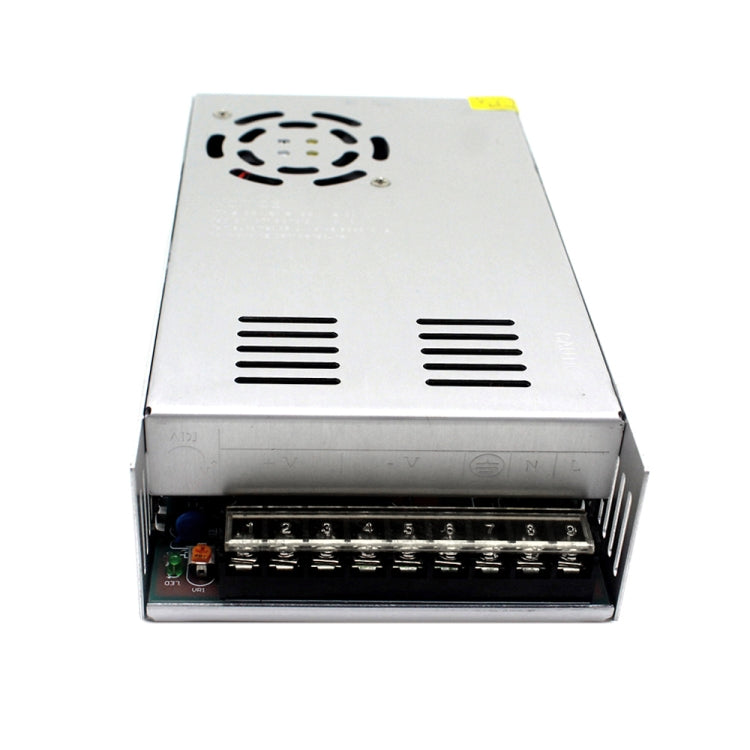

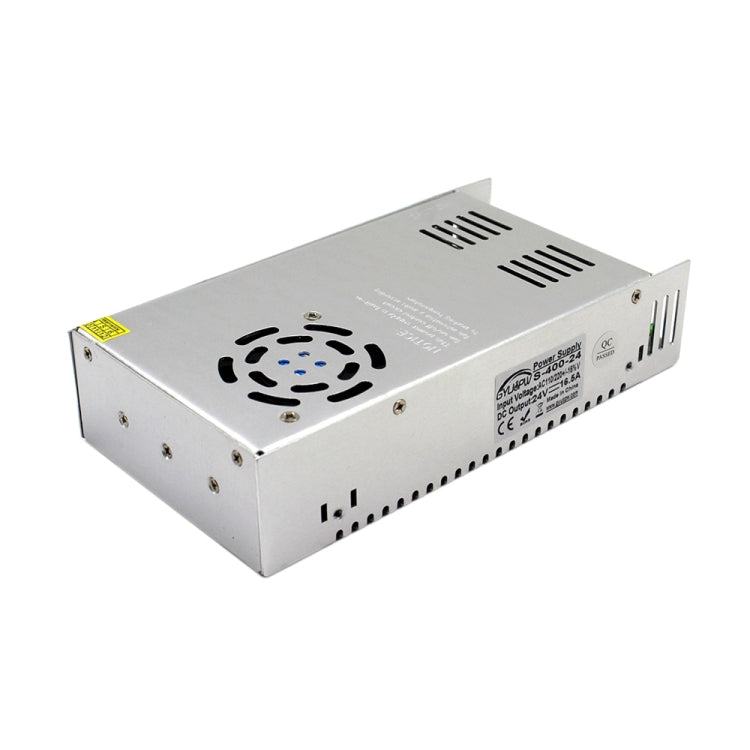

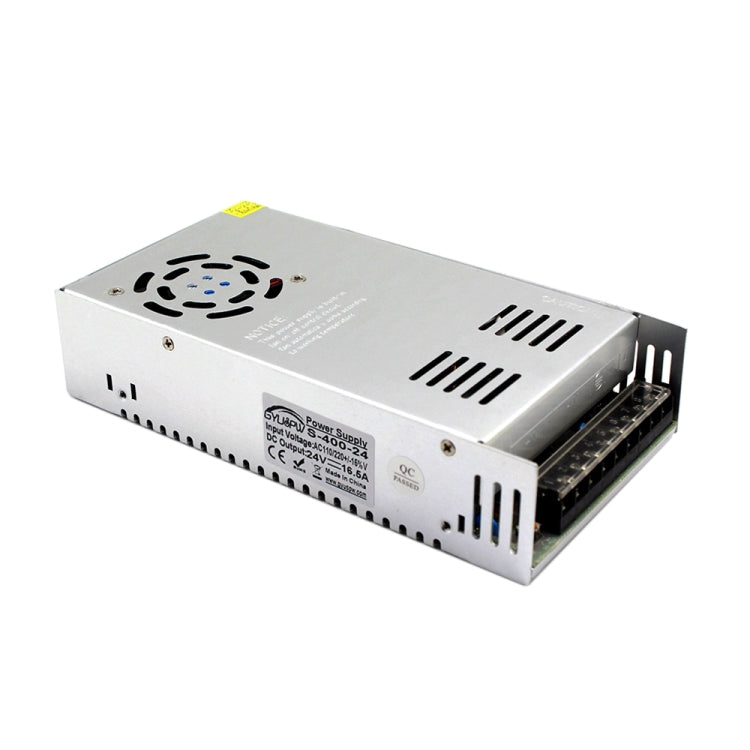

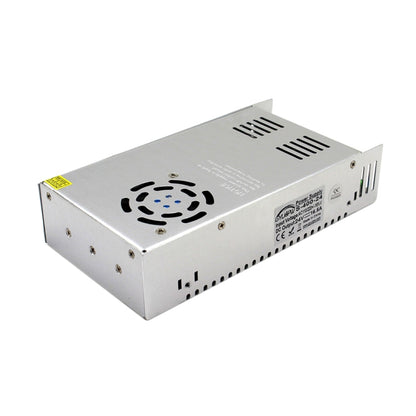

S-400-24 DC24V 16.5A 400W Light Bar Regulated Switching Power Supply LED Transformer, Size: 215 x 115 x 50mm

The S-400-24 is a regulated switching power supply designed for DC24V light bars. It provides stable output for everyday use.

• Product type: Power Supplies
• Compatibility: DC24V Light Bars
• Material: Aluminum
• Key feature: Regulated switching power supply
• Input voltage: 110V/220V +/- 1% (100-140V, 180-260V)
• Output voltage: DC24V 16.5A
• Difference range: +/- 1%
• Power: 400W
• Output adjustable voltage range: +/- 5%
• Frequency: 50-60Hz
• Leakage current: less than 1mA / 230V
• Temperature coefficient: +/- 0.03%/degree Celsius
• Start, rise, hold time: 200ms, 50ms, 20ms
• Vibration resistance: 10-500Hz, 2G 10min / 1 cycle, duration 60 minutes, each axis
• Protection: overload, overvoltage, overcurrent, short circuit
• Pressure resistance Input and output: 1.5KvAC input and shell, 1.5KvAC output and shell, 0.5KvAC
• Working temperature and humidity: -10~60 degrees Celsius, 20-90%RH
• Storage temperature and humidity: -20~85 degrees Celsius, 10-95%RH

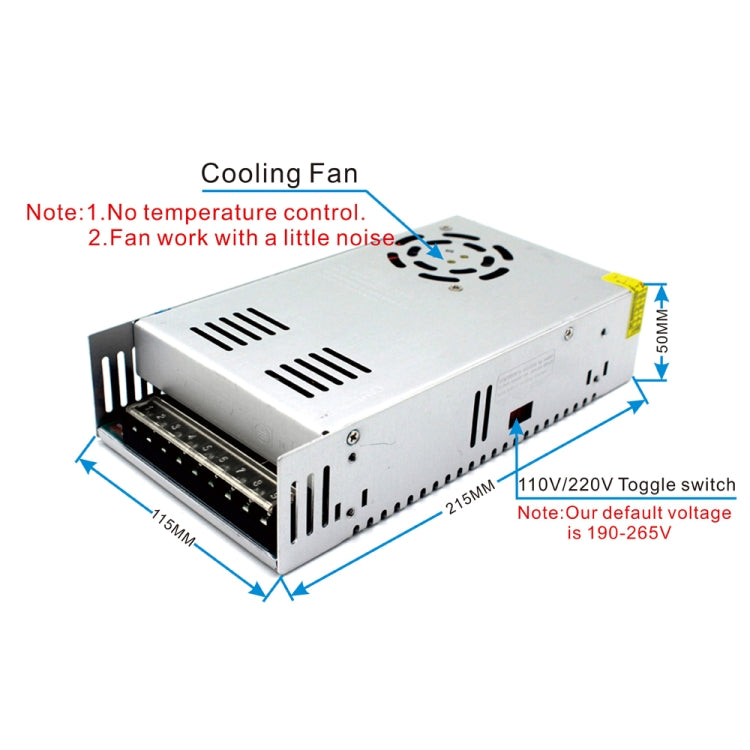

• Dimensions: 215 x 115 x 50mm
