Arduino Nucleo Zubehör

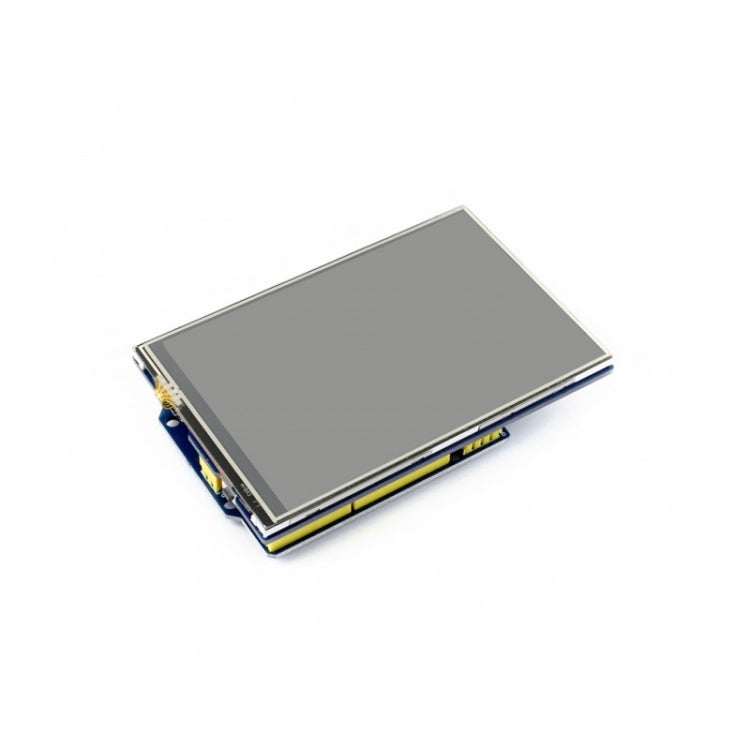

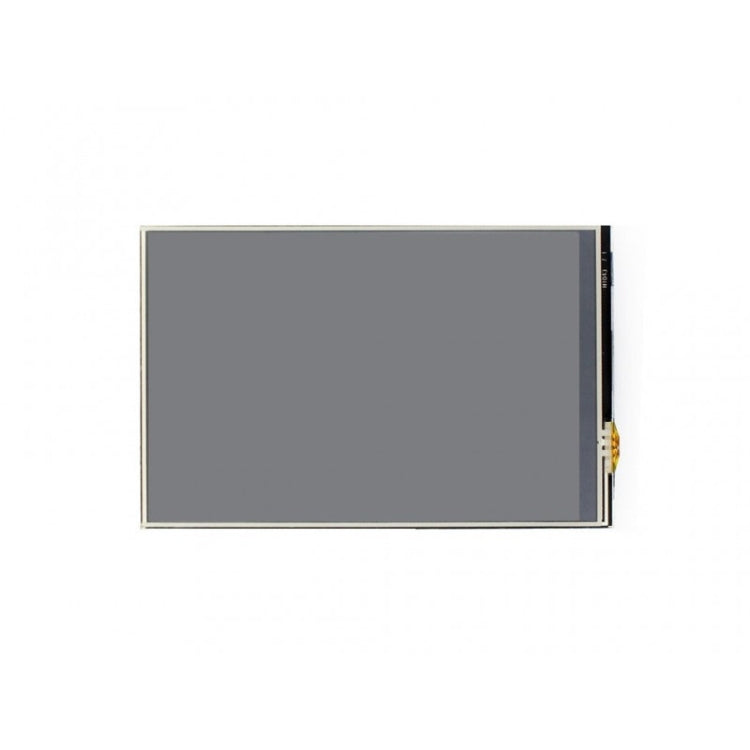

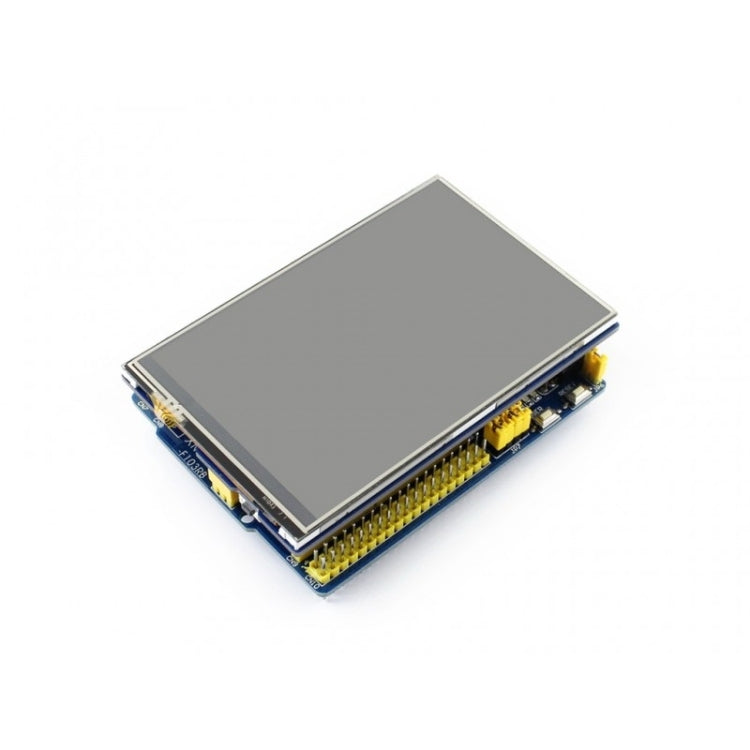

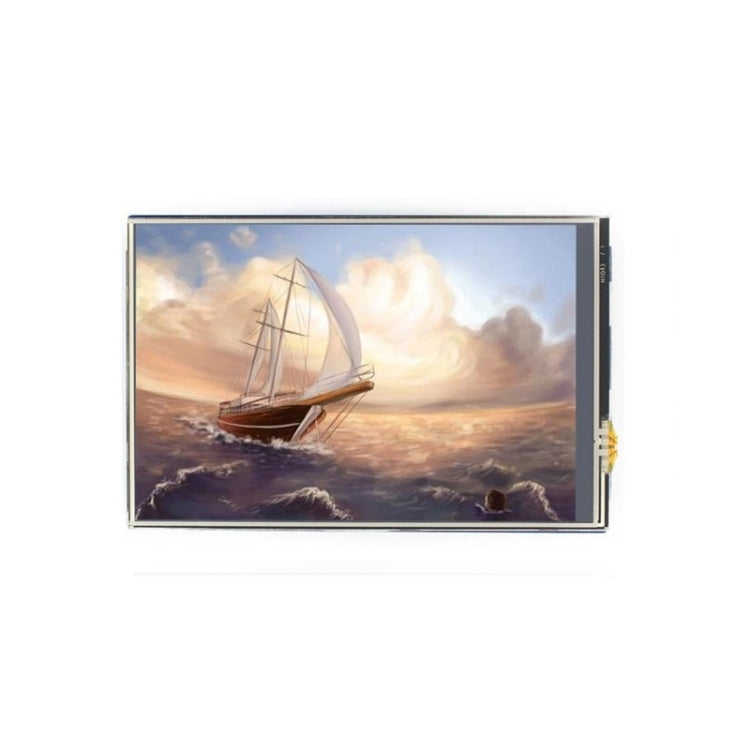

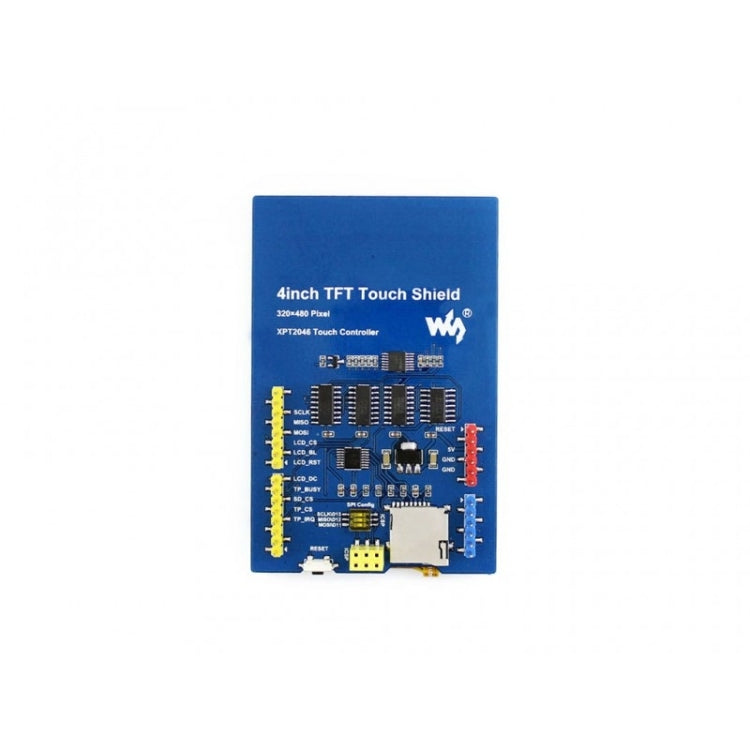

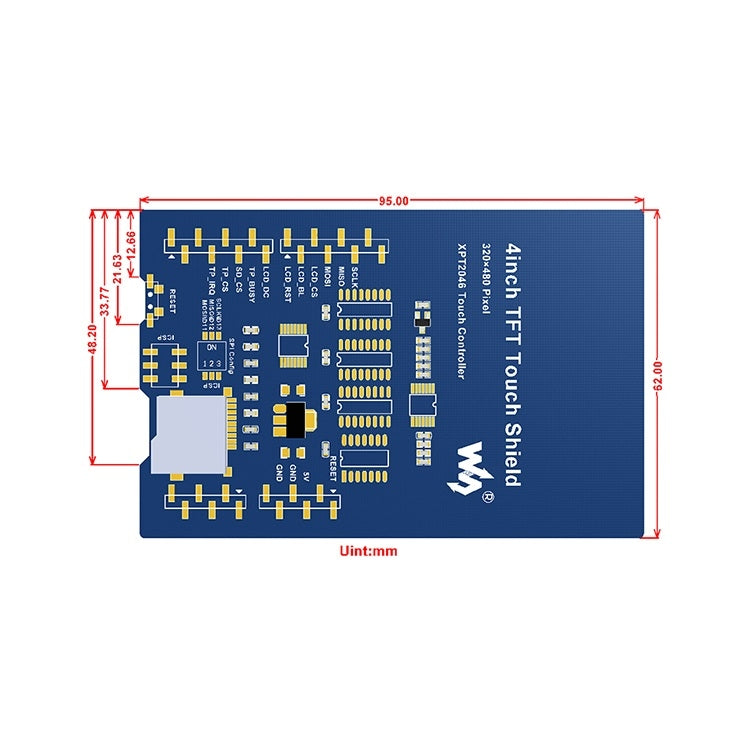

4 inch Touch LCD Shield for Arduino

4 inch Touch LCD Shield for Arduino

SKU: ZY15063223
$63.00
$63.00
Sale Ausverkauft
Versand wird beim Checkout berechnet
In Stock Ships from CHN This item is dispatched from our fulfilment centre in China.

Processed in 1–3 calendar days

BashFashion is an independent retailer. Brand names identify the product brand or compatibility and do not imply affiliation or endorsement. Trademark Notice

Sold by BashFashion. Questions about this product? Chat with us.

Vollständige Details anzeigen

Product details

The 4 inch Touch LCD Shield for Arduino is a display module designed for Arduino development boards. It features a resistive touch screen for user interaction.

  • Product type: Arduino Nucleo Accessories
  • Compatibility: Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
  • Material: TFT
  • Onboard stand-alone touch controller
  • Color/Variant: RGB, 65K colors
  • Intended use: Development use
  • LCD Type: TFT LCD
  • Interface: SPI
  • LCD Controller: ILI9486
  • Touch Screen Type: Resistive
  • Touch Screen Controller: XPT2046
  • Resolution: 480x320 (Pixel)
  • Aspect Ratio: 8:5
  • I/O Voltage: 3.3V/5V
  • PWM backlight control
  • Micro SD slot
  • Controlled via SPI
  • Comes with STM32 and Arduino examples
