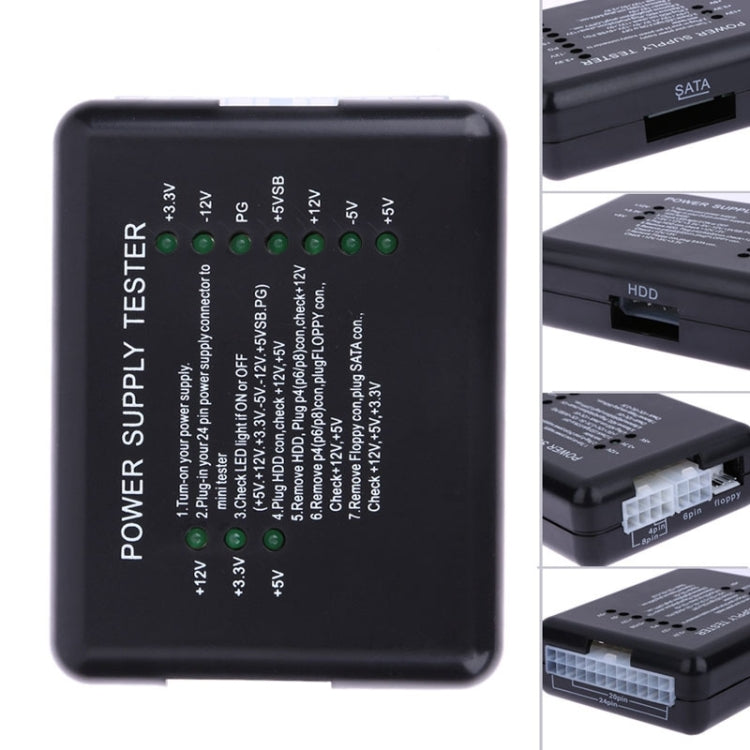

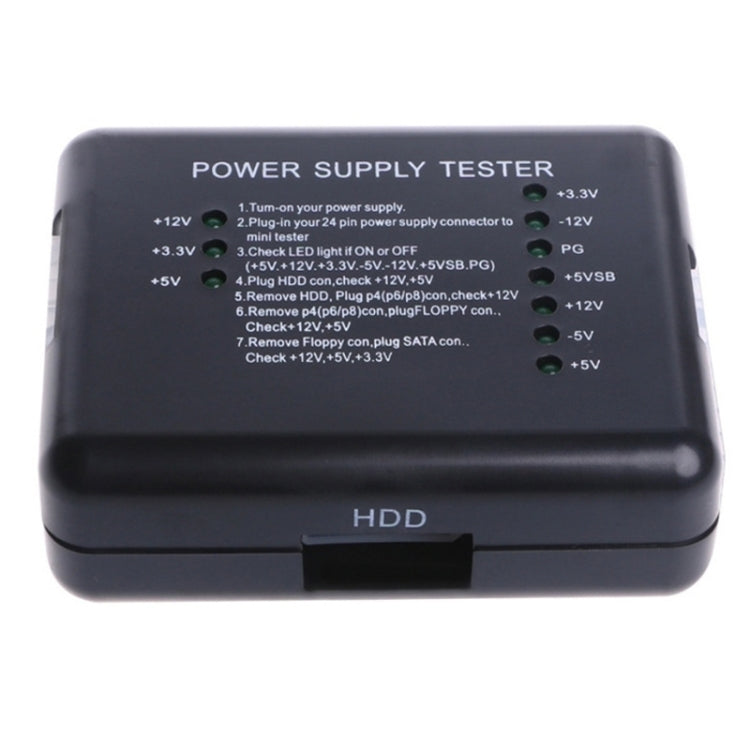

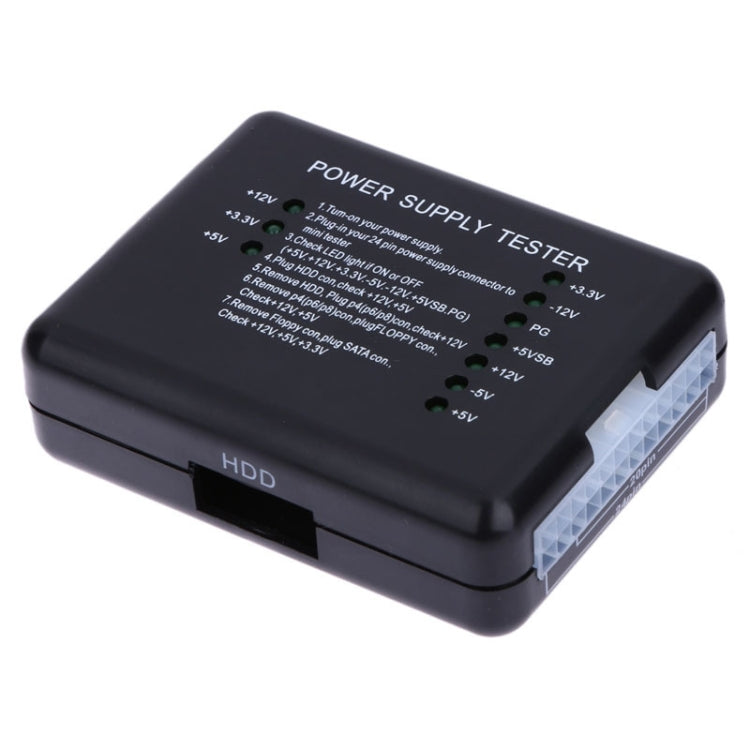

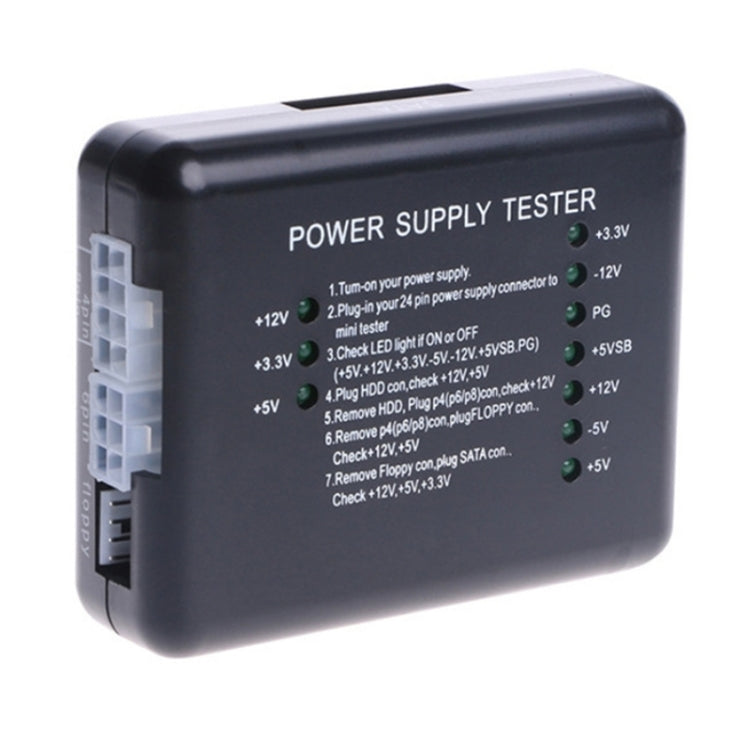

PC 20 / 24 Pin PSU ATX SATA HD Power Supply Tester
PC 20 / 24 Pin PSU ATX SATA HD Power Supply Tester
No reviews
Prix habituel
£7.50
Prix habituel
Prix promotionnel
£7.50
Frais d'expédition calculés à l'étape de paiement.
Free Shipping Tracked
Estimated delivery: Dec 2 - Dec 12
Quantité
Impossible de charger la disponibilité du service de retrait
✓ Your Purchase is Protected
Join 40,000+ happy customers who shop risk-free
Free Worldwide Shipping Tracked
Ships in 1-3 days • Save £8.99
6-Month Guarantee Protected
Manufacturing faults covered
30-Day Easy Returns Risk-Free
Changed your mind? Full refund
Secure Checkout SSL
Your payment info is protected
✓ 40,000+ customers trust us with their purchases

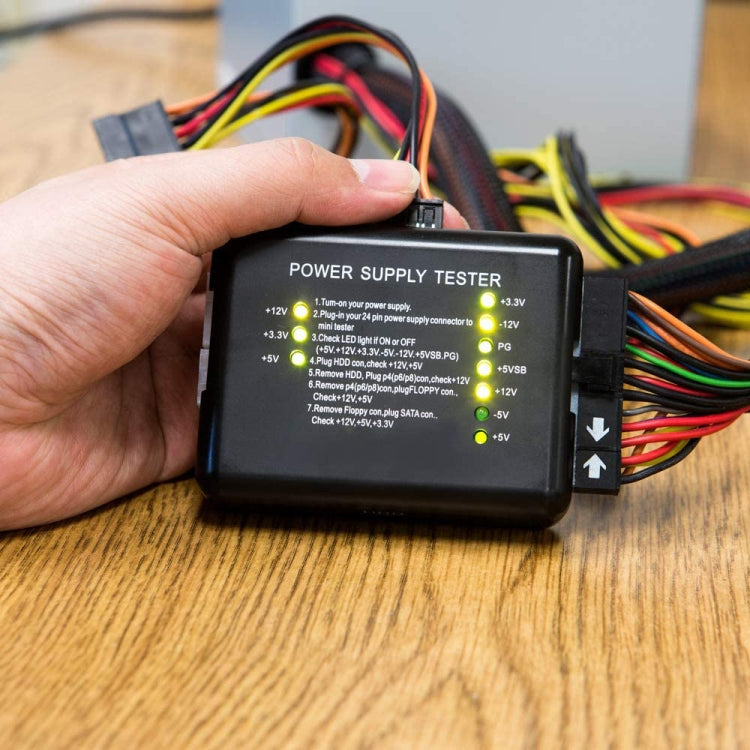

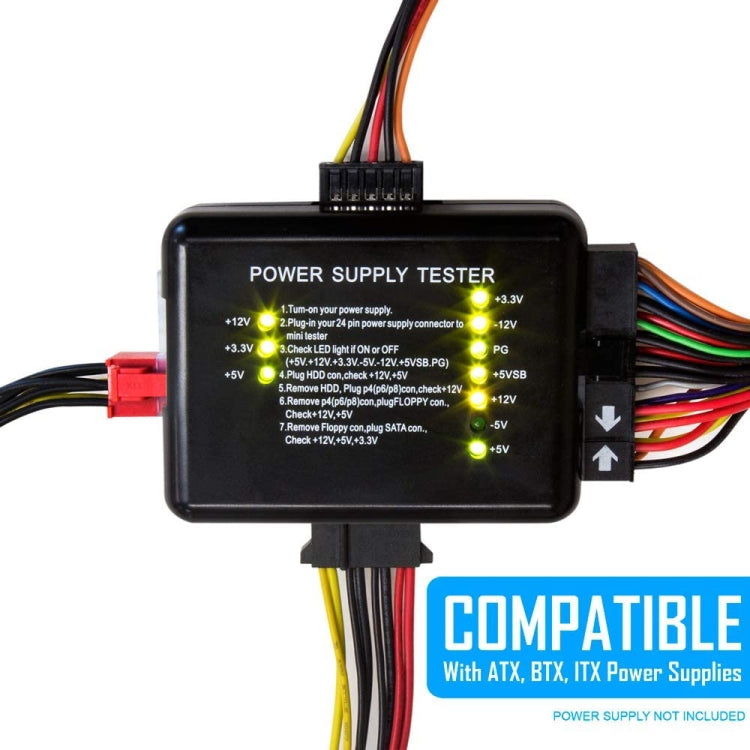

1) Turn-on your power supply
2) Plug-in your 24 pin power supply connector to mini tester
3) Check LED light if ON or OFF (+5V, +12V, +3.3V, -5V, -12V, +5VSB, PG)
4) Plug HDD con, check +12V, +5V
5) Remove HDD, plug p4(p6/p8)con, check +12V
6) Remove p4(p6/p8)con, plug FLOPPY con, check +12V, +5V
7) Remove Floppy con, plug SATA con, Check +12V, +5V, +3.3V
* Specification
1) Voltage source: 20/24pin(ATX-connector)
2) Voltage test: +12V, +12V, +5V, -5V, +3.3V, 5V Stand by (SB) 12V, power Good(PG)
3) Connectors: Floppy, HDD, CDROM, SATA, 4pin(P4), 8pin(Dual-CPU), 6pin(PCI-Express)
2) Plug-in your 24 pin power supply connector to mini tester
3) Check LED light if ON or OFF (+5V, +12V, +3.3V, -5V, -12V, +5VSB, PG)
4) Plug HDD con, check +12V, +5V
5) Remove HDD, plug p4(p6/p8)con, check +12V
6) Remove p4(p6/p8)con, plug FLOPPY con, check +12V, +5V
7) Remove Floppy con, plug SATA con, Check +12V, +5V, +3.3V
* Specification
1) Voltage source: 20/24pin(ATX-connector)
2) Voltage test: +12V, +12V, +5V, -5V, +3.3V, 5V Stand by (SB) 12V, power Good(PG)
3) Connectors: Floppy, HDD, CDROM, SATA, 4pin(P4), 8pin(Dual-CPU), 6pin(PCI-Express)
