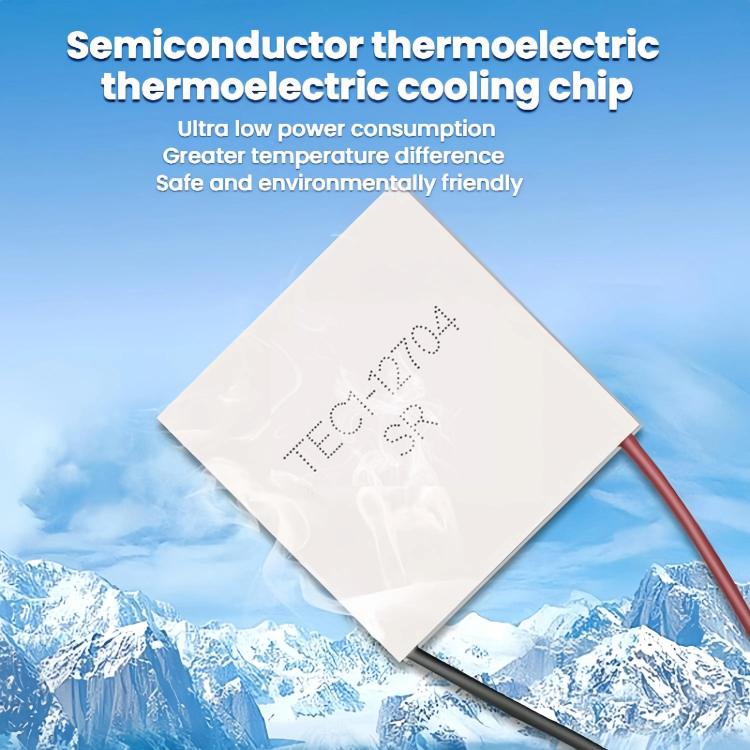

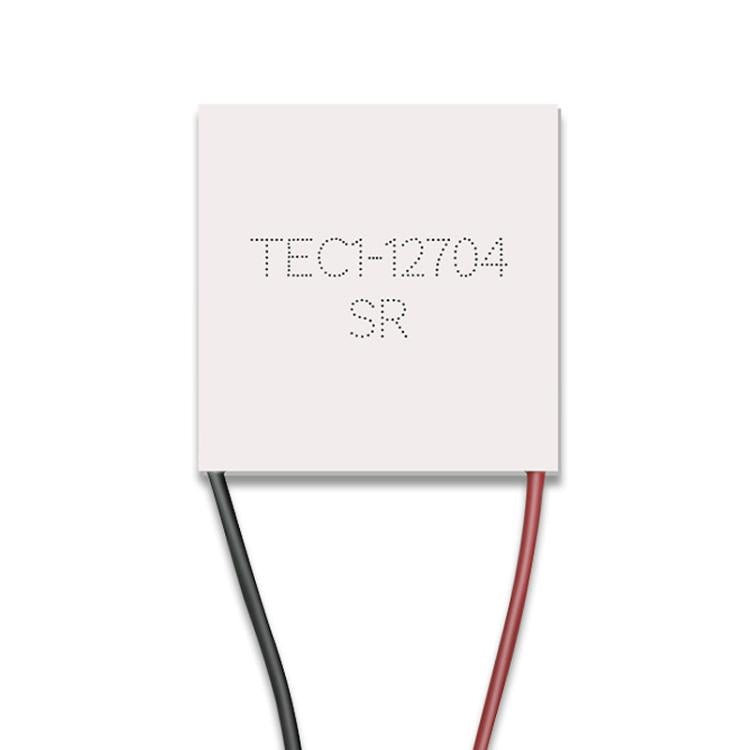

TEC1-12704 Refrigerator Dehumidifier Semiconductor Refrigeration Sheet is a semiconductor refrigeration component designed for cooling applications. It features a refrigeration capacity of 35W and operates within a temperature range of -55 to 83 degrees Celsius.
Product type: Refrigerator Parts
Compatibility: TEC1-12704
Material: Semiconductor
Refrigeration capacity: 35W (MAX)
Chip model: TEC1-12704 SR
Temperature difference: 65 degrees Celsius
Voltage: 15.8V (MAX)
Recommended voltage: 12V
Assembly pressure: 85N/cm2
Current: 4A (MAX)
Working environment: Temperature range -55~83 degrees Celsius
Packaging process: 704 silicone rubber seal or epoxy resin seal
Storage conditions ambient temperature -10~40 degrees Celsius

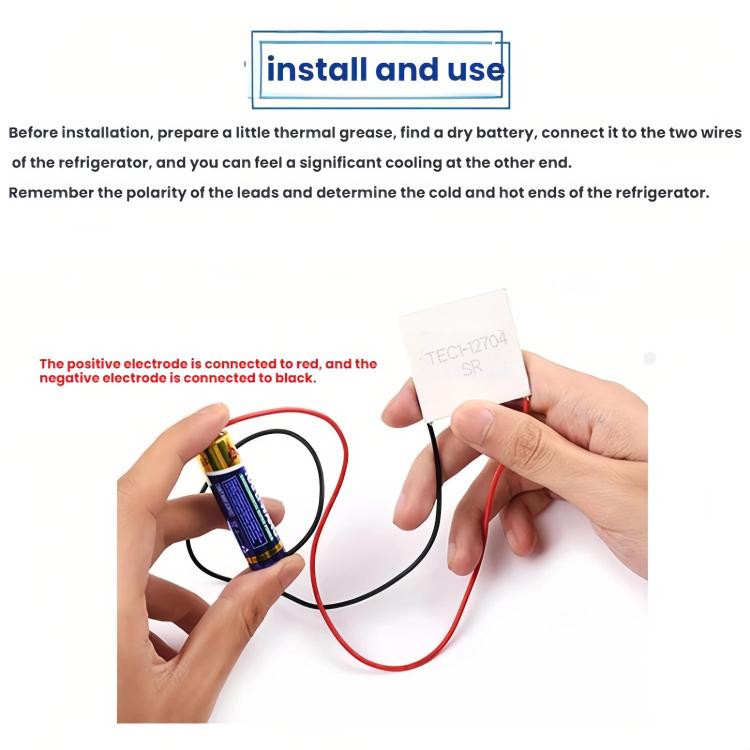

Device characteristics: red line positive electrode, black line negative electrode
Cooling effect when testing without heat dissipation
Power supply must be unplugged immediately within 1 second to avoid damage

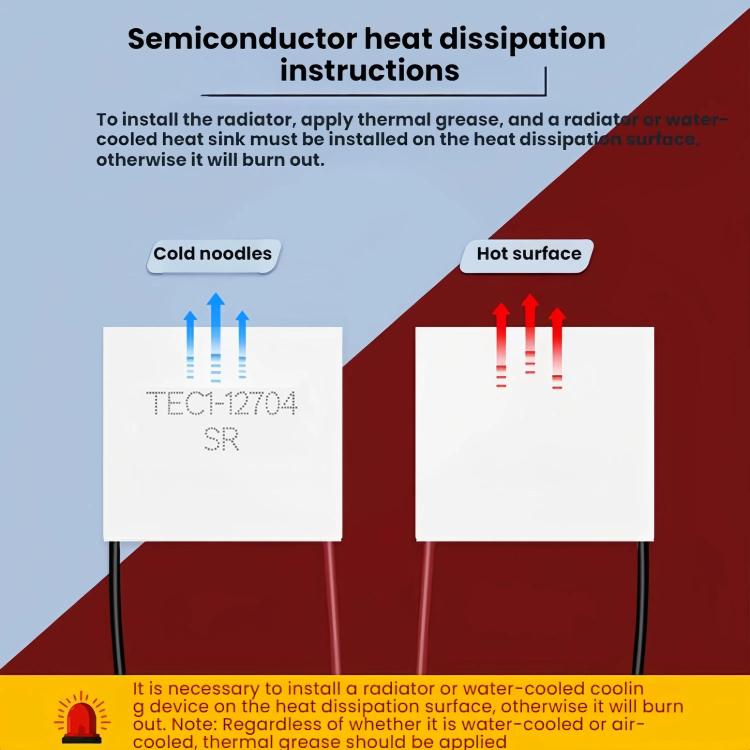

A radiator or water-cooled heat dissipation device must be installed on the heat dissipation surface
Thermal silicone grease must be applied for cooling
