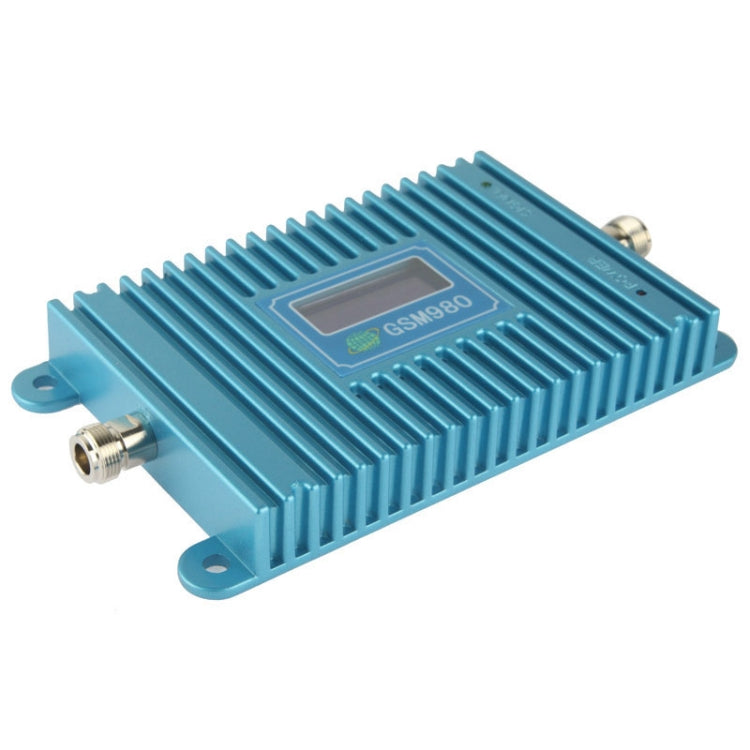

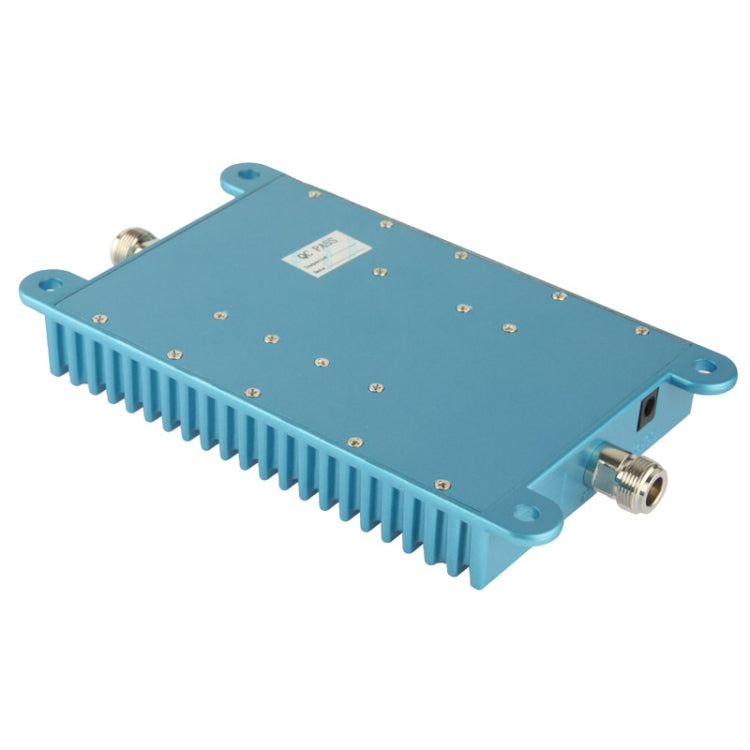

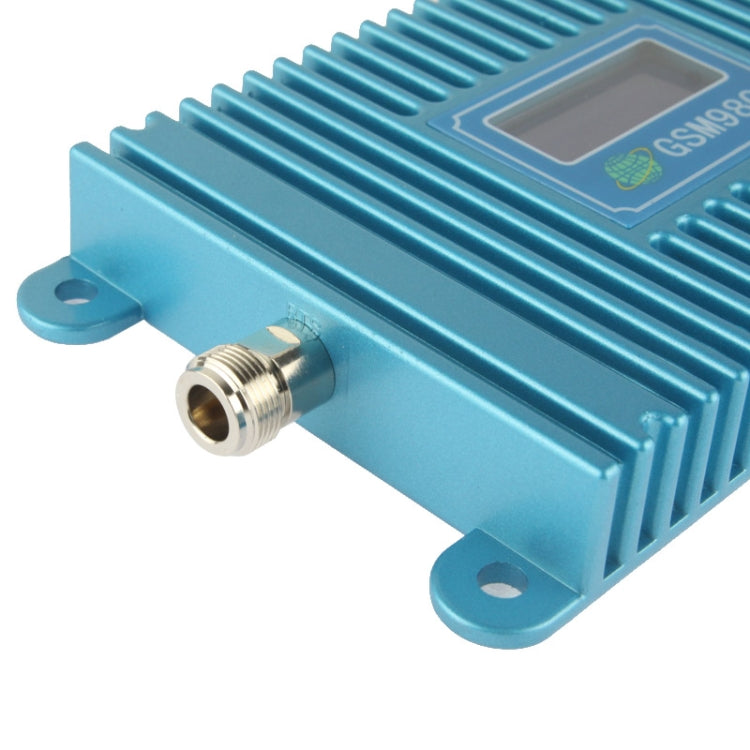

GSM 980 Cellular Phone Signal Repeater Booster + Antenna (JAX-GSM980)

The GSM 980 Cellular Phone Signal Repeater Booster amplifies cellular signals for improved reception. It is suitable for everyday use.

• Product type: Boosters
• Compatibility: GSM 980
• Frequency range: Up link GSM 890-915, Downlink GSM 825-960
• Gain (dB) GSM Up link: 55
• GSM downlink: 60
• Gain adjustable range: GSM950/ 50Db~55Db
• Output power (dBm): ≥27 / 30
• Pass band ripple GSM: 4dB
• Guard band rejection: GSM (BW-60dB) ≤42 MHz, (BW-70dB) ≤45 MHz
• I/O impedance: 50Ω
• I/O return loss: ≤-10dB
• Noise coefficient: ≤5dB
• Intermodulation attenuation (Po=13dBm): ≥40dBc
• Transmission delay: ≤0.5us
• Ambient temperature: -10℃～60℃
• Power supply: AC220V / DC 12V 45～55Hz
• Fully integrated 980 MHz antenna system
• Powerful amplifier enables up to +85 dB of signal gain including cable loss
• Intelligent signal processing and real time adaptive operation
• Automatically adjusts power levels as needed
• Reprogrammable in the field for spectrum or carrier reconfigurations

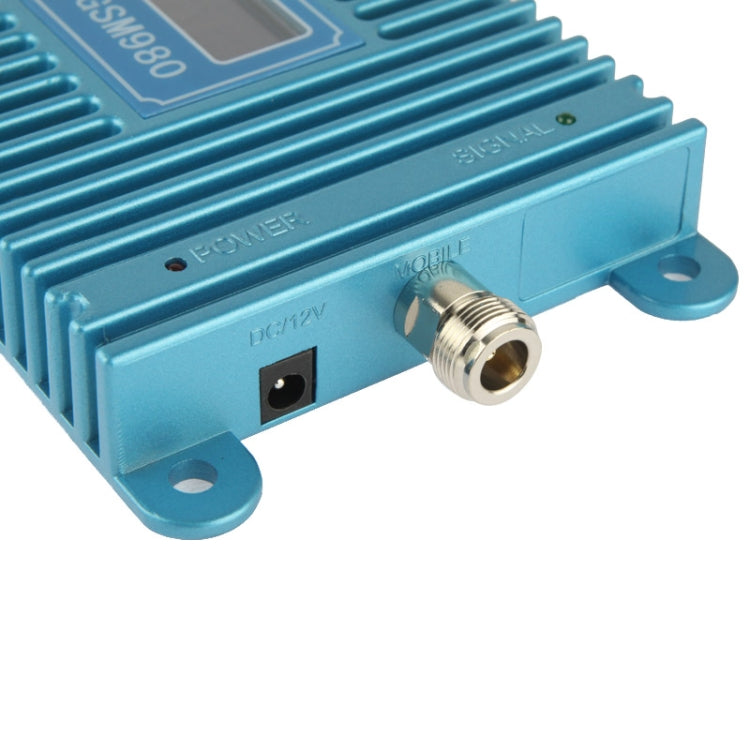

• Auto-track LED diagnostics displays

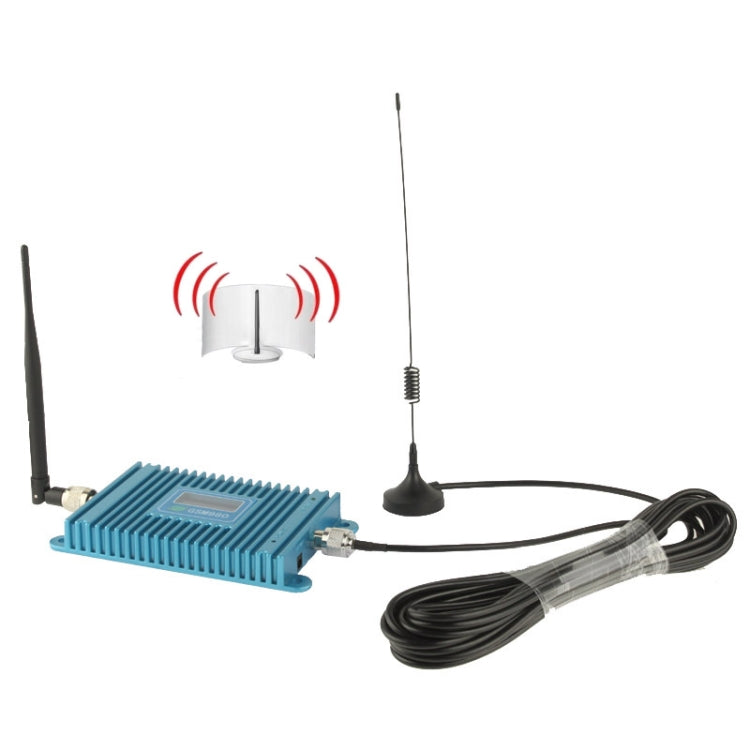

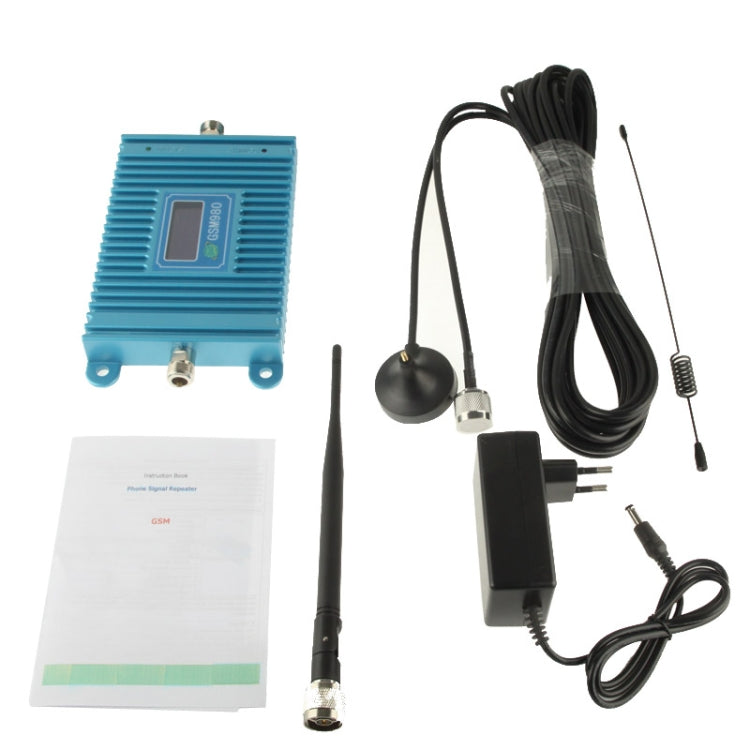

• Package includes: 55dB GSM cellular phone signal amplifier, 9dB outdoor antenna, 3dB indoor antenna, 10m cable, mounting accessories, AC power supply
