NOYAFA NF-5120 Wall Pipe Blockage Detector Pipe Blockage Detector For Iron/PVC/Cement/Steel Pipes

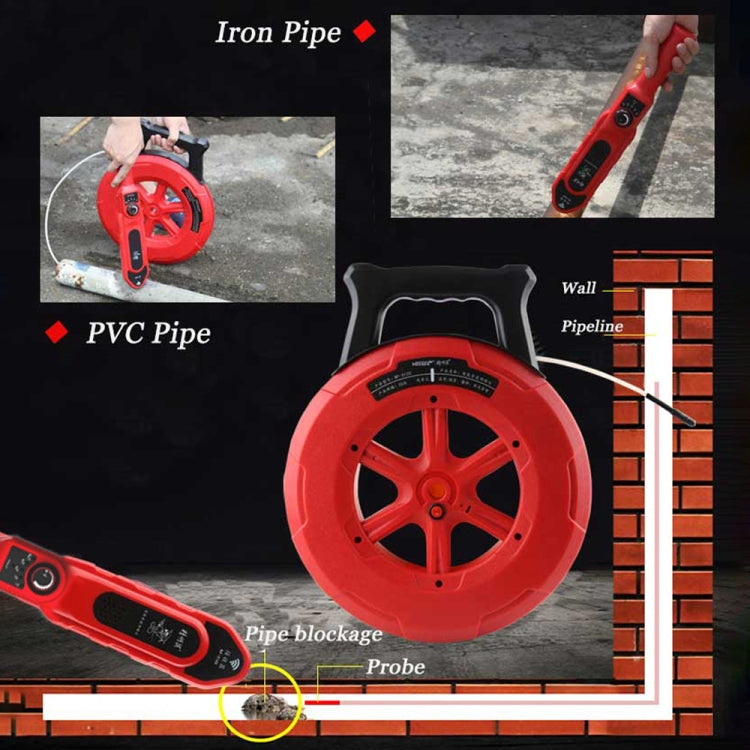

The NOYAFA NF-5120 Wall Pipe Blockage Detector detects blockages in various types of pipes. It utilizes electromagnetic wave detection technology for effective identification of blockages.

• Product type: Other Tester Tool
• Compatibility: Iron, PVC, Cement, Steel Pipes
• Material: Polymer, Lithium
• Key feature: Electromagnetic wave detection
• Transmitter cable length: 20 meters
• Scope of application: PVC pipe, cement pipe, plastic pipe, iron pipe, metal pipe, steel pipe, copper pipe
• Transmitter battery capacity: 18650 lithium battery 2600mAh
• Transmitter operating frequency: 300Hz
• Transmitter full power working time: about 10H
• Transmitter operating temperature: 10-40 degrees Celsius
• Transmitter size: about 30 x 36 x 4.5cm
• Transmitter weight: about 1500g
• Receiver sensitivity adjustment: Support
• Receiver sound alert: Support
• Receiver detection distance: non-metallic pipe: about 0-40cm; metal pipe: about 0-15cm
• Receiver battery capacity: lithium polymer battery 1400mAh
• Receiver operating frequency: 300Hz
• Receiver full power working time: about 5H
• Receiver operating temperature: 10-40 degrees Celsius
• Receiver storage temperature: 10-50 degrees Celsius
• Receiver size: about 6.5 x 36 x 4cm
• Transmitter probe emits electromagnetic waves
• Transmitter probe self-test function
• Strong signal penetration through concrete
• Charging indicator with green and red lights
• Can detect various materials
• Signal cable made of polymer material
• Waterproof probe, can be cut and replaced
• Automatic power off and low battery alarm function
• Non-slip handle for effective operation
• Sensitivity sensor head for precise detection
• Sensitivity signal indicator/adjustment key
• Loudspeaker with clear sound response
• Line tube contraction wheel for easy measurement
