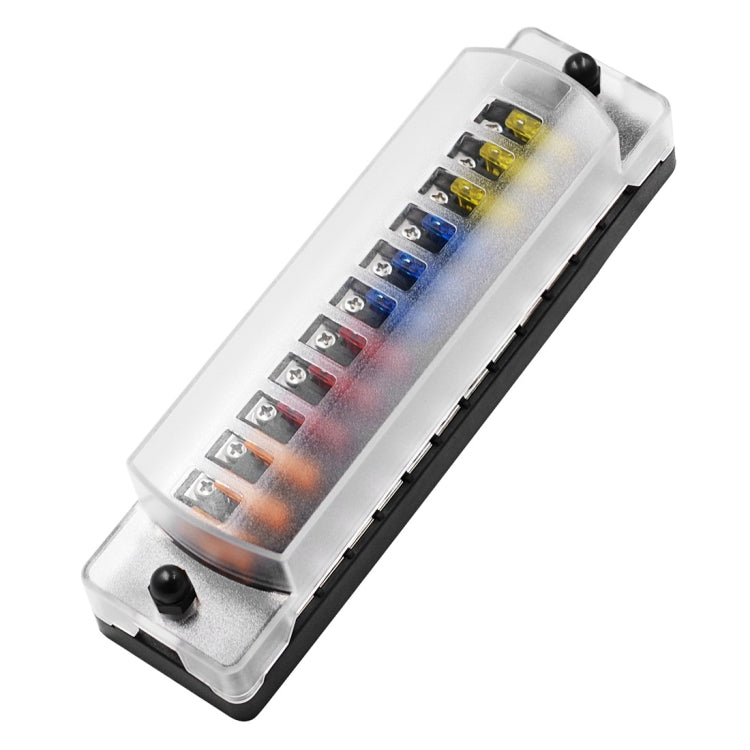

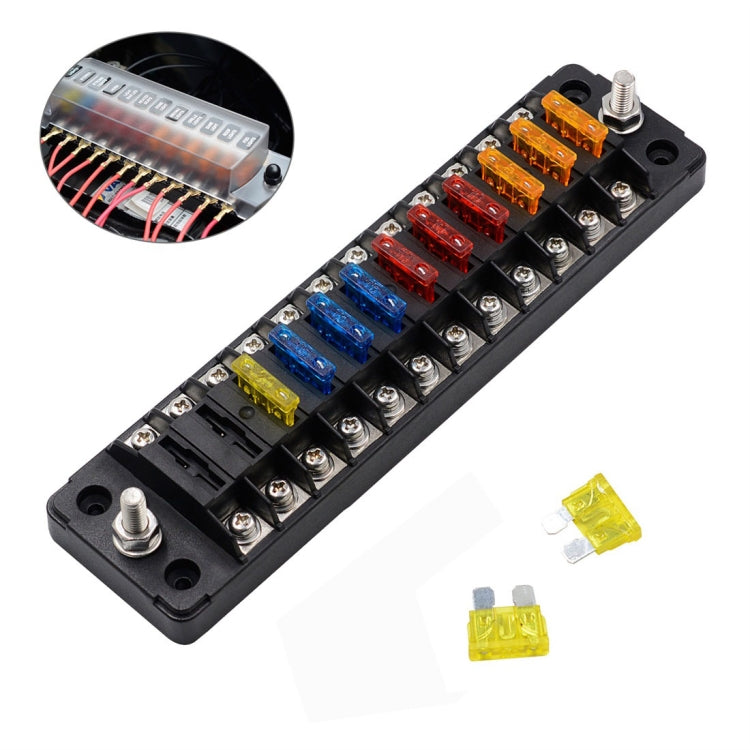

ZH-979A2 FB1904 1 In 1 Out 12 Ways Positive Negative Fuse Box with 24 Fuses for Auto Car Truck Boat

The ZH-979A2 FB1904 is a fuse box designed for automotive and marine applications. It protects electronic equipment from overcurrent by using ATO or ATC fuses ranging from 1A to 20A.

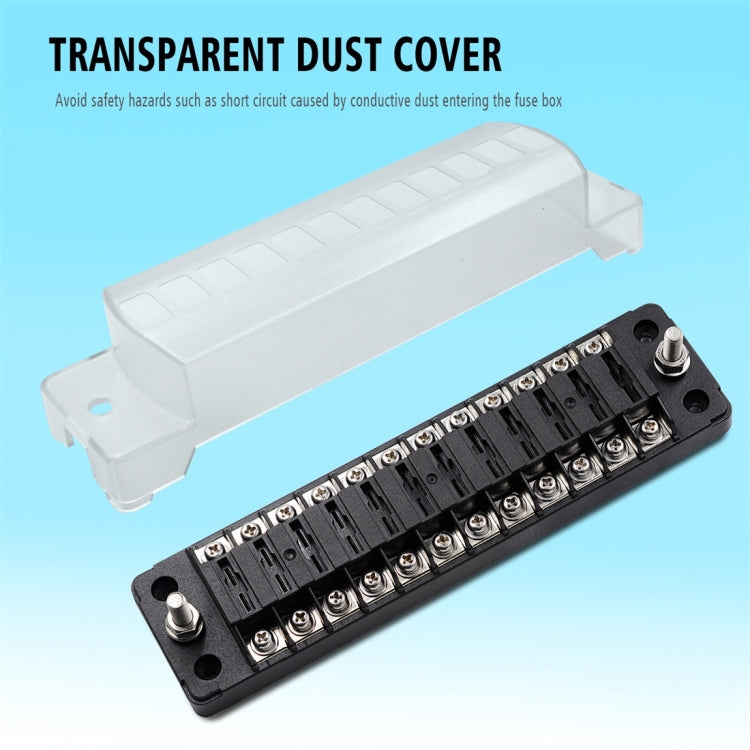

• Material: PA66 body, PC dust cover, nickel-plated copper terminal block, stainless steel screw, PPx70 sticker
• Input rated voltage: 32V
• Input rated current: 75A
• Maximum output current: 20A per circuit
• Single wire terminal: M4 threaded stud (20A 32V DC max)
• Wire specifications: #12-16AWG

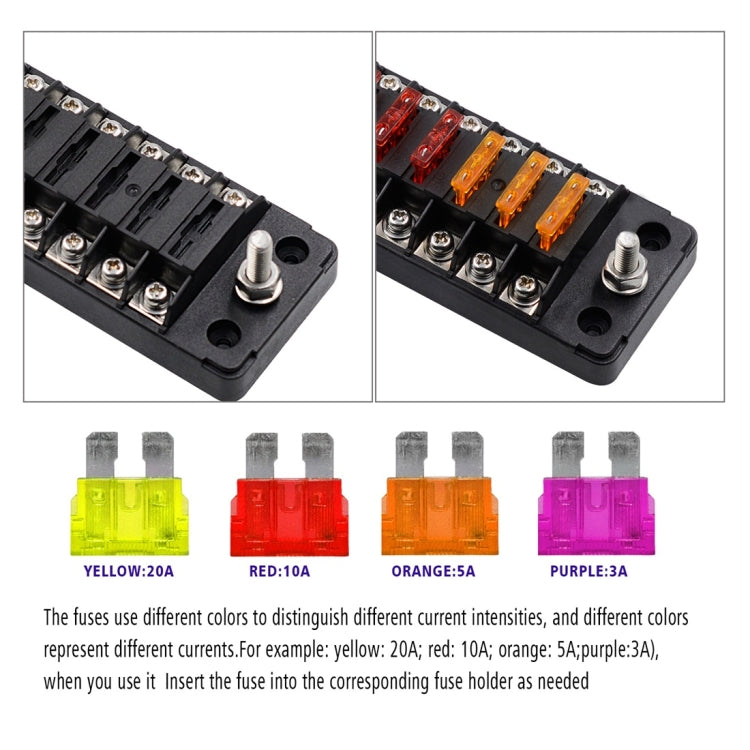

• Fuse Type: Accepts ATO or ATC fuses from 1A to 20A
• Installation scope: can be installed on cars, RVs, buses, yachts, boats, etc.

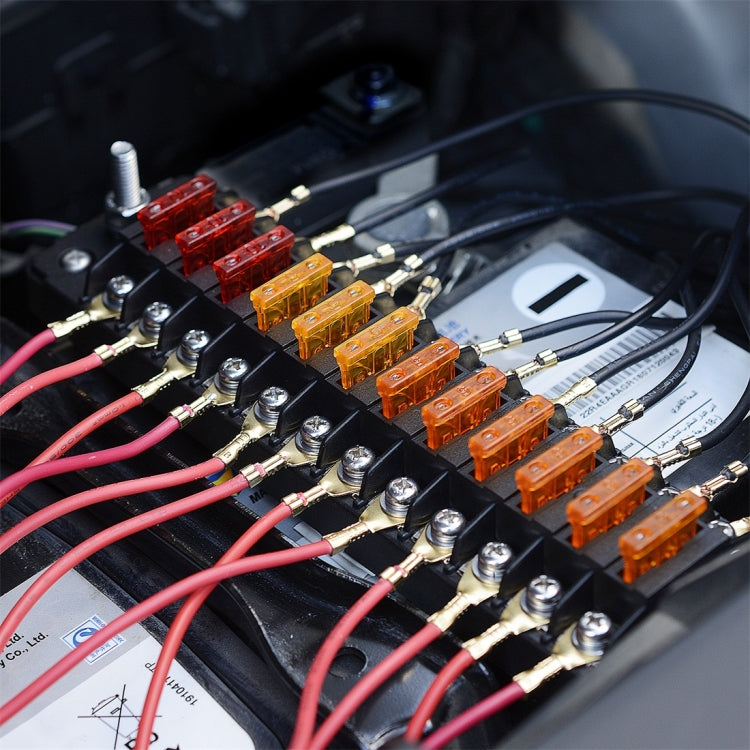

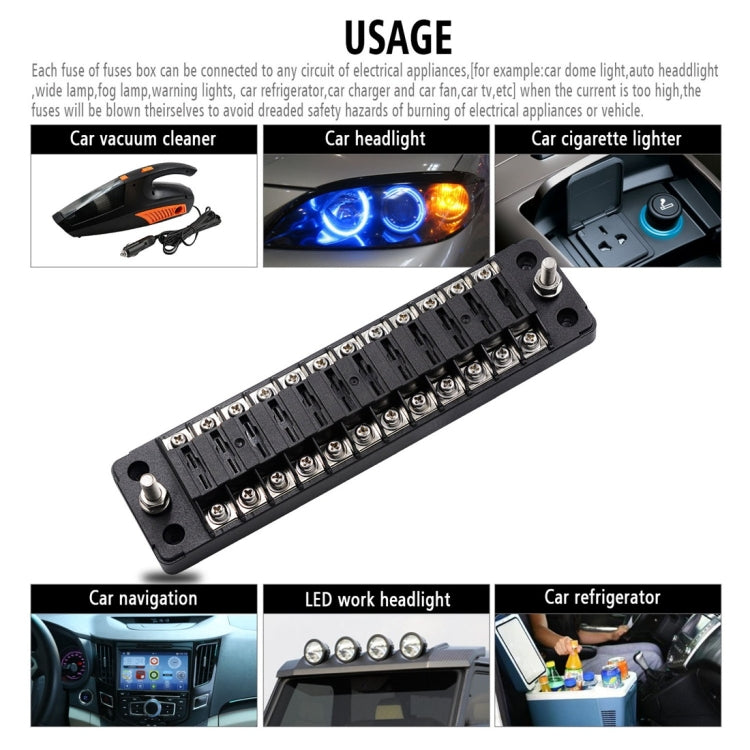

• Scope of use: connects to electrical appliances such as roof lights, headlights, fog lights, refrigerators, chargers, fans, TVs
• Fuses protect against overcurrent and prevent damage to components
• All fuse clips are nickel-plated copper for corrosion resistance
• All fasteners are stainless steel
• Fuse box is secured with tightening screws and self-tapping screws

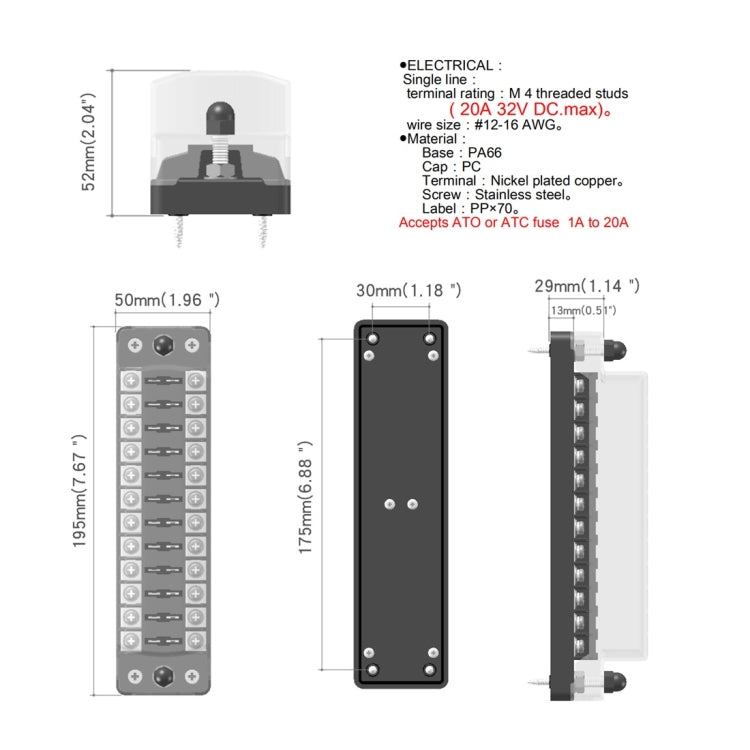

• Size: 195x50x52mm
• Net weight: 291G
