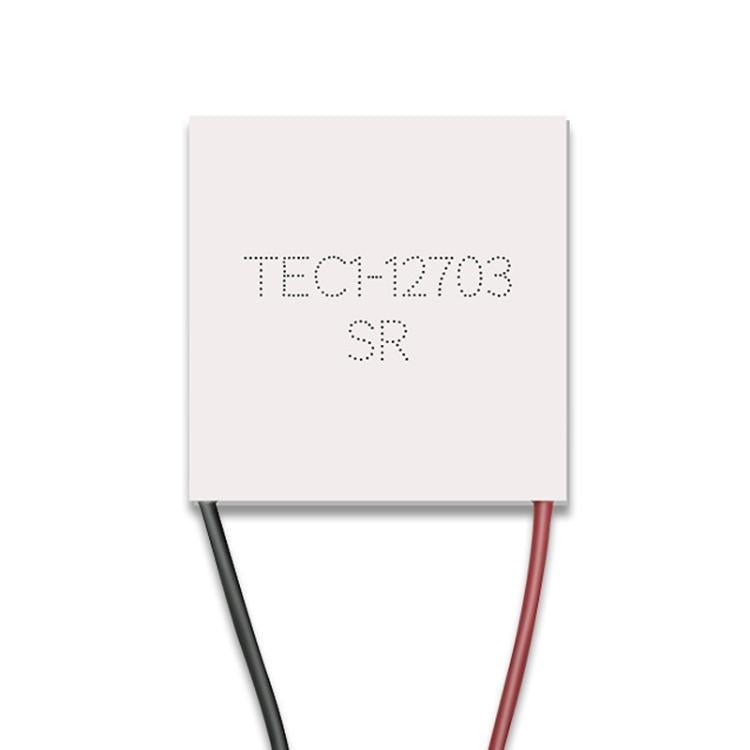

TES1-12703 30x30x4mm Small Power Refrigerator Refrigeration Plate
TES1-12703 30x30x4mm Small Power Refrigerator Refrigeration Plate
Duties & Import Tax
UK orders under £135 incur no additional fees. Otherwise, duties are only included if shown at checkout — your local government may apply customs fees, which your courier will collect directly from you before delivery.
Processed in 1–3 business days
Couldn't load pickup availability
UK: Free tracked shipping on every order, no minimum spend.
Everywhere else: Add the product to your cart and use the shipping calculator to see exact methods, rates, and delivery times for your country.
Fast refunds: Once we receive and inspect your return, your refund is processed to your original payment method within 5 business days.
Return postage: Just changed your mind? You'll need to cover the return postage. If the item arrived faulty, we'll cover the cost to get it back to us.
Product Details
TES1-12703 is a refrigeration plate designed for cooling applications. It is intended for everyday use in refrigeration systems.
- Product type: Refrigerator Parts
- Compatibility: TEC1-12712SR2
- Material: Silicone rubber
- Key feature: Designed for refrigeration
- Chip model: TEC1-12712SR
- Temperature difference: 65 degrees Celsius
- Voltage: 15.8V (MAX)
- Recommended voltage: 12V
- Assembly pressure: 85N/cm2
- Internal resistance value: 3.8~4.0 ohms (ambient temperature 23 degrees Celsius, 1KHZAc test)
- Current: 3A (MAX)
- Working environment: Temperature range -55~83 degrees Celsius
- Packaging process: 704 silicone rubber seal or epoxy resin seal
- Storage conditions ambient temperature -10~40 degrees Celsius

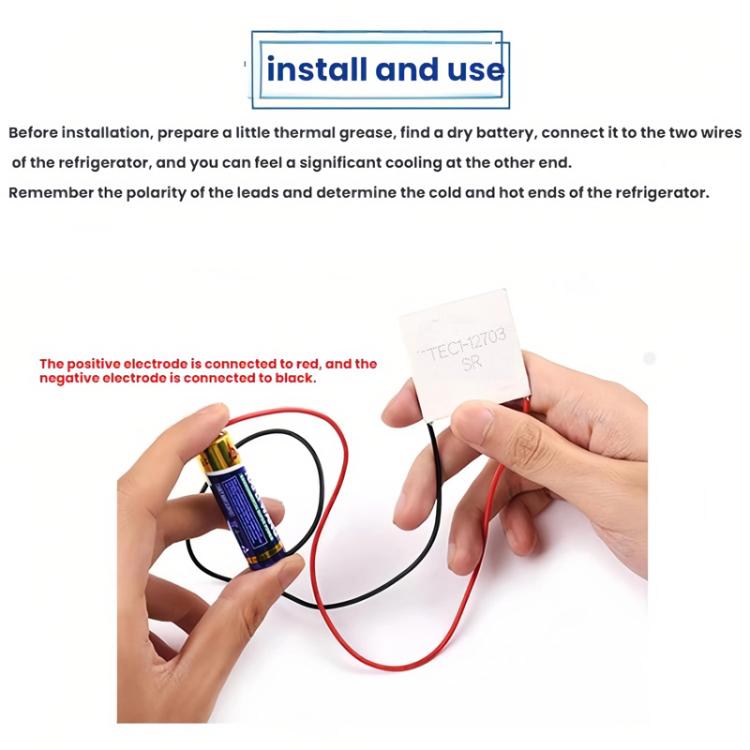

- Device characteristics: red line positive electrode, black line negative electrode
- Cooling effect when testing without heat dissipation
- Power supply should be unplugged immediately within 1 second to avoid burning

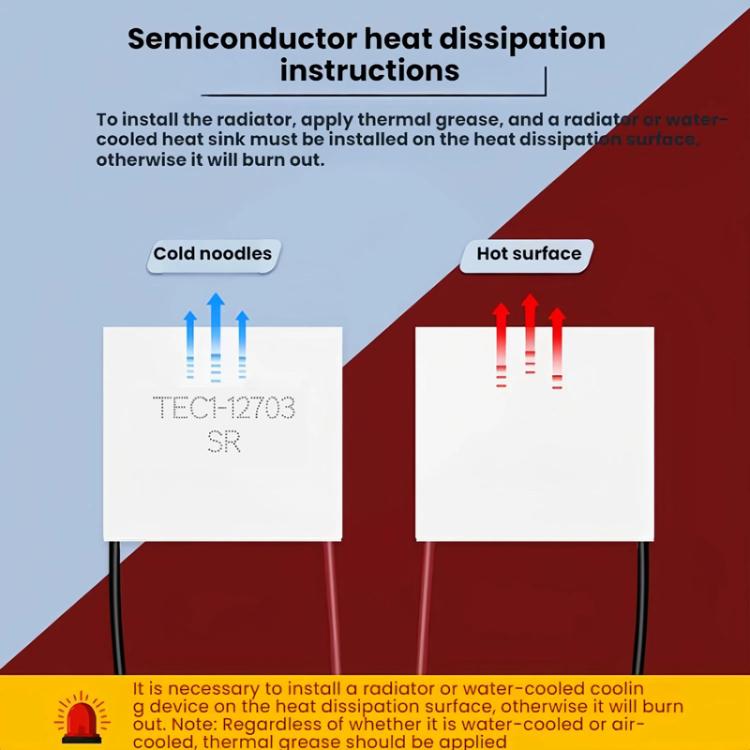

- A radiator or water-cooled heat dissipation device must be installed on the heat dissipation surface
- Thermal silicone grease must be applied for cooling
- Wire specification: lead length 200mm
- Dimensions: 30x30x4mm
